KFH 17-15 RT

Beveler for up to 5/8 [15] in[mm]

New
KFH 17-15 RT

KFH 17-15 RT

Beveler for up to 5/8 [15] in[mm]

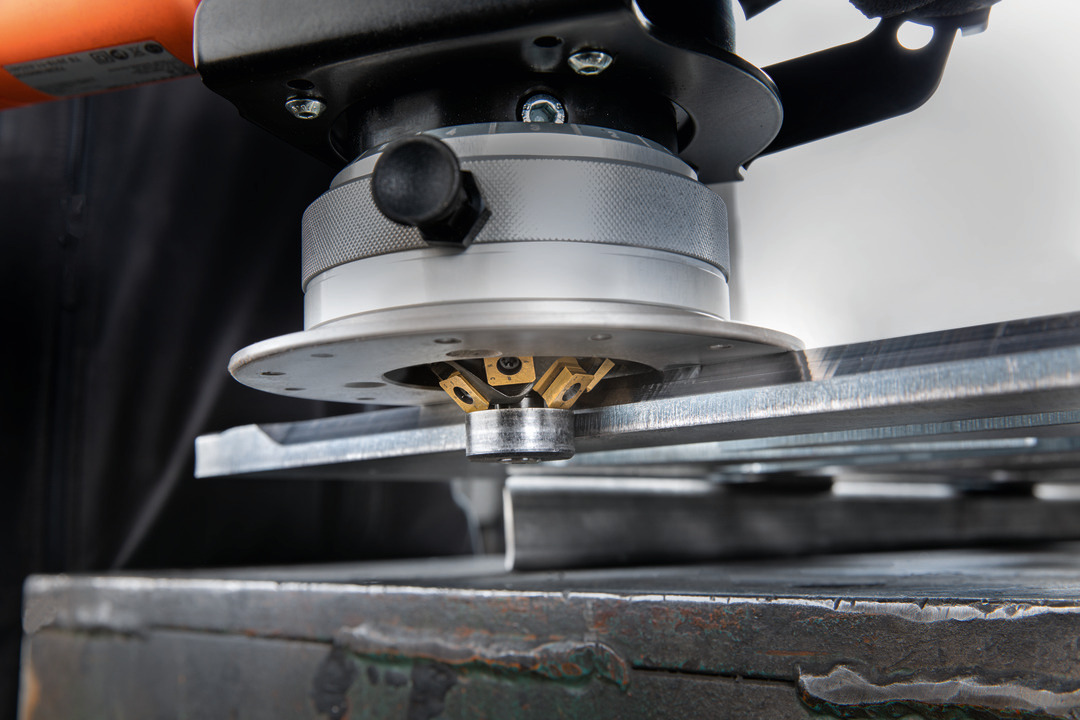

Beveler for universal use with booster and spring technology for optimal weld seam preparation.

Product number: 7 238 19 61 09 0

KFH 17-15 RT

Add to Shopping Cart

Details

  • Cutting output 30 - 80 percent higher and significantly reduced vibration with new booster technology.
  • Spring technology: Cushioning of rotation force yields increased occupational safety through low-vibration work.
  • FEIN ErgoGrip: Unique ergonomic concept with two-handed operation for low-fatigue work – patent pending.
  • Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection.
  • Efficient quick cutter change system for minimal interruptions.
  • High removal rate and low effort.
  • AutoStop dead man's switch

Technical data

Technical data
Power consumption
1,700 W
Power output
1,000 W
No load speed
2,300 - 7,500 rpm
Max. chamfer length at 45°
5/8 [15] in[mm]
Max. chamfer height at 45°
3/8 [10.6] in[mm]
Chamfer angle
30° / 45°
Radius
1/8 [3] in[mm]
Cutting head mounting
3x2 KX insert
Support plate Ø
5-3/8 [137] in[mm]
Cable with plug
13.1 [4] ft[m]
Weight according to EPTA
14.11 [6.40] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
90 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
101 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
104 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh, 3,7 m/s²
Vibration value 2 αhv 3-way
αh, 4,3 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²

Downloads


Price includes

  • 6 retaining screws
  • 1 copper paste
  • 1 allen key 5 mm
  • 1 Torx TX 15 screwdriver
  • 1 tool case

Application

Installation work
suitable
Chamfer length up to 1/4 [5] in[mm] at 45°
well suitable
Chamfer length up to 3/8 [8] in[mm] at 45°
well suitable
Chamfer length up to 5/8 [15] in[mm] at 45°
suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Soft-start
  • Self-start lock
  • Jam monitoring
  • Electronic overload protection
  • AutoStop dead man's switch
  • Speed preselection
  • Booster technology
  • Spring technology
  • Quick cutter change system
