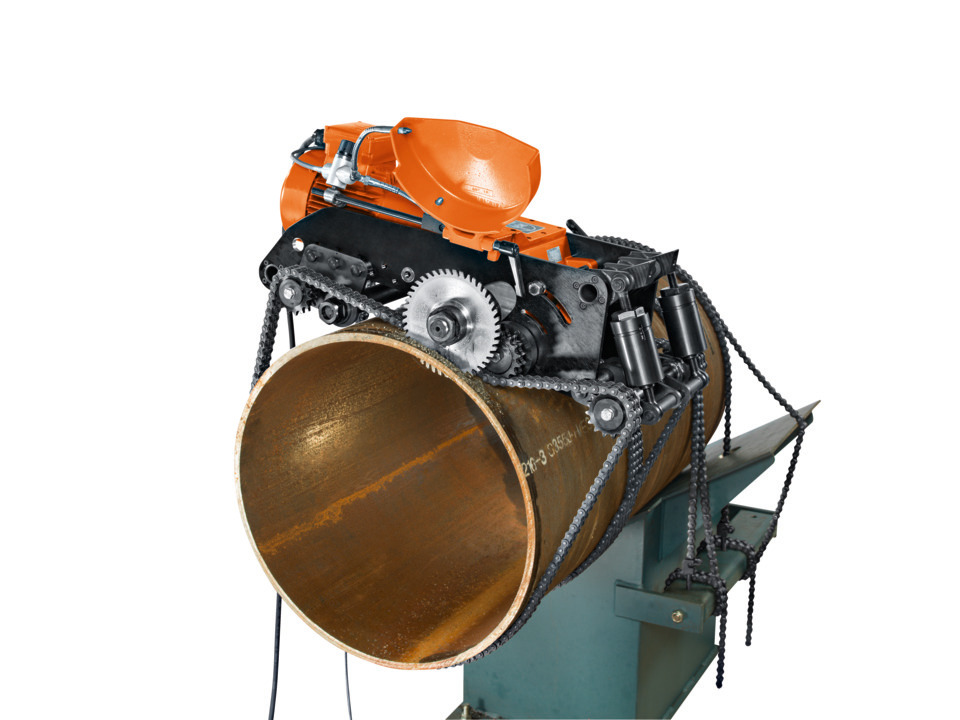

RSG EX 1500 B

Pipe milling cutter for pipes from dia. 10 [250] in[mm] to dia. 59 [1,500] in[mm]

RSG EX 1500 B

Pipe milling cutter for pipes from dia. 10 [250] in[mm] to dia. 59 [1,500] in[mm]

Powerful explosion-protected electrical pipe-milling machine with a feed rate of 3-1/8 [80] in/min[mm/min] for pipes up to dia. 59 [1,500] in[mm].

Product number: 7 360 15 61 00 0

Variants

Sawing of steel and gray cast iron water pipes up to a wall thickness of 7/8 [22] in[mm].
Cutting of gray cast iron water pipes up to a wall thickness of 9/16 [15] in[mm].
Explosion- and moisture-proof 3-phase motor with explosion-protected auxiliary switch.
Use in extreme climatic conditions possible (104[+40] °F[°C] to -4[-20] °F[°C]).
The optionally available guide chain guarantees straight cuts without offset.
Simple setup/shortened side plates ensure less space is required around the machine. In addition, weight optimization means that only two persons are required to set up the machine.
Horizontal and vertical dividing without extra investment.
The feed movement can be switched on and off.
Tool works independently.

Current/Voltage

400 V

Power output

1,500 W

Frequency

50 Hz

Motor no-load speed

2,860

Tool no-load speed

Advance

3.15 [80] mm in[mm] /min

protection class

Cable with plug

131.2 [40] ft[m]

Weight

176.37 [80] lbs[kg]

Product datasheet

PDF 165,64 KB

Manual instruction

PDF 50,47 MB

Pipe cutting up to dia. 59 [1,500] in[mm]

Temperature range permanently below 0 °C

Sawing of cast pipes up to a wall thickness of 7/8 [22] in[mm]

Cutting of cast pipes with a wall thickness up to 9-16 [15] in[mm]

Vertical cuts

suitable

well suitable
