RDG, 18-3a

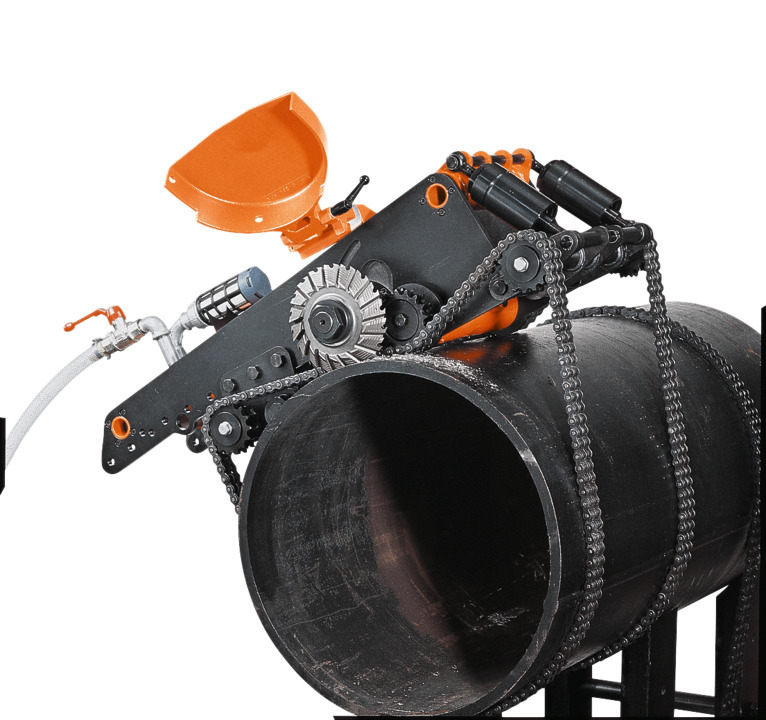

Pipe milling cutter for pipes from dia. 10[250] in[mm] to dia. 118 [3,000] in[mm]

RDG, 18-3a

Pipe milling cutter for pipes from dia. 10[250] in[mm] to dia. 118 [3,000] in[mm]

Powerful compressed air pipe-milling machine with a feed rate of 1-9/16 [40] in/min[mm/min] for pipes up to dia. 118 [3,000] in[mm].

Product number: 7 560 23 00 00 9

Variants

Sawing of steel and gray cast iron oil, gas, and water pipes up to a wall thickness of 1-3/4[45] in[mm].
Milling of steel and gray cast iron oil, gas, and water pipes up to a wall thickness of 1-3/16 [30] in[mm] (with 2x circulation).
Motor drive parts in stainless construction. The pneumatic motor’s vents are resistant to swelling.
Operation in low water possible after test.
Easy setup.
Tool works independently.

Operating pressure

87 [6] psi[bar]

Air consumption

152 [4.3] cfm[m³/min]

Power output

2,000 W

Motor no-load speed

6,000 rpm

Tool no-load speed

35 rpm

Advance

2 [40] mm in[mm] /min

Weight

196 [89] lbs[kg]

Product datasheet

PDF 150,36 KB

Manual instruction

PDF 3,41 MB

Pipe cutting up to dia. 118 [3,000] in[mm]

Temperature range permanently below 0 °C

Sawing of steel pipes with a wall thickness up to 1-3/4 [45] in[mm]

Sawing of cast pipes up to a wall thickness of 7/8 [22] in[mm]

Cutting of steel pipes up to a wall thickness of 1-3/16 [30] in[mm]

Cutting of cast pipes with a wall thickness up to 9-16 [15] in[mm]

Use in wet areas

suitable

well suitable
