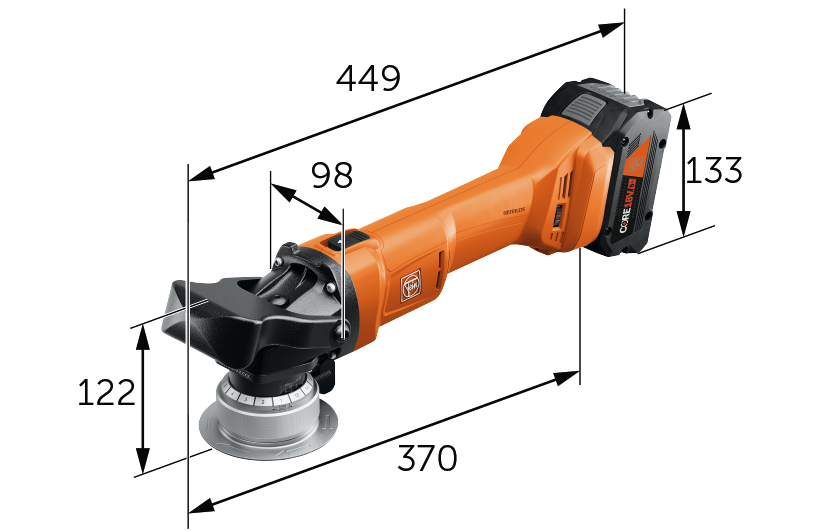

AKFH 18-5T CORE 18 V Beveler AS
Cordless beveler up to 3/16'' with accessory set
AKFH 18-5T CORE 18 V Beveler AS
Cordless beveler up to 3/16'' with accessory set
Powerful cordless beveler combined with the perfect accessories for creating a 45° bevel. For the preparation of subsequent coatings for flexible work in the workshop and on construction sites. Includes one CORE 18 V 8 Ah AS battery and one GAL 18V-160 AS charger.
Product number: 7 138 05 62 09 0
Details
- Unpack the tool and get started: The set is designed for making bevels on flat materials, sheet metal and containers, inner and outer edges, and contours.
- High removal rate, low effort, and infinitely variable speed adjustment for different materials.
- Ergonomic due to its light weight and compact design.
- Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection.
- FEIN brushless PowerDrive motor for high performance and durability.
- Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection.
- Compatible with all CORE 18 V AMPShare batteries and chargers, for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless tools.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
- CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.
- Easily transported with our stackable L-BOXX system.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
No load speed
2,400 - 7,500
Max. chamfer length at 45°
3/16 [5] in[mm]
Max. chamfer height at 45°
1/8 [3.5] in[mm]
Chamfer angle
45°
Cutting head mounting
3x SX insert
Support plate Ø
3-7/8 [98] in[mm]
Weight without battery
5.56 [2.52] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
85 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
96 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
100 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
3,1 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
4,5 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads

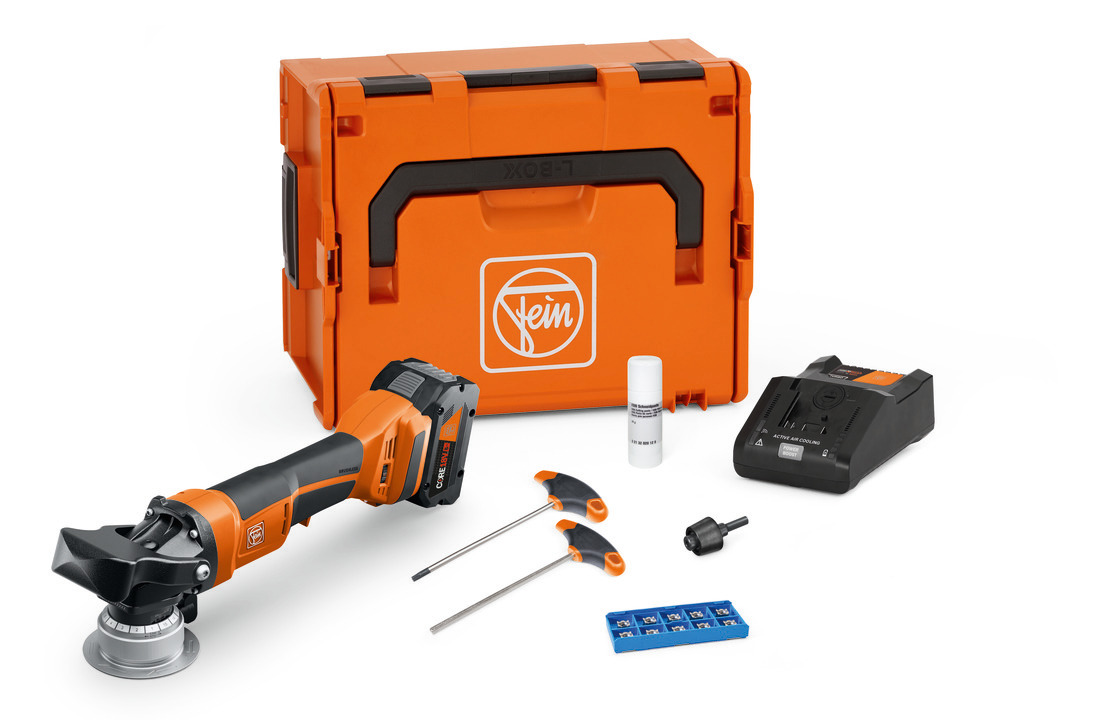

Price includes
- 1 AKFH 18-5 AS including 45° milling head
- 3 retaining screws SX
- 1 Allen key 4 mm
- 1 Torx TX 15 screwdriver
- 1 cutting paste
- 1 package of 10 SX bevel inserts for universal application
- 1 Ø 21.69 mm guide roller for 45° bevel and 2.5 mm radius
- 1 CORE 18 V 8.0 Ah battery pack
- 1 GAL18 V-160 AS rapid charger
- 1 plastic carrying case (L-BOXX 238)
Application
Product feature
- Soft-start
- Restart protection
- Jam monitoring
- Electronic overload protection
- Speed preselection
