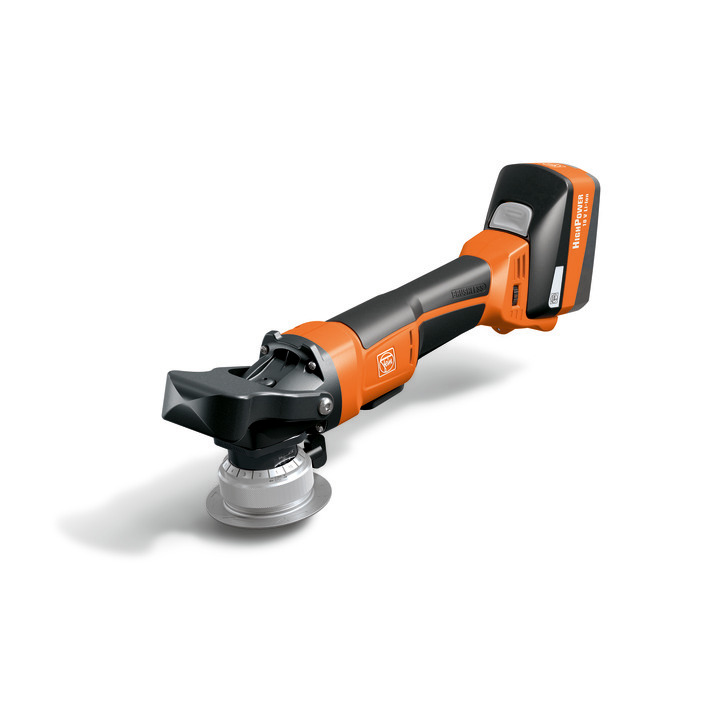

AKFH 18-5 T
Cordless beveler up to 3/16 in
AKFH 18-5 T
Cordless beveler up to 3/16 in
Powerful cordless beveling machine for the optimal preparation of downstream coatings for flexible work in workshops and on construction sites.
Product number: 7 138 02 62 09 0
Details
- To create bevels and radii on flat materials, sheet metal, and containers, on inner and outer edges, contours and for rounding drilled holes.
- High removal rate, low effort, and infinitely variable speed adjustment for different materials.
- Ergonomic due to its light weight and compact design.
- FEIN brushless PowerDrive motor for high performance and durability.
- Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection.
- AutoStop dead man's switch
- Maximum cutting speed with FEIN HighPower Li-ion batteries. High-current cells with continuously high current output and 75% higher amperage than Li-ion batteries.
- ** Highest performance with FEIN HighPower Li-ion battery.
Technical data
Technical data
Battery voltage
18 V
Battery capacity
5.2 Ah
Battery compatibility
Li-ion / HighPower Li-ions**
Battery interface
18 V
No load speed
2,400 - 7,500
Max. chamfer length at 45°
3/16 [5] in[mm]
Max. chamfer height at 45°
1/8 [3.5] in[mm]
Chamfer angle
45°
Radius
3/64, 3/32 [1.2, 2.5] in[mm]

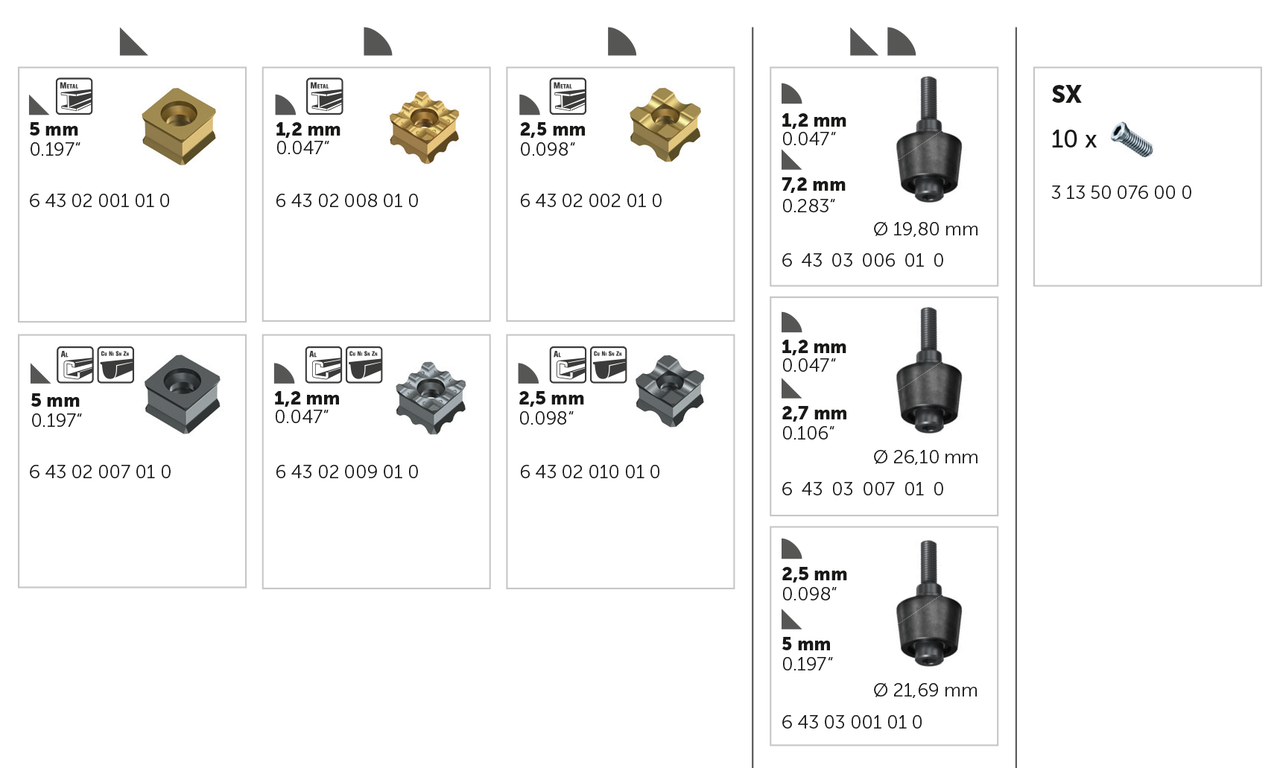

Cutting head mounting
3x SX insert
Support plate Ø
3-7/8 [98] in[mm]
Weight incl. battery
7.05 [3.20] lbs[kg]
Weight without battery
5.29 [2.40] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
85 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
96 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
100 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh, 4,0 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
αh, 4,6 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 tool incl. 45 milling head (without guide roller, without inserts)
- 2 High-power Li-ion battery packs (18 V / 5.2 Ah)
- 1 rapid charger ALG 80
- 3 retaining screws SX
- 1 copper paste
- 1 Allen key 4 mm
- 1 Torx TX 15 screwdriver
- 1 tool case
Application
Product feature
- Soft-start
- Restart protection
- Jam monitoring
- Electronic overload protection
- AutoStop dead man's switch
- Speed preselection
