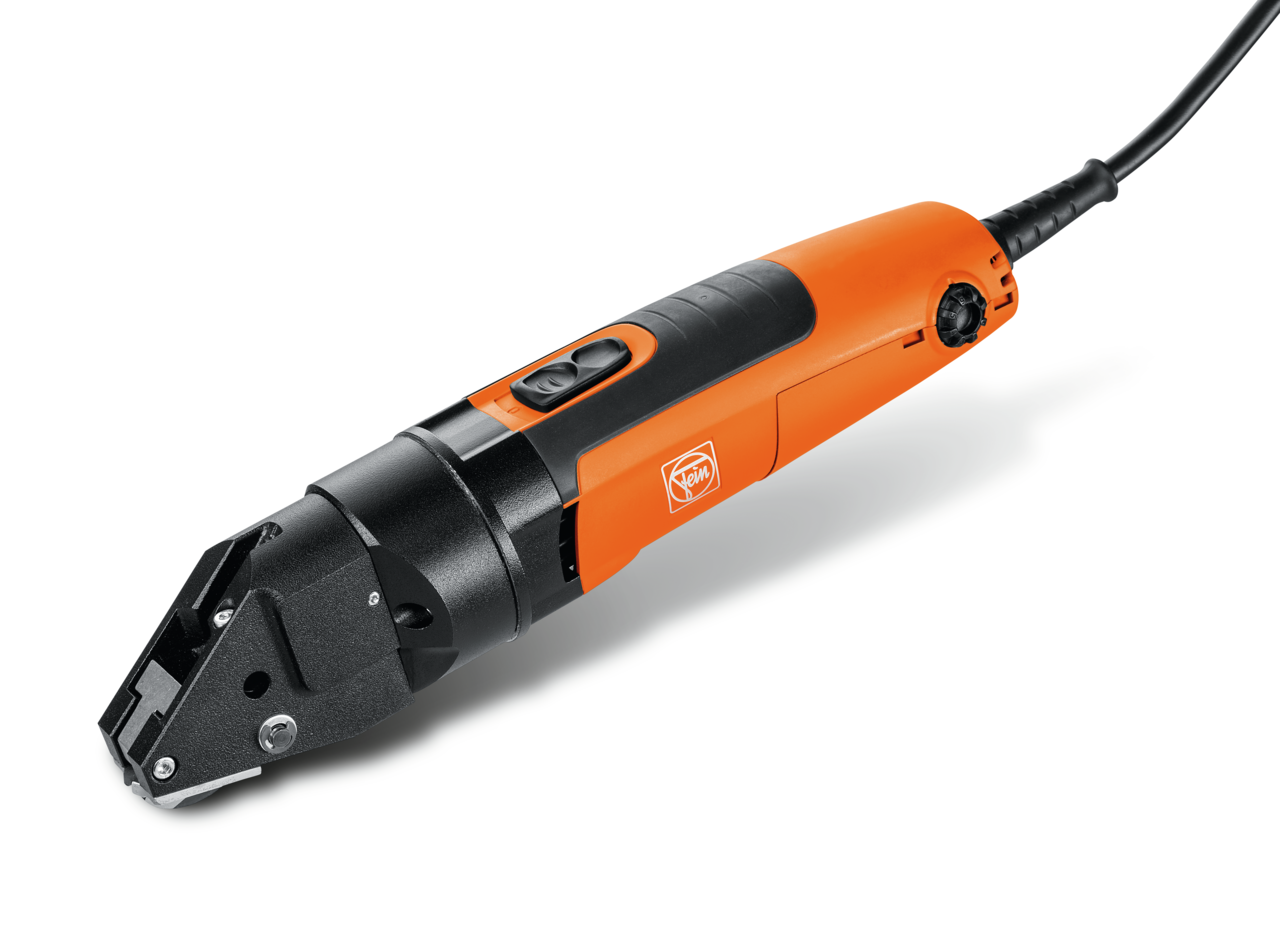

BSS 2.0 E
Slitting shears, up to 2 mm
BSS 2.0 E
Slitting shears, up to 2 mm
Powerful slitting shears for stainless steel processing, spiral seam pipes and profiles.
Product number: 7 230 33 61 00 0
Details
- High-strength blades make it ideal for reinforcement profiles in drywall construction and cutting stainless steel.
- Robust cutting head for stationary application. Machine can be very easily clamped in a vice.
- Left and right curve cuts and distortion-free cutting possible with just one continuous chip.

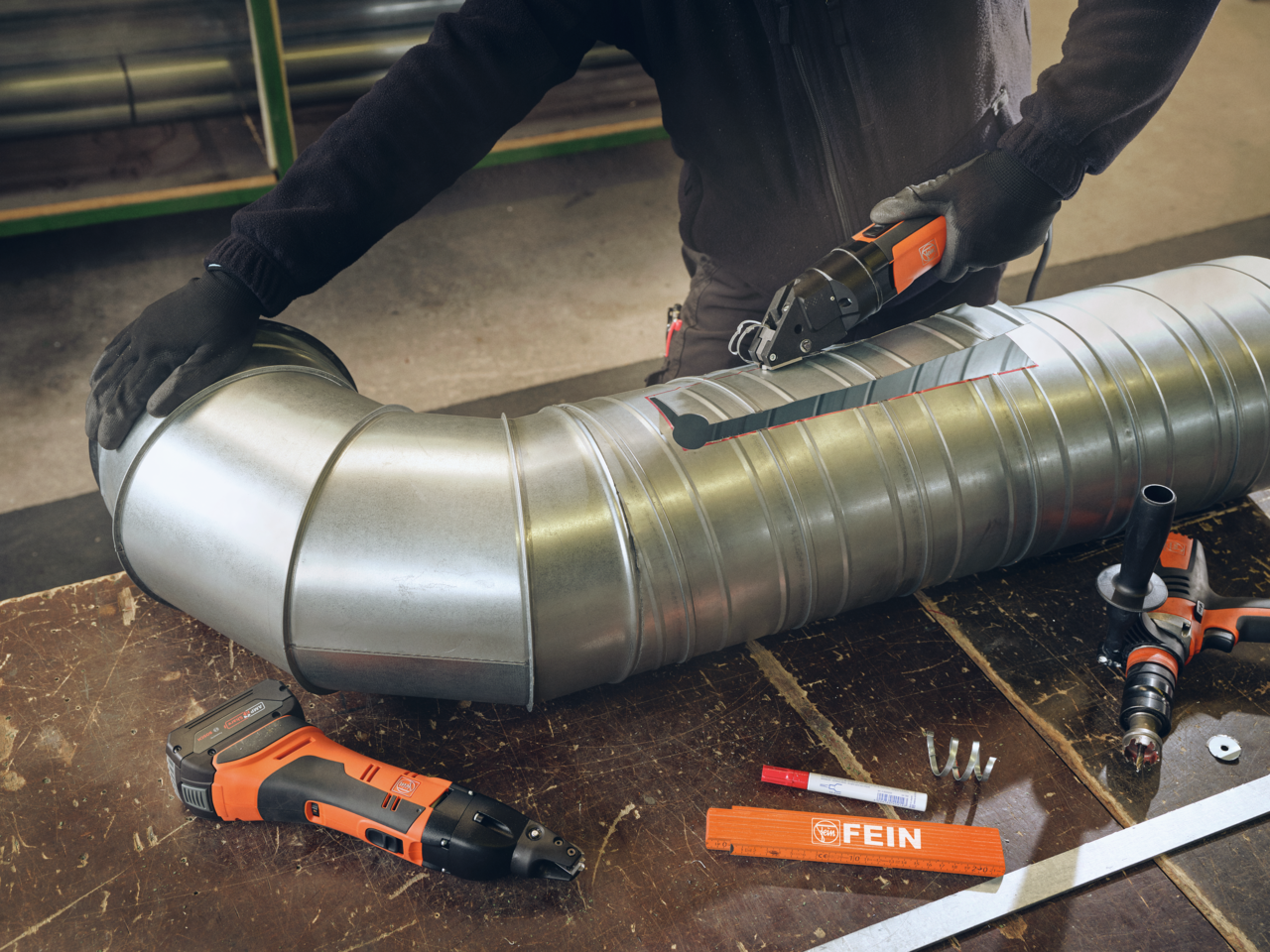

- High performance and powerful motor when it comes to the most difficult tasks. Suitable for folded spiral-seam pipes with 4 x 0.75 mm connecting folds
- Ideal for trimming profiled sections.
- Best suited for trimming and cutting.
- Motor with outstanding performance and stability.
- Cutting blade with excellent tool life.
- 5 metre cable.
- Clean swarf removal prevents injuries or scratches on workpieces.
- Stainless steel up to 1.5 mm.
- Wide range of accessories.
Technical data
Technical data
Input
350 W
Output
210 W
Strokes
1,300 - 2,600 rpm
Cutting speed
2 - 4 m/min
Steel up to 400 N/mm²
2 mm
Steel up to 600 N/mm²
1.5 mm
Steel up to 800 N/mm²
1.3 mm
Non-ferrous metals up to 250 N/mm²
3 mm
Cutting width
5 mm
Rad. of smallest curve
245 mm
Immersion Ø
12 mm
Cable with plug
5 m
Weight according to EPTA
1.70 kg
Vibration and sound emission values
Sound pressure level LpA
76,2 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
87,2 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
91 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
10,8 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 cutter blade (31308123008) fitted
- 1 pair of cutting jaws (31308113009) fitted
Application
Product feature
- Adjustable stroke
