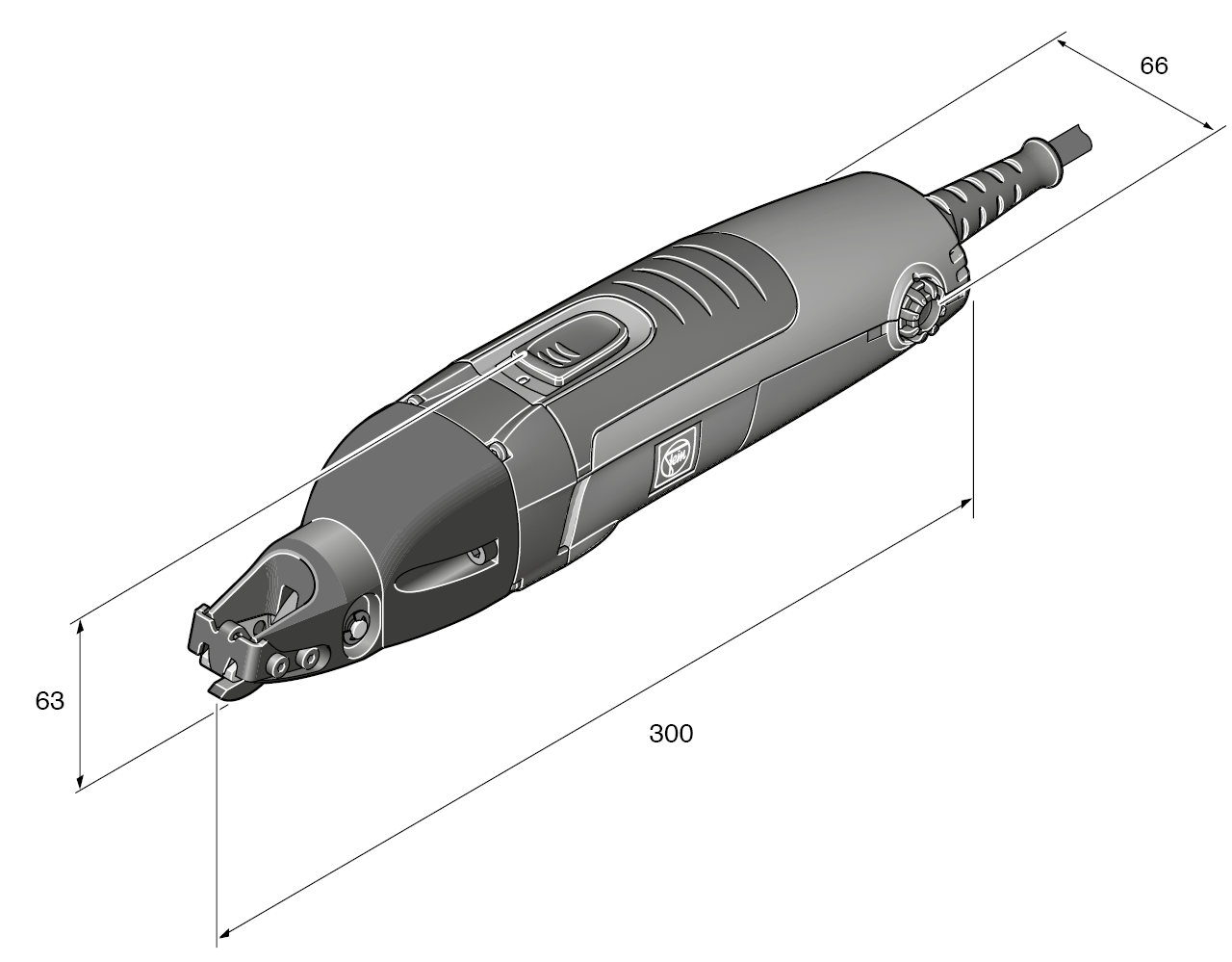

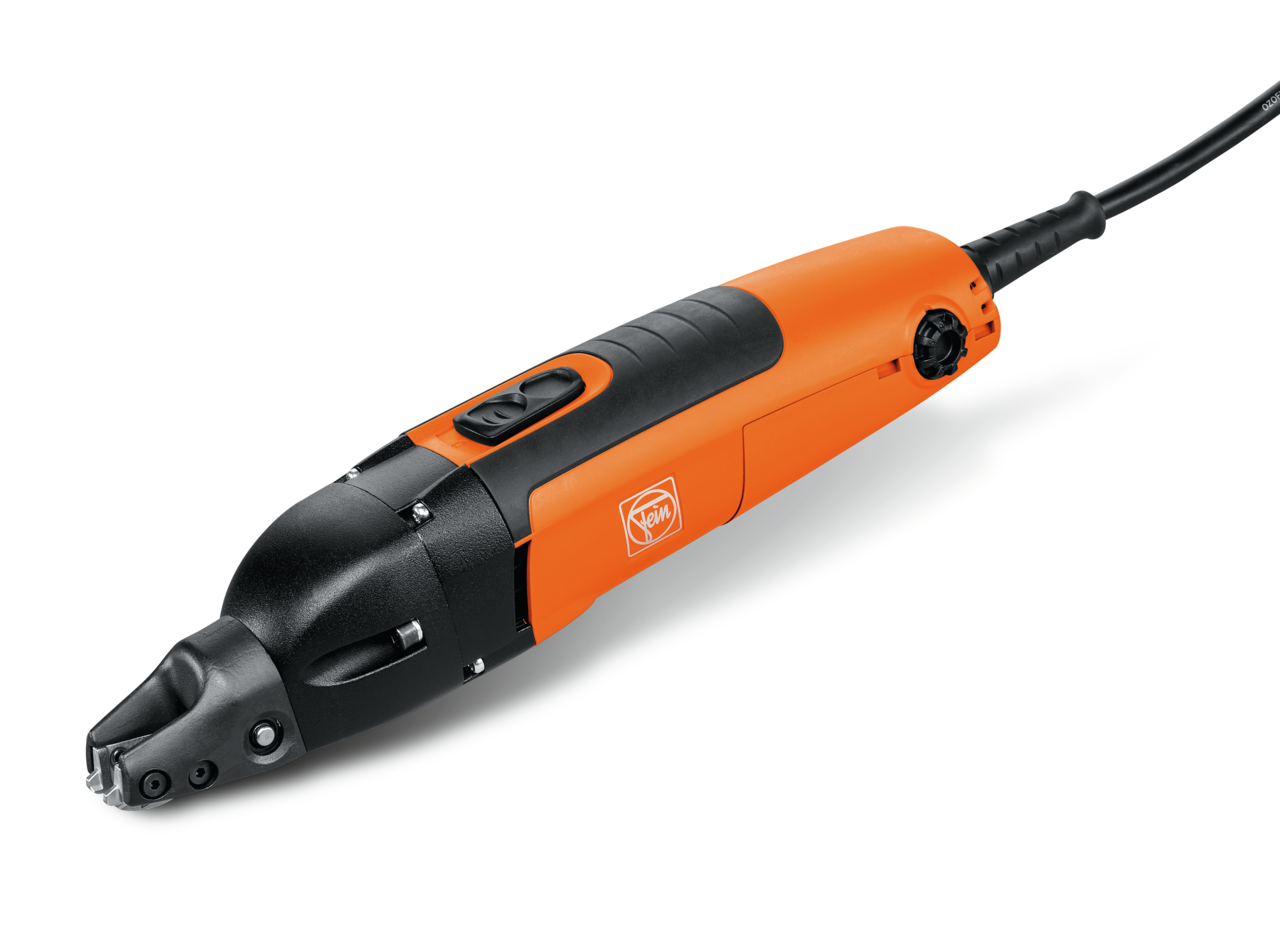

BSS 1.6 E
Slitting shears, up to 1.6 mm
BSS 1.6 E
Slitting shears, up to 1.6 mm
Easy-to-use and curve-compatible slitting shears for distortion-free cutting.
Product number: 7 230 31 61 00 0
Details
- Rapid work progress due to excellent view of the cutting line through the open-fronted cutting head.
- Left and right curve cuts and distortion-free cutting possible with just one continuous chip.
- QuickIN for rapid toolfree blade changing, with no further adjustment required.
- Excellent ergonomics and low weight.
- Motor with outstanding performance and stability.
- Cutting blade with excellent tool life.
- 5 metre cable.
- Clean swarf removal prevents injuries or scratches on workpieces.
- Stainless steel up to 1.2 mm.
- Wide range of accessories.
- ¹ with blade for curves
Technical data
Technical data
Input
350 W
Output
210 W
Strokes
2,100 - 4,500 rpm
Cutting speed
6 - 10 m/min
Steel up to 400 N/mm²
1.6 mm
Steel up to 600 N/mm²
1.2 mm
Steel up to 800 N/mm²
1 mm
Non-ferrous metals up to 250 N/mm²
2 mm
Cutting width
5 mm
Rad. of smallest curve
90 (30)¹ mm
Immersion Ø
15 (8)¹ mm
Cable with plug
5 m
Weight according to EPTA
1.50 kg
Vibration and sound emission values
Sound pressure level LpA
81,1 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
92,1 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
93,3 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
5,7 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 cutter blade, straight (31308150009) fitted, up to 1.6 mm
- 1 pair of cutting jaws (31308153014) fitted
- 1 socket head wrench 2,5 mm
Application
Product feature
- QuickIN
- Adjustable stroke
- Open cutting head
