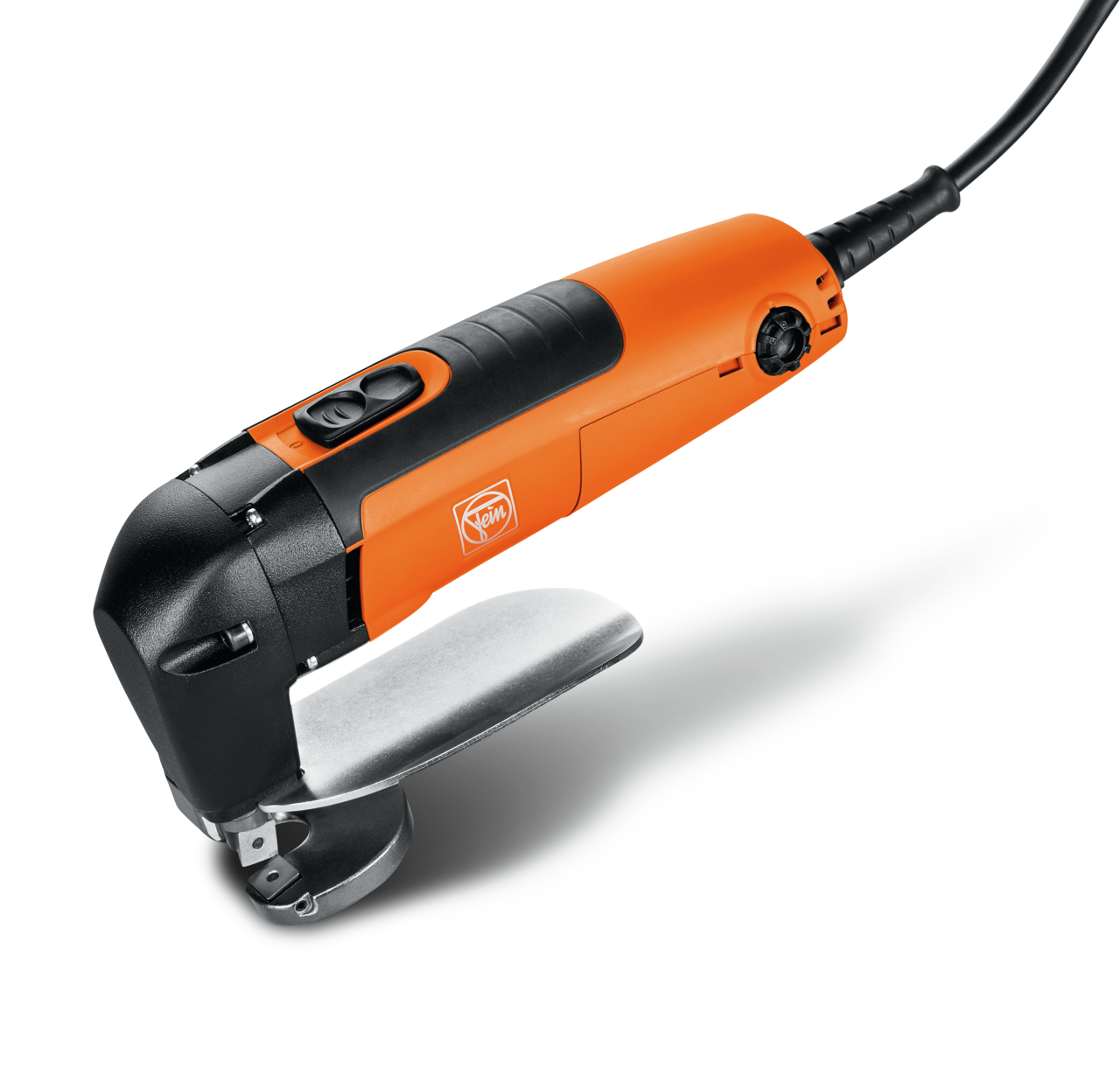

BLS 1.6 E
Sheet Shear, up to 1,6 mm
BLS 1.6 E
Sheet Shear, up to 1,6 mm
Easy-to-use, curve-compatible sheet metal shears for cutting and trimming thin sheets.
Product number: 7 230 34 61 00 0
Details
- Outstanding ergonomics through compact and simple construction for optimal mobility of the shears.
- Good curve precision with low sheet-metal distortion.
- Four-fold reversing blade for clean and burr-free cutting with low operating costs.
- Perfect for trimming and cutting.
- Unrestricted view of the cutting line.
- Motor with outstanding performance and stability.
- 5 metre cable.
- Stainless steel up to 1.0 mm.
Technical data
Technical data
Input
350 W
Output
210 W
Strokes
2,300 - 4,800 rpm
Cutting speed
8 - 12 m/min
Steel up to 400 N/mm²
1.6 mm
Steel up to 600 N/mm²
1.2 mm
Steel up to 800 N/mm²
1 mm
Non-ferrous metals up to 250 N/mm²
2 mm
Rad. of smallest curve
15 mm
Cable with plug
5 m
Weight according to EPTA
1.70 kg
Vibration and sound emission values
Sound pressure level LpA
82,5 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
93,5 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
94,9 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
4,1 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 plunger blade and bench blade (31308072000) fitted
- 1 hand guard, fitted
- 1 socket head wrench 2 mm
- 1 x 3 mm socket head wrench
Application
Product feature
- Reversing blade: 4x
- Adjustable stroke
