BLK 2.0 E
Nibbler up to 2 mm
BLK 2.0 E
Nibbler up to 2 mm
Compact nibbler with unlimited curve precision for corners and edges.
Product number: 7 232 40 60 00 0
Details
- High curve precision due to special cutting head geometry. Nibbler can turn on the spot.
- Especially well-suited for cutting edged sheet metals with a minimum bend radius of 3 mm.
- Cutting direction setting can be changed in 45° steps up to 360° using tool-free pivoting cutting head.
- QuickIN clamping system.
- Optimal ergonomics.
- Motor with outstanding performance and stability.
- Ideal for cut-outs.
- Optimally suited for template cuts.
- Chip protection mesh on vent slots.
- 5 metre cable.
- Stainless steel up to 1.0 mm.
Technical data
Technical data
Input
350 W
Output
210 W
Strokes
500 - 1,000 rpm
Cutting speed
1 m/min
Steel up to 400 N/mm²
2 mm
Steel up to 600 N/mm²
1.5 mm
Steel up to 800 N/mm²
1 mm
Non-ferrous metals up to 250 N/mm²
2.5 mm
Cutting width
8 mm
Immersion Ø with die
18 mm
Rad. of smallest curve (inside/outside)
4 / 0 mm
Cable with plug
5 m
Weight according to EPTA
1.80 kg
Vibration and sound emission values
Sound pressure level LpA
80 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
91 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
91 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
7,3 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 die (3 13 09 040 00 2)
- 1 punch (6 36 02 051 00 9)

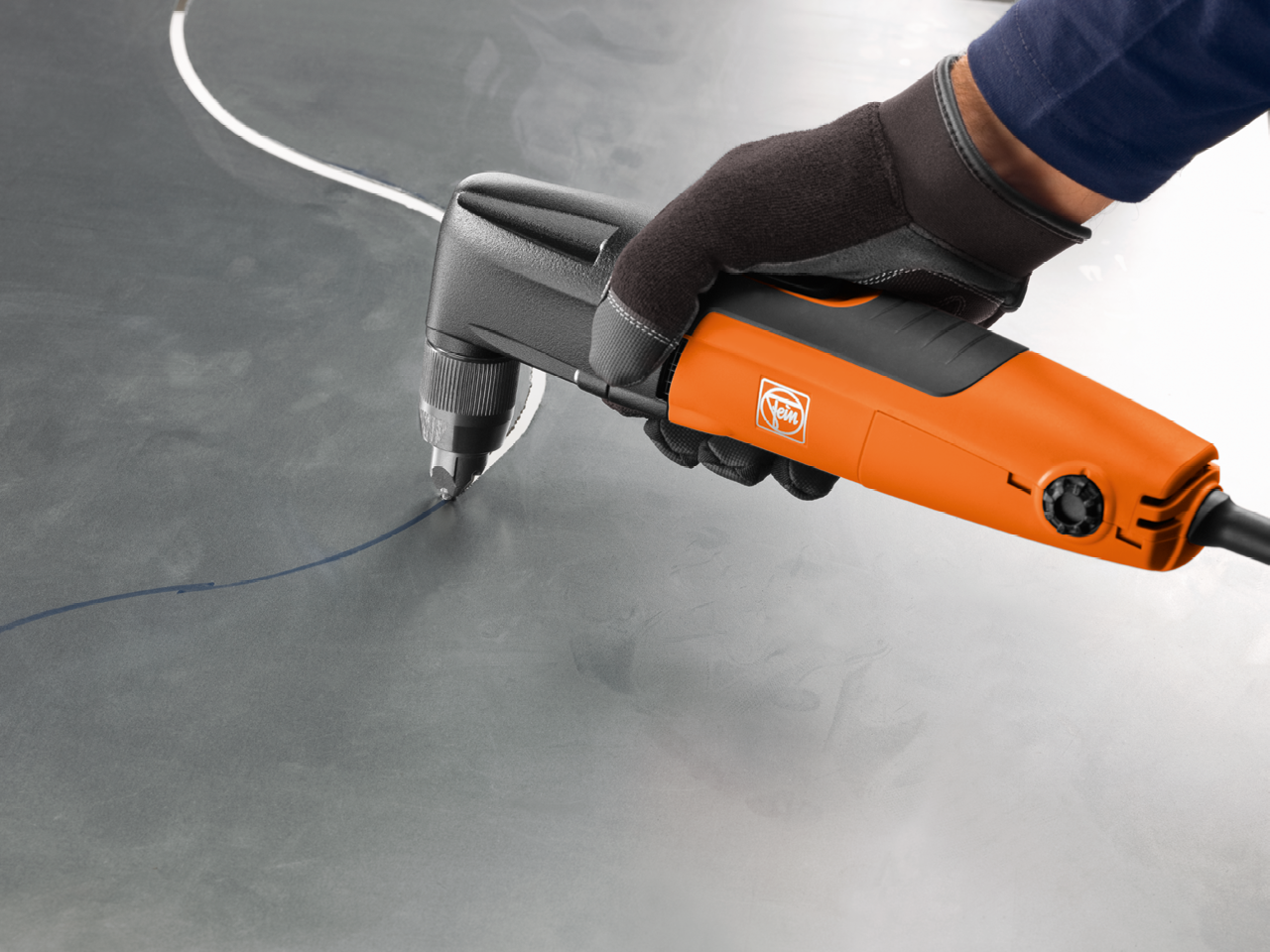

Application
Product feature
- Cutting direction: 8x45°
- QuickIN
- Adjustable stroke
