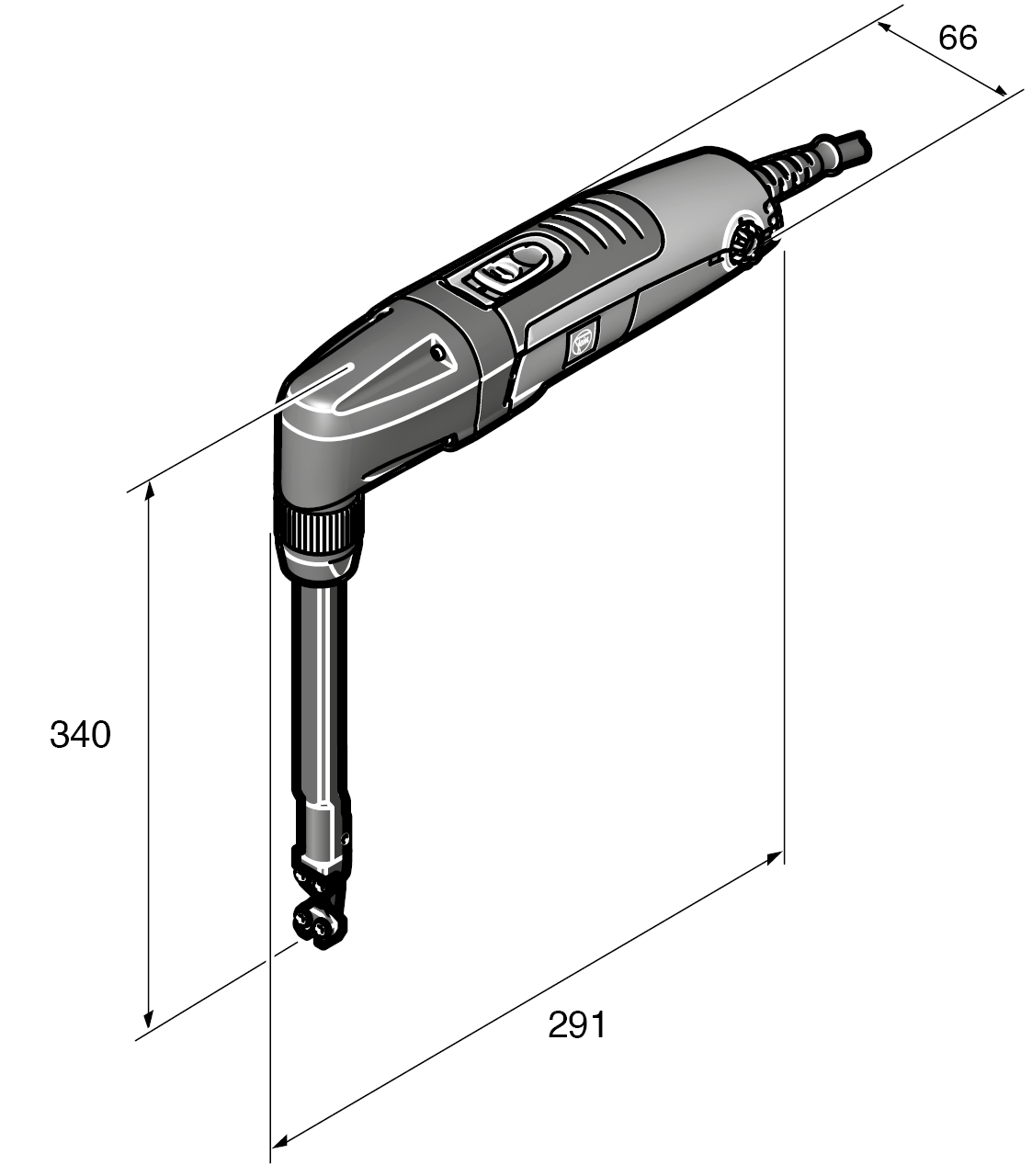

BLK 1.6 LE
Nibbler up to 1.6 mm
BLK 1.6 LE
Nibbler up to 1.6 mm
Compact nibbler for deep-channel trapezoidal sheet metals in roof and façade construction.
Product number: 7 232 39 60 00 0
Details
- The specialist when it comes to zero compromise work on trapezoidal sheet metals with deep channels of up to 160 mm.
- Optimum ergonomics with a handle up to 20% slimmer because of its extremely thin drive head.
- Cutting direction setting can be changed in 45° steps up to 360° using tool-free pivoting cutting head.
- QuickIN clamping system.
- High cutting speed.
- Motor with outstanding performance and stability.
- Chip protection mesh on vent slots.
- 5 metre cable.
- Stainless steel up to 0.7 mm.
Technical data
Technical data
Input
350 W
Output
210 W
Strokes
800 - 1,500 rpm
Cutting speed
2.7 m/min
Steel up to 400 N/mm²
1.6 mm
Steel up to 600 N/mm²
1 mm
Steel up to 800 N/mm²
0.7 mm
Non-ferrous metals up to 250 N/mm²
2.5 mm
Cutting width
5 mm
Immersion Ø with die
24 mm
Rad. of smallest curve (inside/outside)
65 / 70 mm
Cable with plug
5 m
Weight according to EPTA
1.90 kg
Vibration and sound emission values
Sound pressure level LpA
82 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
93 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
93 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
8,8 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 die for trapezoid sheet metal (31309122005) fitted
- 1 punch (63602049008) fitted
- 1 wearing plate fitted
Application
Product feature
- Cutting direction: 8x45°
- QuickIN
- Adjustable stroke
