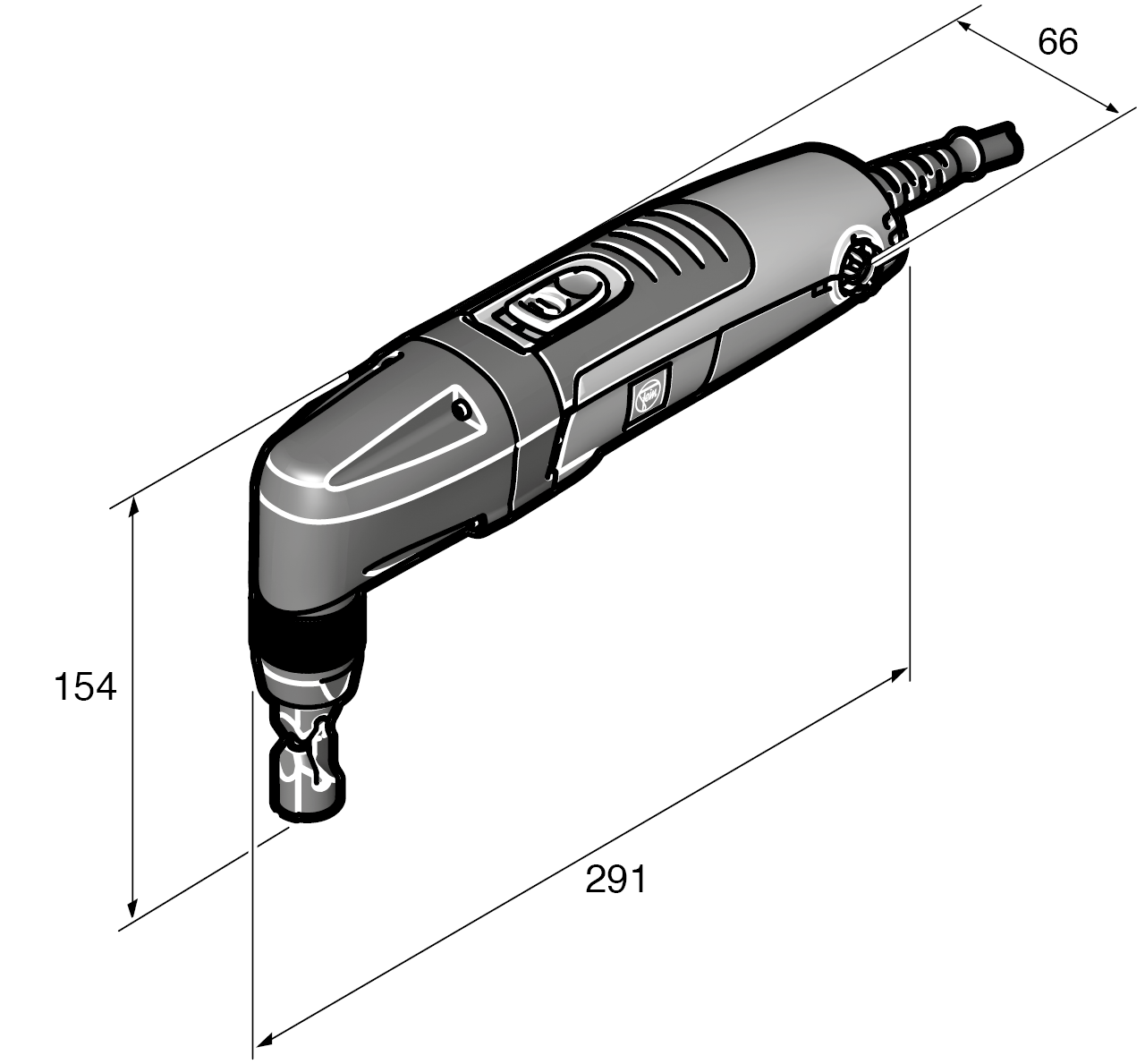

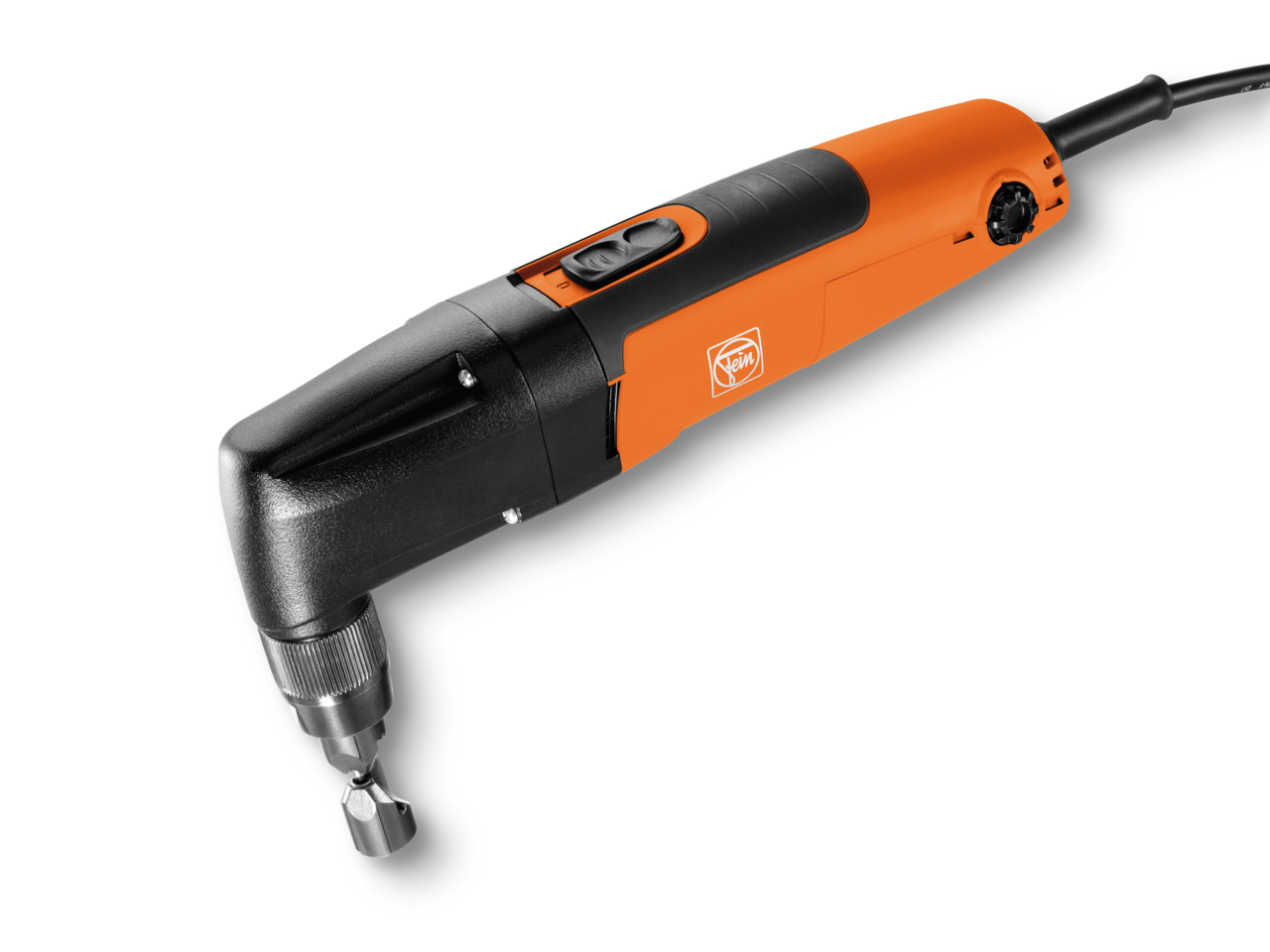

BLK 1.6 E

Nibbler up to 1.6 mm

BLK 1.6 E
BLK 1.6 E
BLK 1.6 E
BLK 1.6 E

BLK 1.6 E
Nibbler up to 1.6 mm

Universal nibbler for sheets, profiles, trapezoid and corrugated sheet metals.

Product number: 7 232 38 60 00 0

Details

  • Almost indestructible. Ideal for flexible and universal use with sheet thickness up to 1.6 mm..
  • Optimum ergonomics with a handle up to 20% slimmer because of its extremely thin drive head.
  • Cutting direction setting can be changed in 45° steps up to 360° using tool-free pivoting cutting head.
  • QuickIN clamping system.
  • High cutting speed.
  • Rotating punch for a service life which is now up to 30 % longer.
  • Low operating costs due to long tool life of punch and die.
  • Motor with outstanding performance and stability.
  • Chip protection mesh on vent slots.
  • 5 metre cable.
  • Stainless steel up to 0.7 mm.
  • Retrofittable trapezoid profile set up to 160 mm deep channels.

Technical data

Technical data
Input
350 W
Output
210 W
Strokes
800 - 1,500 rpm
Cutting speed
1.9 m/min
Steel up to 400 N/mm²
1.6 mm
Steel up to 600 N/mm²
1 mm
Steel up to 800 N/mm²
0.7 mm
Non-ferrous metals up to 250 N/mm²
2.5 mm
Cutting width
5 mm
Immersion Ø with die
22 mm
Rad. of smallest curve (inside/outside)
30 / 35 mm
Cable with plug
5 m
Weight according to EPTA
1.80 kg
Vibration and sound emission values
Sound pressure level LpA
82 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
93 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
93 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
8,8 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 8,36 MB

Download Manual instruction (8,36 MB)

Price includes

  • 1 die (30109141003) fitted
  • 1 punch (63602048004) fitted
  • 1 socket head wrench 6 mm

Application

Curve cuts
well suitable
Coil sections
suitable
Interior cut-outs
well suitable
Profile sections
well suitable
Notches
well suitable
suitable
well suitable

Product feature

  • Rotating round punch
  • Cutting direction: 8x45°
  • QuickIN
  • Adjustable stroke
