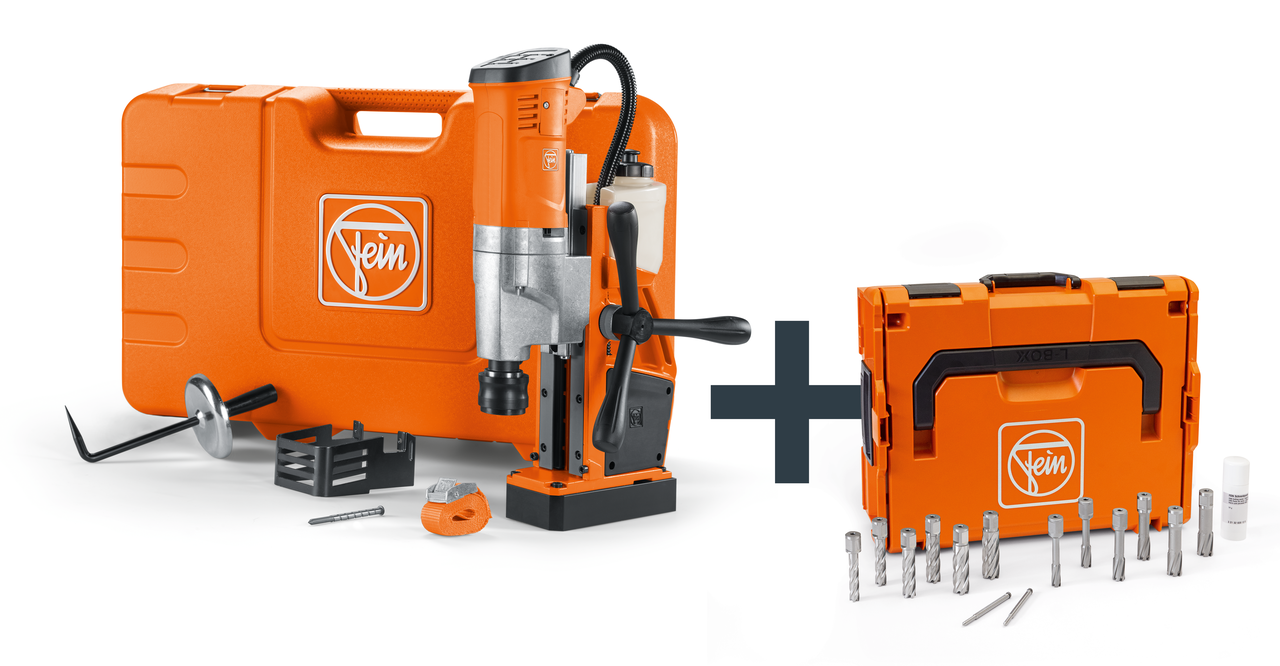

KBU 35 QW Structural Steel-Set 3/4 in Weldon
Universal magnetic core drill for up to 35 mm with application set
KBU 35 QW Structural Steel-Set 3/4 in Weldon
Universal magnetic core drill for up to 35 mm with application set
KBU 35 QW - the extremely versatile core drill coupled with a large number of HM and HSS core drilling accessories. Perfect for steel and bridge construction.
Product number: 7 270 54 63 00 0
Details
- Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
- Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1 100 W high-power motor with tacho electronics for high speed stability for reliable and economical working.
- With clockwise/anti-clockwise operation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
- HSS NOVA 50 core drill bit: Extremely resistant to shock and impact, perfectly designed for tough use in steel construction and installation work. Thanks to its tough cutting edges and outstanding HSS steel with a hardness of 64 HRC, the core drill bit also delivers an impressively long service life.
- HM ULTRA 50 core drill bit: Thanks to its high-quality carbide cutting teeth with a hardness of 1450 HV, the core drill bit wins customers over with it outstanding cutting performance and very long service life in all metals.
- L-BOXX system: Keep things stowed clearly, tidily and safely. Thanks to the tray for small parts, there is room for all accessories and the L-BOXXs can also be joined together and stacked with ease.
Technical data
Technical data
Input
1,100 W
Output
550 W
Speed, full load
130 - 520 rpm
Carbide core drill bit max. Ø
35 mm
HSS core drill max. Ø
35 mm
Core drill, drilling depth max.
50 mm
Twist drill max. Ø
16 mm
Tapping
M 14
Countersinking max. Ø
31 mm
Reaming max. Ø
16 mm
Core drill holder
3/4 in Weldon
Changing the core bit
tool-free
Stroke
135 mm
Magnetic holding power
10,000 N
Magnetic foot dimensions
175 x 80 mm
Cable with plug
4 m
Weight according to EPTA
10.60 kg
Vibration and sound emission values
Sound pressure level LpA
86,7 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
97,7 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
101,2 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh,D <2,5 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 magnetic core drill
- 1 coolant tank
- 1 lashing strap
- 1 swarf hook
- 1 centring pin 100 mm
- 1 contact guard
- 1 plastic carrying case
- HSS NOVA 50 core drill bits, 50 mm cutting depth (1 each of diameter 12 / 14 / 16 / 18 / 20 / 22 mm)
- HM ULTRA 50 core drill bits, 50 mm cutting depth (1 each of diameter 12 / 14 / 16 / 18 / 20 / 22 mm)
- 2 x 100 mm centring pin
- 1 cutting paste
- 1 L-BOXX 136 for accessories
Application
Product feature
- Magnetic holding force display
- Reversible rotation
- Variable speed control
- Memory function
- Speed-controlled electronics (tacho)
- Tilt sensor
