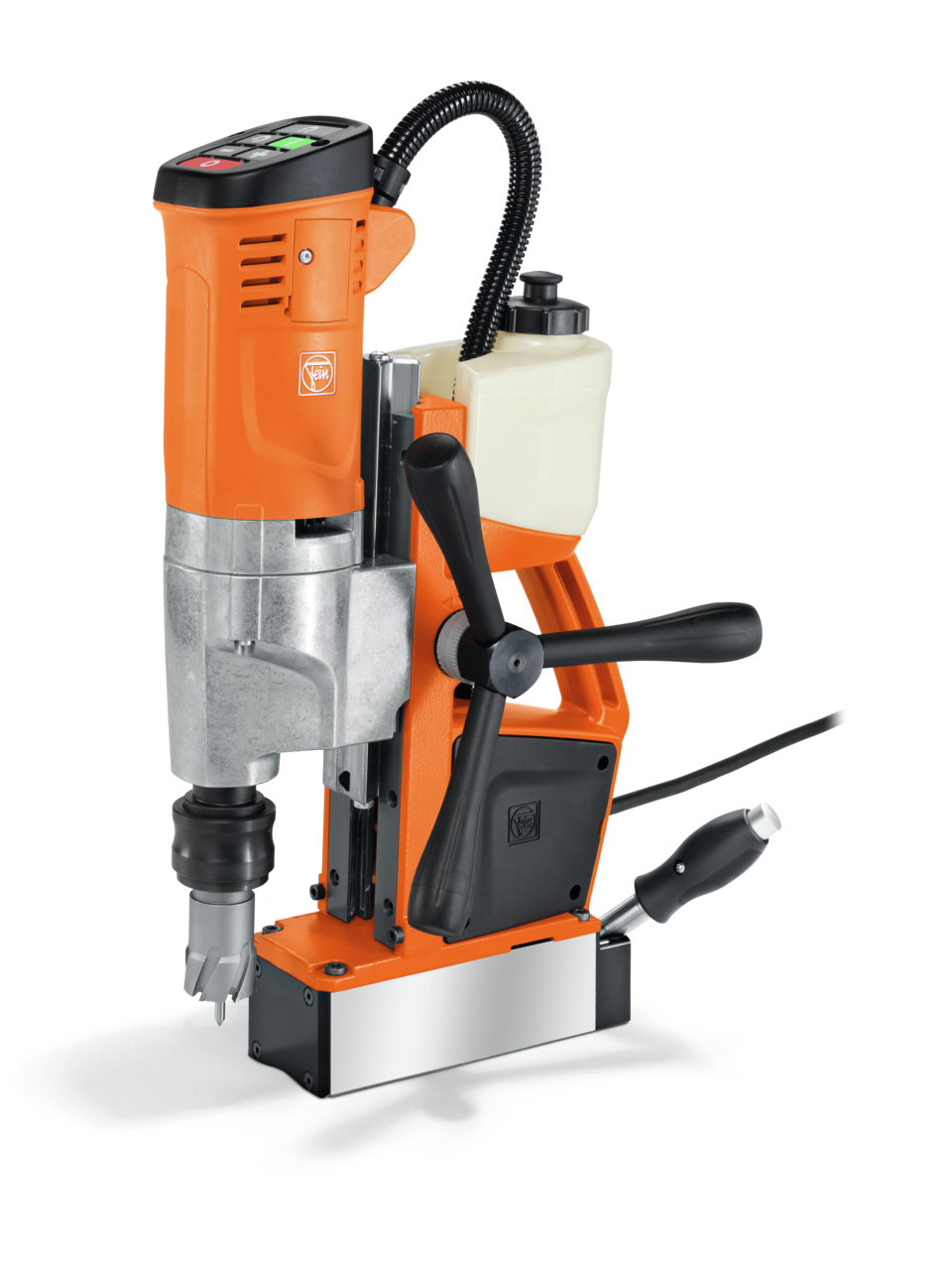

KBU 35 PQ
Universal magnetic core drill for up to 35 mm
KBU 35 PQ
Universal magnetic core drill for up to 35 mm
Small and powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation, permanent magnet and maximum functionality for very safe and flexible working on the construction site.
Product number: 7 270 71 61 00 0
Details

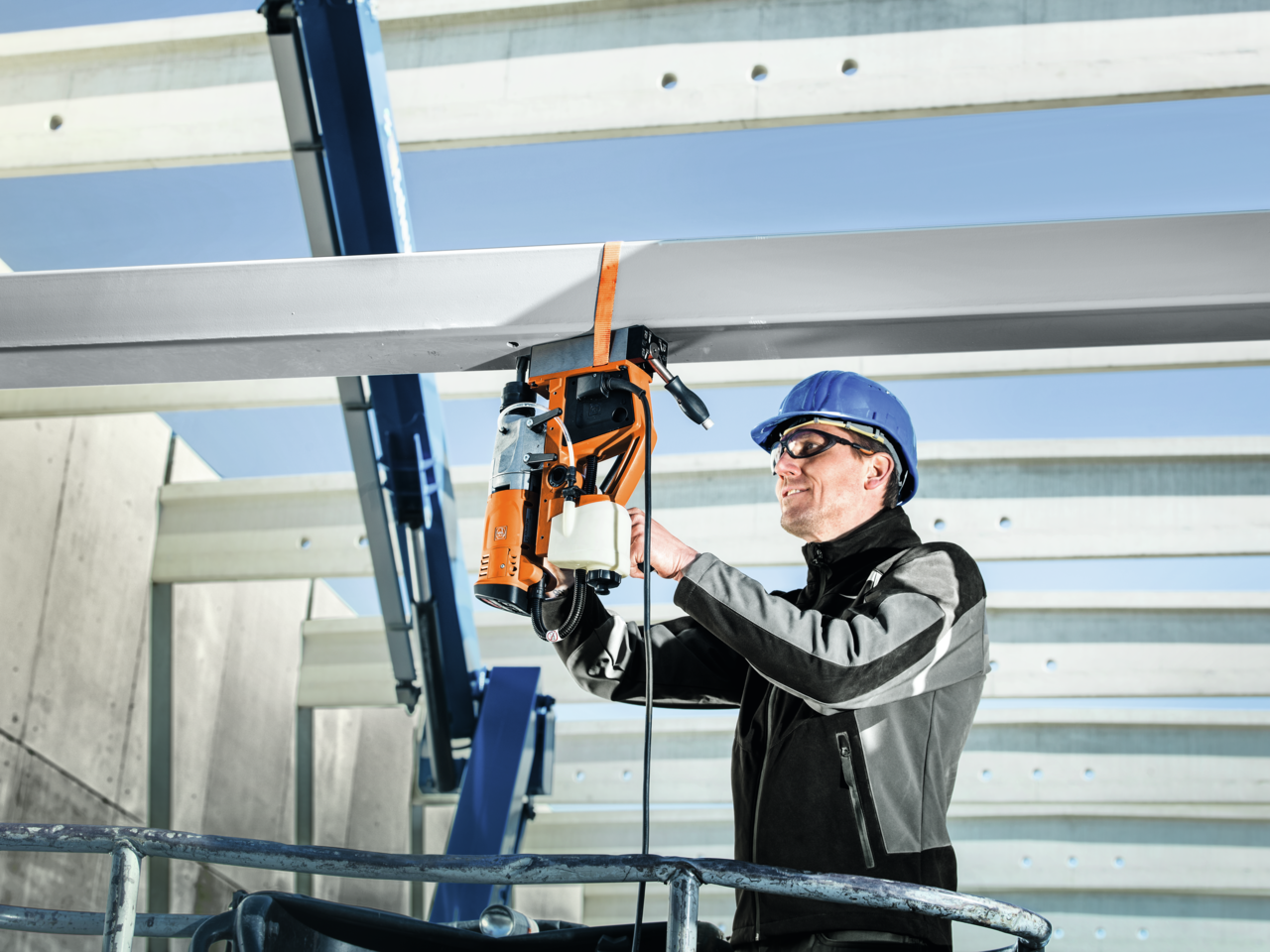

- Permanent magnet for very safe working at height, swivel-mounted motor cable protective hose and good quality of workmanship for tough use.
- Compact and lightweight tool with high torque for continuously good work progress thanks to FEIN high-power motor with tacho electronics.
- Tool with extra large stroke range for all drilling work, such as core, twist and tap drilling, countersinking and reaming.
- Extra narrow permanent magnet with magnetic bias.
- Tilt sensor.
- Simple operating concept avoids mix-ups and can be clearly seen by the user.
- Convenient magnetic holding force display helps the user to reliably position the tool.
- Reversible.
- Integrated coolant tank delivers long core drill bit lives.
- Speed saving "memory function".
- Feed handwheel can be moved from one side to the other.
- Personal safety switch.
Technical data
Technical data
Input
1,010 W
Output
550 W
Speed, full load
130-520 rpm
Carbide core drill bit max. Ø
35 mm
HSS core drill max. Ø
35 mm
Core drill, drilling depth max.
50 mm
Twist drill max. Ø
16 mm
Tapping
M 14
Countersinking max. Ø
31 mm
Reaming max. Ø
16 mm
Core drill holder
QuickIN
Changing the core bit
tool-free
Stroke
135 mm
Total stroke range
260 mm
Magnetic holding power
9,000 N

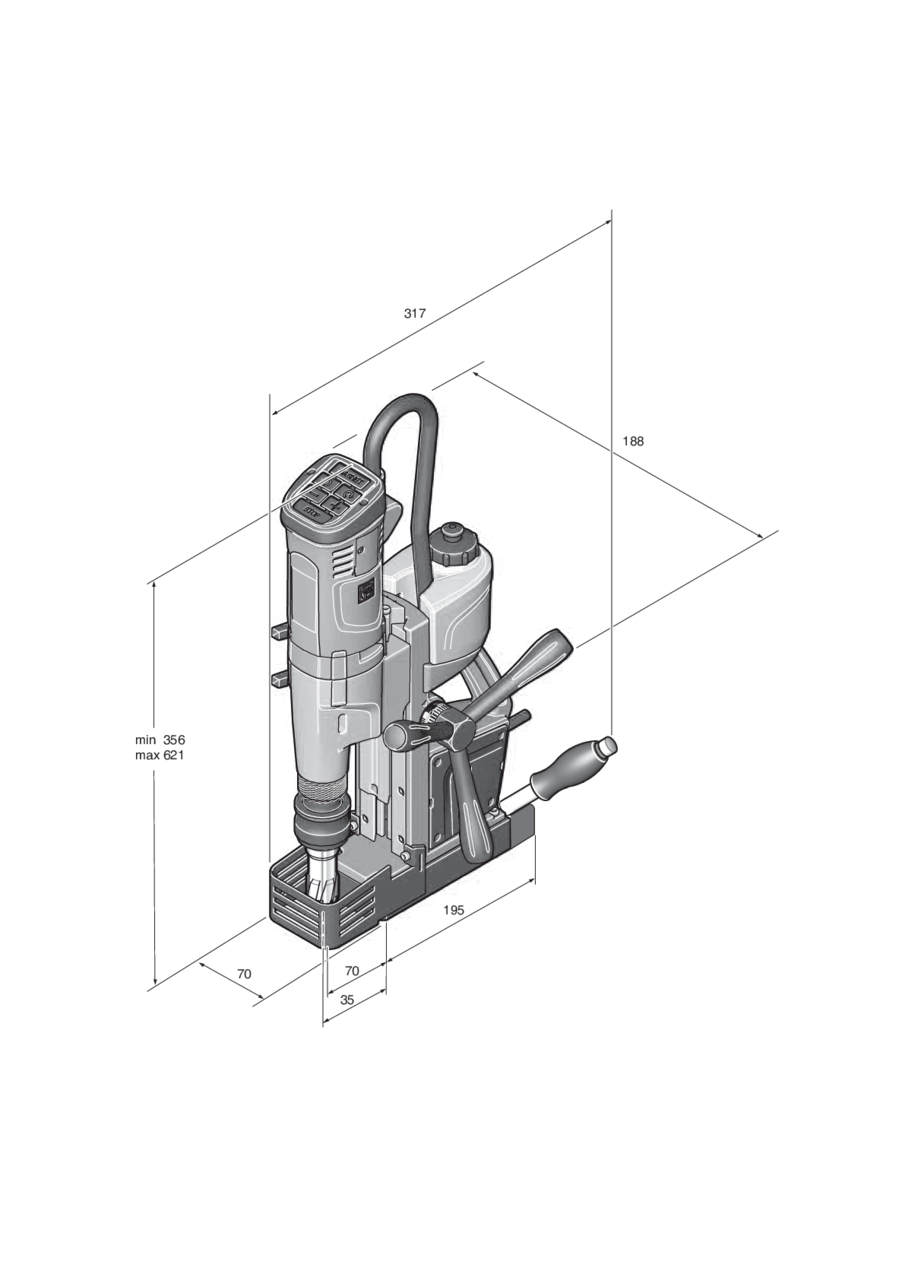

Magnetic foot dimensions
195 x 70 mm
Cable with plug
4 m
Weight according to EPTA
12.50 kg
Vibration and sound emission values
Sound pressure level LpA
86,7 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
97,7 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
101,2 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
<2,5 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads

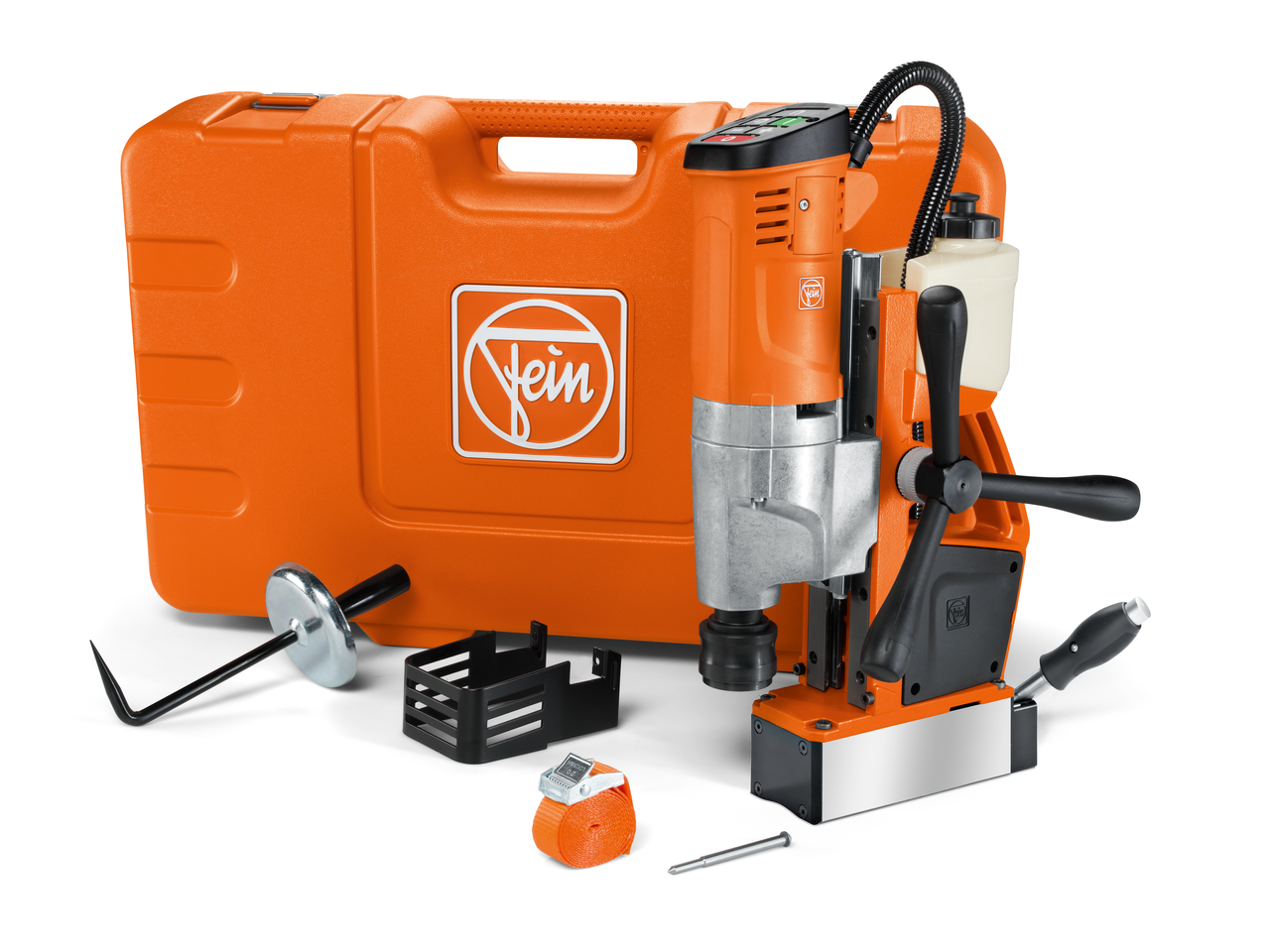

Price includes
- 1 coolant tank
- 1 lashing strap
- 1 swarf hook
- 1 centring pin, diameter of 6.35 x 100 mm
- 1 contact guard
- 1 case
Application
Product feature
- Magnetic holding force display
- Reversible rotation
- Variable speed control
- Memory function
- Speed-controlled electronics (tacho)
- Tilt sensor
