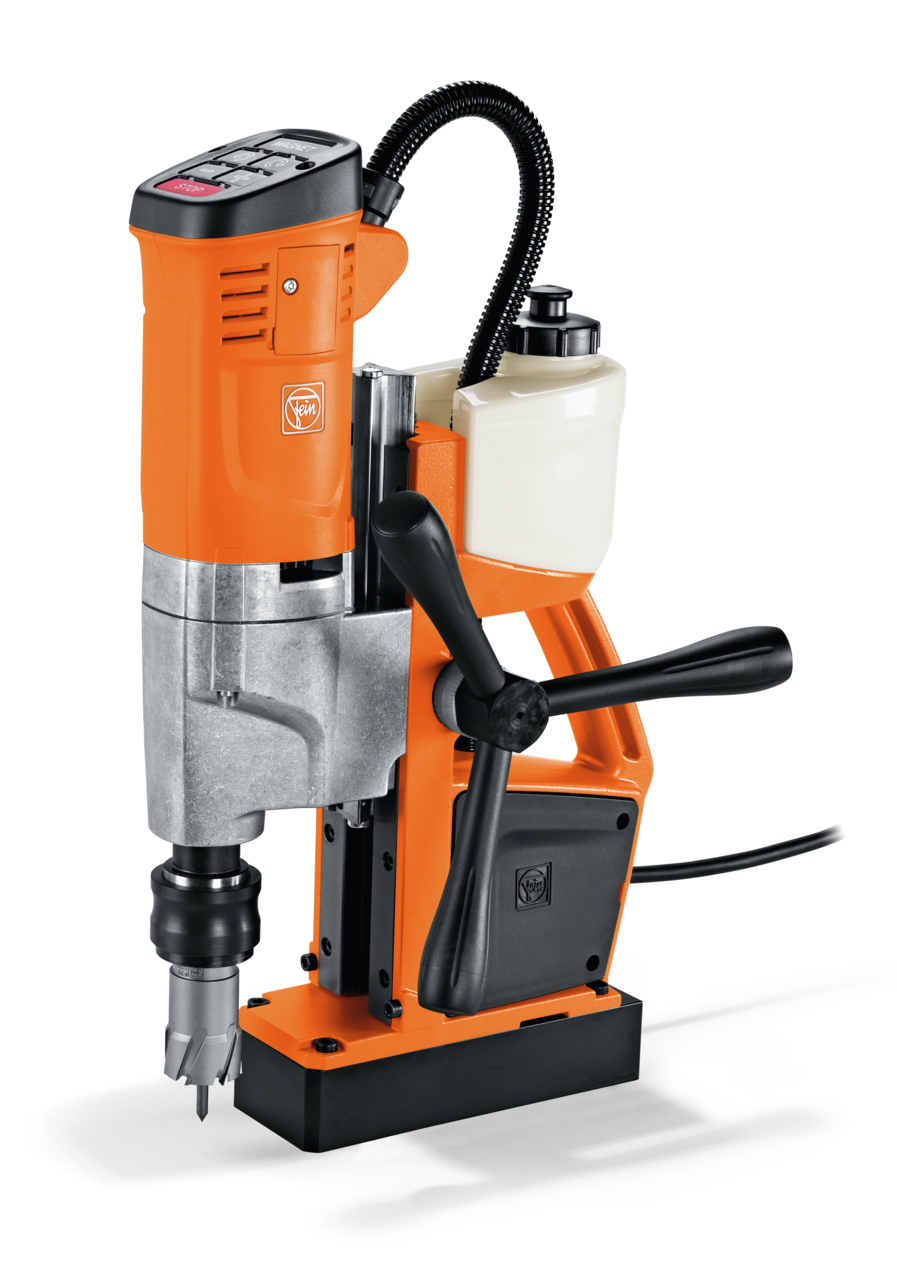

KBU 35-2 QW

Universal magnetic core drill for up to 35 mm


KBU 35-2 QW
Universal magnetic core drill for up to 35 mm

Small and powerful 2-speed universal magnetic core drill with clockwise/anti-clockwise operation and high speed for efficient twist drilling on the construction site.

Product number: 7 270 58 61 00 0

KBU 35-2 QW

Add to Shopping Cart

Details

  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
  • Extremely resilient construction thanks to sturdy machine design with swivel-mounted motor cable protection hose. Designed for tough use in industry and manual trades.
  • Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1 100 W high-power motor with tacho electronics for high speed stability for reliable and economical working.
  • With clockwise/anti-clockwise operation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
  • Small with mechanical 2-speed gearbox for twist drilling.
  • Simple operating concept avoids mix-ups and can be clearly seen by the user.
  • Convenient magnetic holding force display helps the user to reliably position the tool.
  • High magnetic holding force thanks to 2-coil magnet, just 70 mm wide.
  • Tilt sensor.
  • Additional magnetic switch in the drill jig.
  • Integrated coolant tank delivers long core drill bit lives.
  • Feed handwheel can be moved from one side to the other.
  • Speed saving "memory function".
  • Personal safety switch.

Technical data

Technical data
Input
1,100 W
Output
550 W
Carbide core drill bit max. Ø
35 mm
HSS core drill max. Ø
35 mm
Core drill, drilling depth max.
50 mm
Twist drill max. Ø
16 mm
Tapping
M 14
Countersinking max. Ø
31 mm
Reaming max. Ø
16 mm
Core drill holder
3/4 in Weldon
Changing the core bit
tool-free
Stroke
135 mm
Total stroke range
260 mm
Magnetic holding power
9,500 N

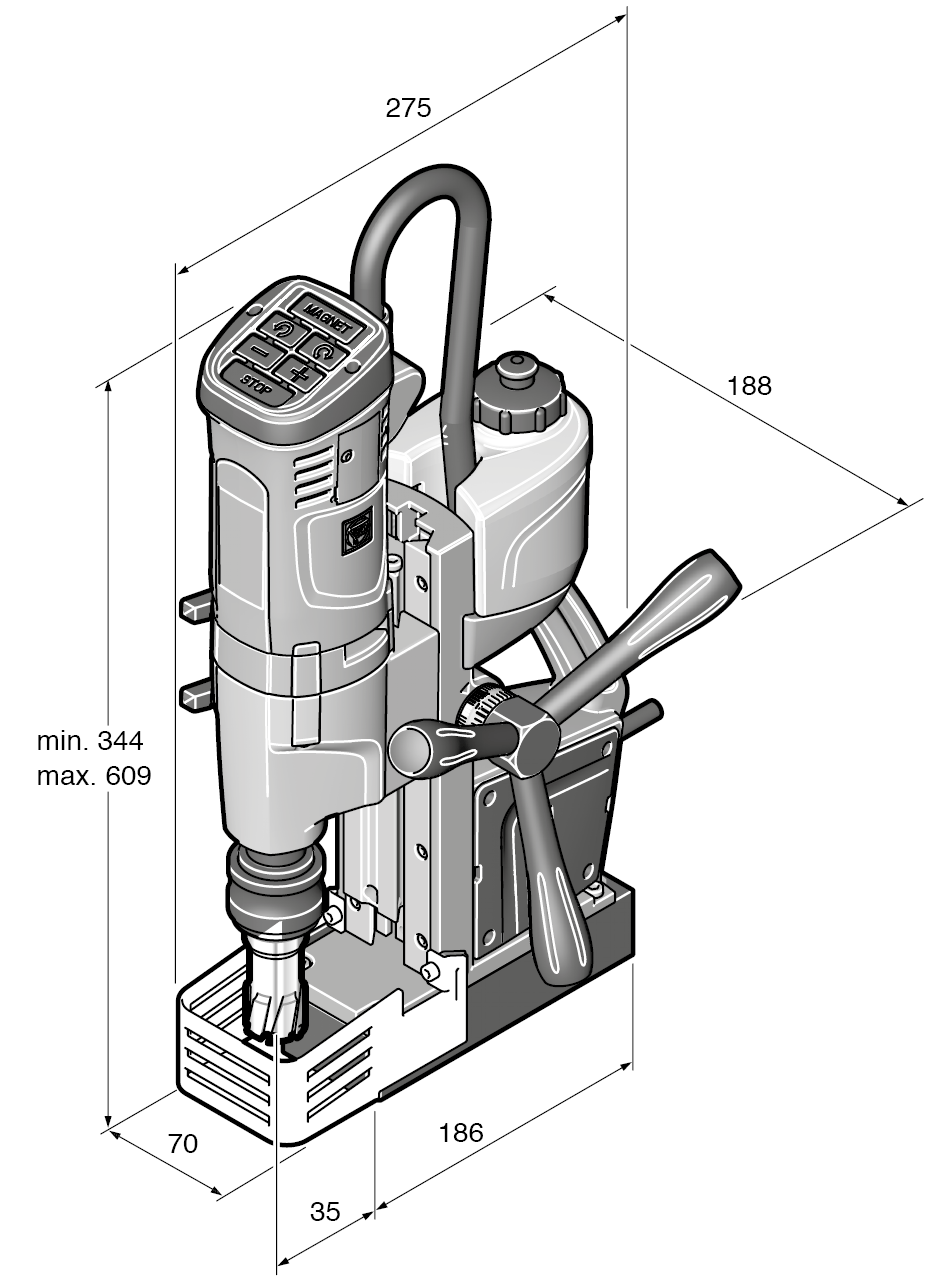

Magnetic foot dimensions
186 x 70 mm
Cable with plug
4 m
Weight according to EPTA
11.10 kg
Vibration and sound emission values
Sound pressure level LpA
83,2 dB
Uncertainty of measured value KpA
5 dB
Sound power level LWA
94,2 dB
Uncertainty of measured value KWA
5 dB
Sound peak value LpCpeak
96,8 dB
Uncertainty of measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
αh,D <2,5 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Product datasheet

PDF 467,09 KB

Download Product datasheet (467,09 KB)

Manual instruction

PDF 33,02 MB

Download Manual instruction (33,02 MB)

Manual instruction

PDF 33,68 MB

Download Manual instruction (33,68 MB)

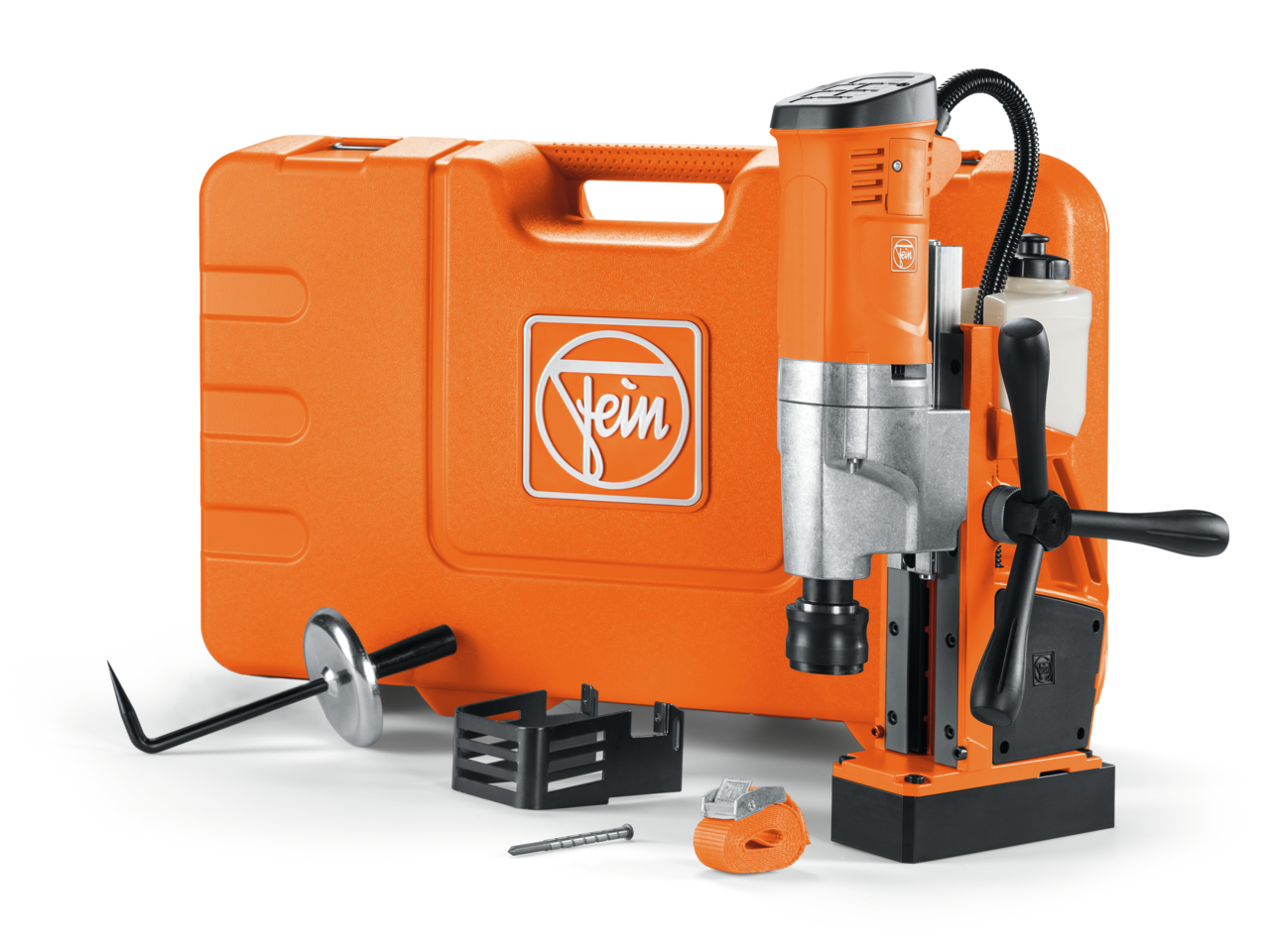

Price includes

  • 1 coolant tank
  • 1 lashing strap
  • 1 swarf hook
  • 1 centering pin
  • 1 contact guard
  • 1 case

Application

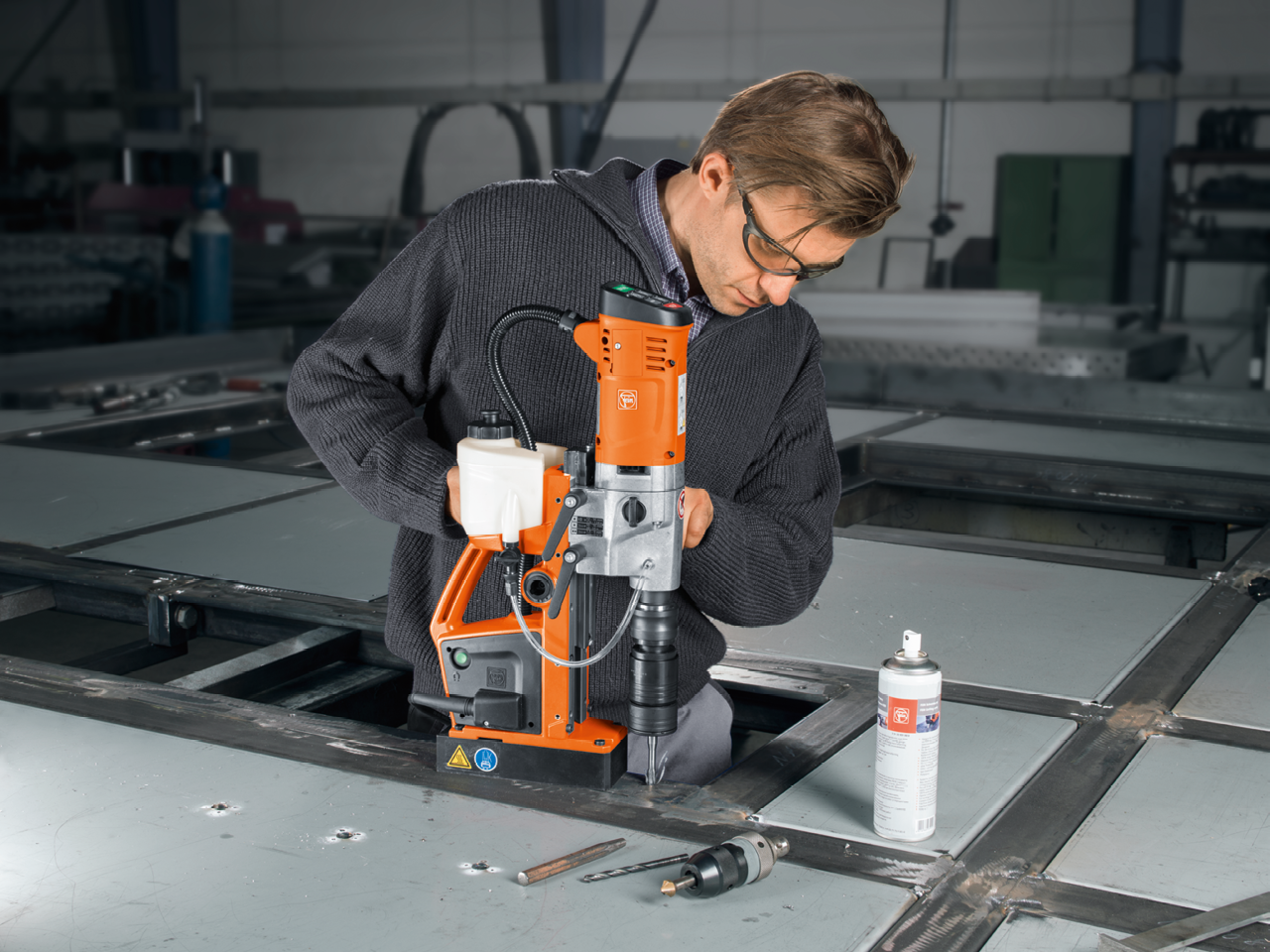

Core drilling in metal with a Ø up to 35 mm
well suitable
Twist drills with drill chuck (DIN 338)
well suitable
Tapping
well suitable
Countersinking
well suitable
Reaming
well suitable
Working overhead
well suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Magnetic holding force display
  • Reversible rotation
  • Variable speed control
  • Memory function
  • Speed-controlled electronics (tacho)
  • Tilt sensor
