AKBU 35 PMQW 18 V AS set 2x 8 Ah

Cordless universal magnetic core drill for up to 35 mm

BOSCH AMPShare
AKBU 35 PMQW 18 V AS set 2x 8 Ah
AKBU 35 PMQW 18 V AS set 2x 8 Ah
AKBU 35 PMQW 18 V AS set 2x 8 Ah
AKBU 35 PMQW 18 V AS set 2x 8 Ah
AKBU 35 PMQW 18 V AS set 2x 8 Ah

AKBU 35 PMQW 18 V AS set 2x 8 Ah
Cordless universal magnetic core drill for up to 35 mm

Battery set containing 2 x 8 Ah ProCORE batteries. Perfect for mobile working on the construction site.

Product number: 7 170 04 64 00 0

AKBU 35 PMQW 18 V AS set 2x 8 Ah

Add to Shopping Cart

Details

  • Extremely wear-resistant and durable tool concept thanks to brushless motor as well as high material quality and workmanship. Designed for up to 60,000 holes during a 300 h usage period.
  • Small and light tool with increased work progress of up to 25%, offering unique productivity and battery life compared with the competition. Using 18 V 8 Ah AMPShare ProCORE batteries, up to 31 holes can be drilled per battery charge (carbide core drill bit, diameter 18 mm, S235 12 mm).
  • Weighing 12.2 kg, it’s the lightest cordless universal core drill in the world. Maximum flexibility for all mobile drilling work, such as core drilling, twist drilling, tapping, countersinking and reaming thanks to forward/reverse running, electronic speed setting and a 260 mm stroke range.
  • Intuitive operating concept avoids mix-ups and can be clearly seen by the user.
  • Convenient magnetic holding force display helps the user to reliably position the tool.
  • Tilt sensor stops the drill motor when the tool slips or tilts.
  • MT2 tool mounting for direct use of industrial tools.
  • Secure positioning thanks to extra narrow permanent magnet with magnetic bias for convenient and simple alignment.
  • Speed saving "memory function".
  • Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
  • COOLPACK 2.0 technology delivers a 135% longer battery life and therefore makes longer operating times possible.
  • State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries.
  • ProCORE Li-Ion battery with high-power cells, charge status indicator and “Electronic Cell Protection” (ECP). ECP protects against overload, overheating and total discharge.
  • * Also available with accessories.
  • ** Outstanding performance with AMPShare ProCore 18 V 8.0 Ah / 12.0 Ah

Technical data

Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / ProCORE Li-ion**
Battery interface
18 V AMPShare
Motor
brushless
Speed, full load
130 - 520 rpm
Tool Holder
MT 2
Carbide core drill bit max. Ø
35 mm
HSS core drill max. Ø
35 mm
Core drill, drilling depth max.
50(75)* mm
Twist drill max. Ø
18 mm
Tapping
M 14
Countersinking max. Ø
31 mm
Reaming max. Ø
18 mm
Core drill holder
3/4 in Weldon
Changing the core bit
tool-free
Stroke
135 mm
Total stroke range
260 mm
Magnetic holding power
9,000 N
Magnetic foot dimensions
195 x 70 mm
Weight without storage battery
12.20 kg
Vibration and sound emission values
Sound pressure level LpA
82,4 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
93,4 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
97,1 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh,D 0,6 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 50,26 MB

Download Manual instruction (50,26 MB)

Manual instruction

PDF 50,90 MB

Download Manual instruction (50,90 MB)

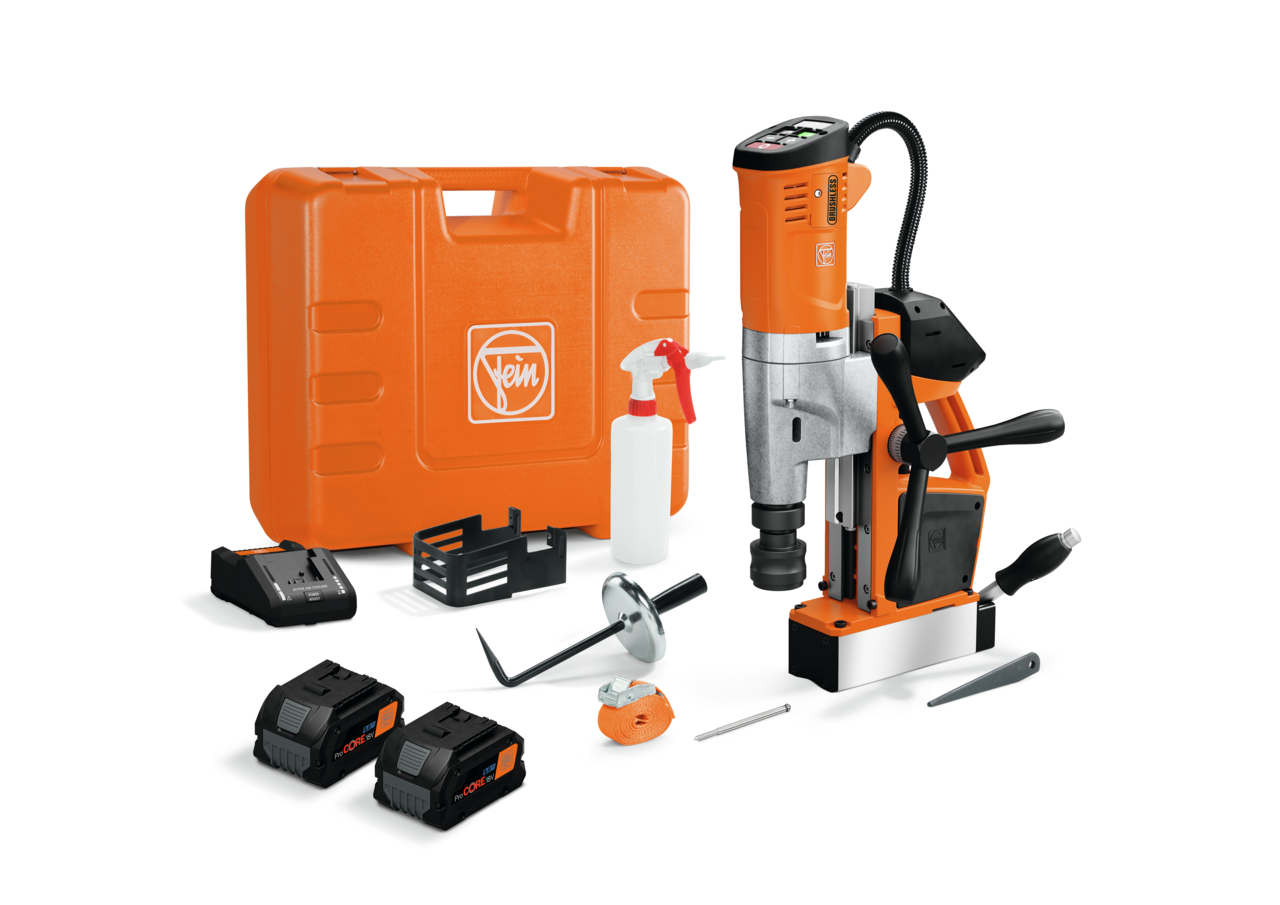

Price includes

  • 1 cordless magnetic core drill
  • 1 x coolant pump
  • 1 lashing strap
  • 1 swarf hook
  • 1 centring pin 100 mm
  • 1 contact guard
  • 1 drift key
  • 2 ProCORE 18 V / 8.0 Ah Li-Ion batteries
  • 1 x GAL18 V-160 AS rapid charger
  • 1 plastic carrying case

Application

Core drilling in metal with a Ø up to 35 mm
well suitable
Twist drills with drill chuck (DIN 338)
suitable
Twist drills with MK fitting (DIN 345)
well suitable
Tapping
well suitable
Countersinking
well suitable
Reaming
well suitable
Working overhead
well suitable
suitable
well suitable

Product feature

  • Magnetic holding force display
  • Reversible rotation
  • Variable speed control
  • Memory function
  • Speed-controlled electronics (tacho)
  • Tilt sensor
