KBE 32 QW

Endurance magnetic core drill up to 32 mm


KBE 32 QW
Endurance magnetic core drill up to 32 mm

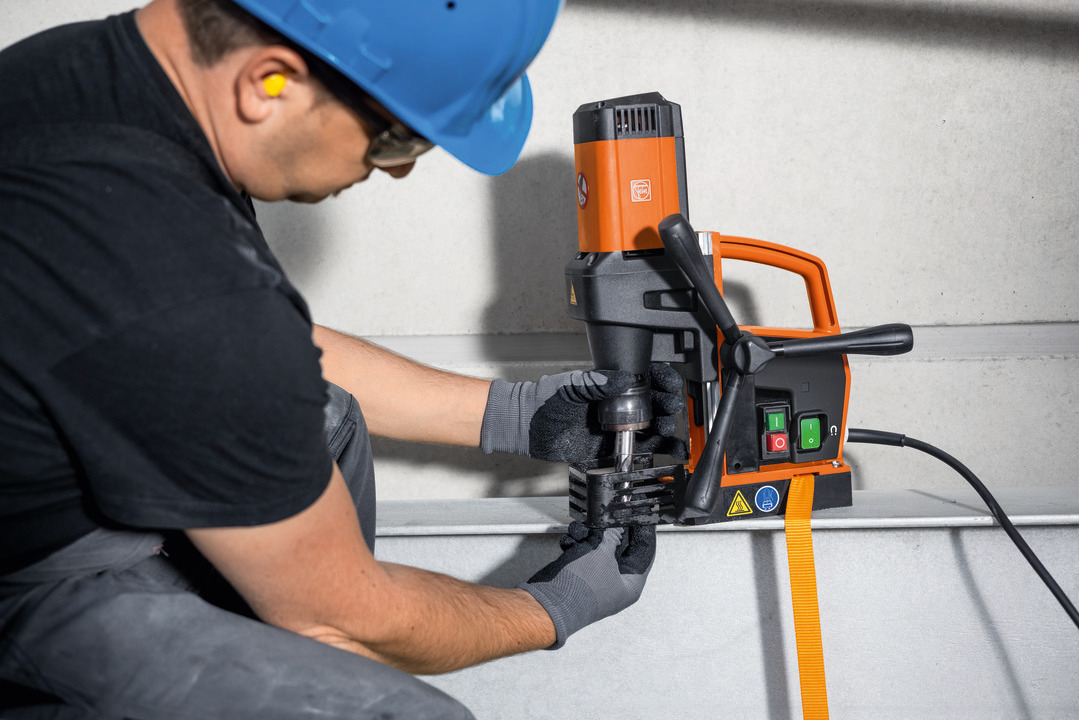

Small and extremely lightweight 1-speed Endurance magnetic core drilling machine for core drilling on the construction site.

Product number: 7 270 95 61 00 0

KBE 32 QW

Add to Shopping Cart

Details

  • For tough use thanks to the outstanding quality of workmanship and the internal motor cable guide.
  • Extremely durable gearbox design offering an operating time of up to 400 hours for an uncompromising service life.
  • Lightweight with FEIN high-power motor and high torque for all core drilling tasks
  • Excellent price / performance ratio.
  • Tool-free core bit quick change system.
  • Internal cooling.
  • High magnetic holding force.
  • Feed handwheel can be moved from one side to the other.
  • Good accessibility in cramped operating situations.
  • Personal safety switch.

Technical data

Technical data
Input
1,200 W
Output
770 W
Core drill holder
3/4 in Weldon
Speed, full load
450 rpm
Speed, no load
700 rpm
Carbide core drill bit max. Ø
32 mm
HSS core drill max. Ø
32 mm
Core drill, drilling depth max.
50 mm
Changing the core bit
tool-free
Stroke
90 mm
Magnetic holding power
10,000 N

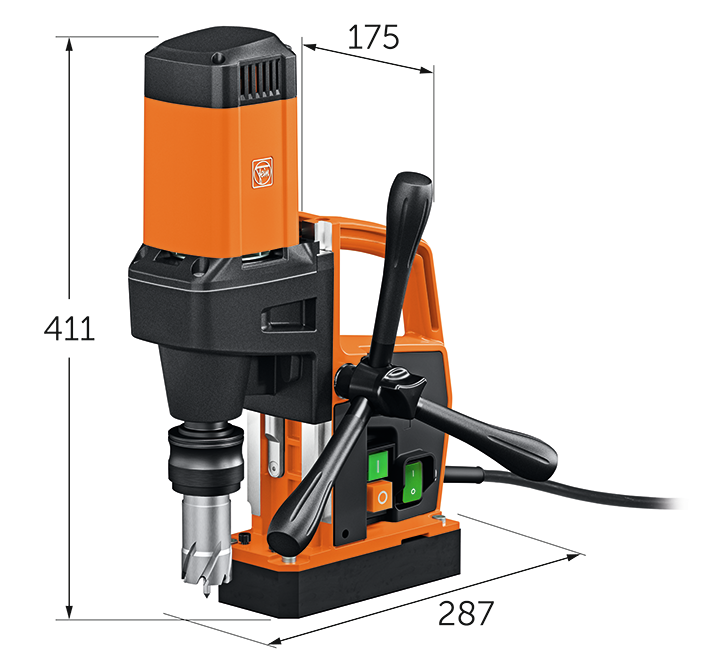

Magnetic foot dimensions
175 x 80 mm
Cable with plug
3 m
Weight according to EPTA
11.00 kg
Vibration and sound emission values
Sound pressure level LpA
84,4 dB
Uncertainty of measured value KpA
5 dB
Sound power level LWA
97,4 dB
Uncertainty of measured value KWA
5 dB
Sound peak value LpCpeak
97,4 dB
Uncertainty of measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
0,9 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 30,94 MB

Download Manual instruction (30,94 MB)

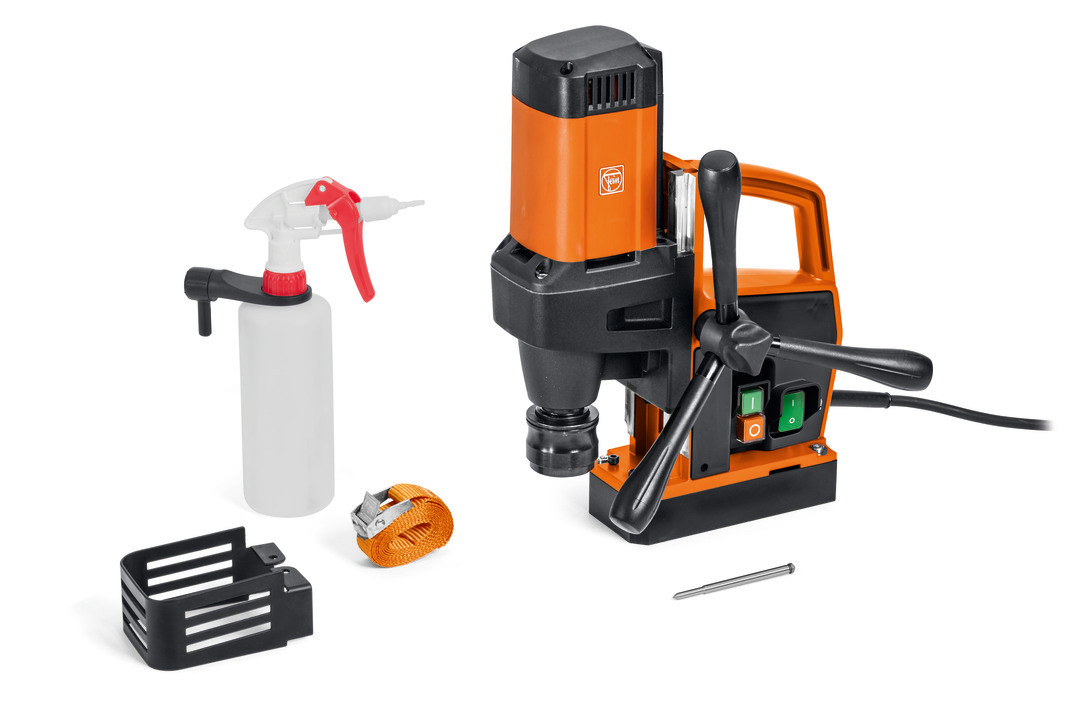

Price includes

  • 1 hand pump
  • 1 bottle holder
  • 1 lashing strap
  • 1 centring pin 100 mm
  • 1 contact guard
  • 1 case

Application

Core drilling in metal with a Ø up to 30 mm
well suitable
Working overhead
well suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Feed handwheel can be moved from one side to the other
  • Tool-free core bit quick change system
