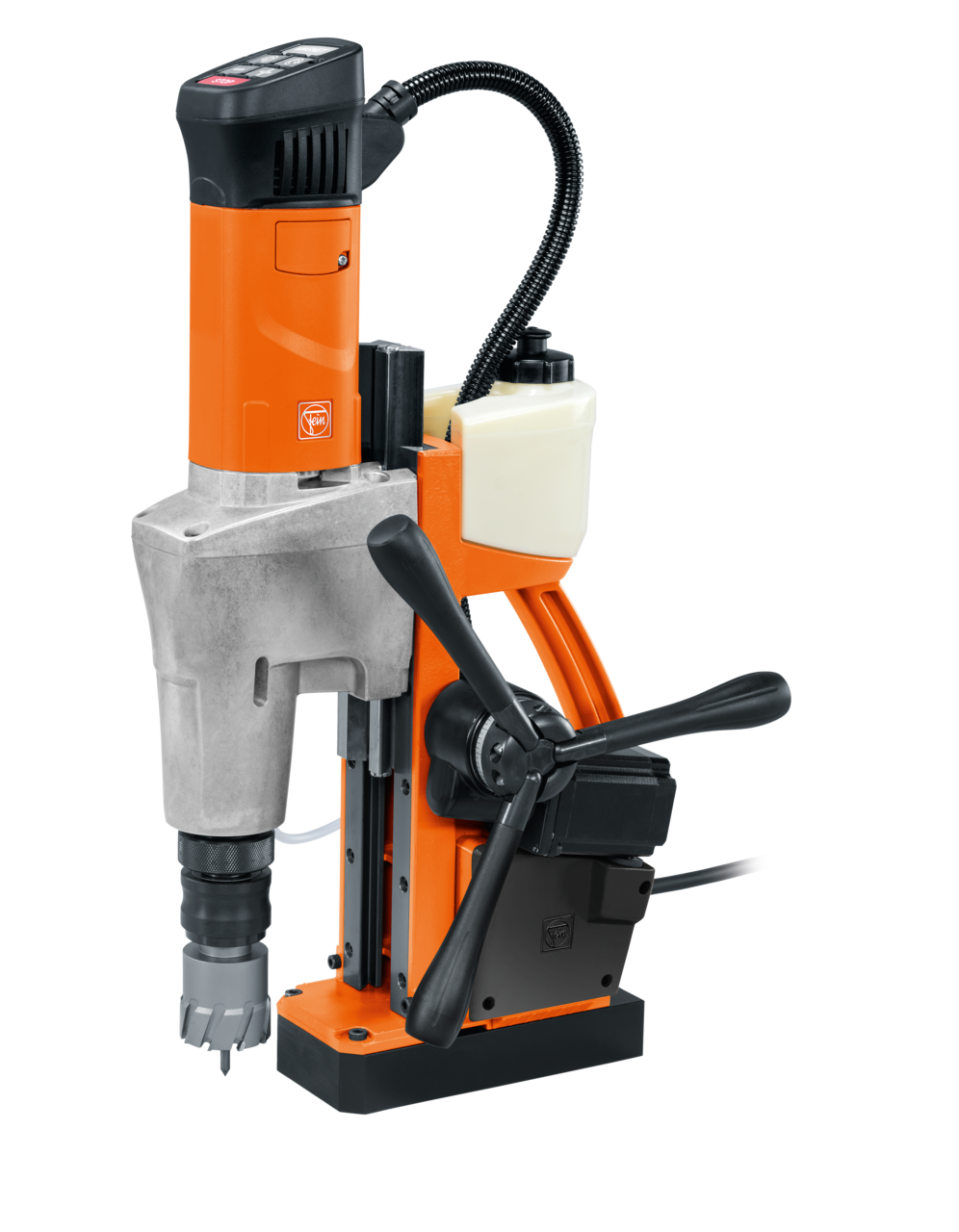

KBM 50 auto
Metal core drilling unit up to 50 mm
KBM 50 auto
Metal core drilling unit up to 50 mm

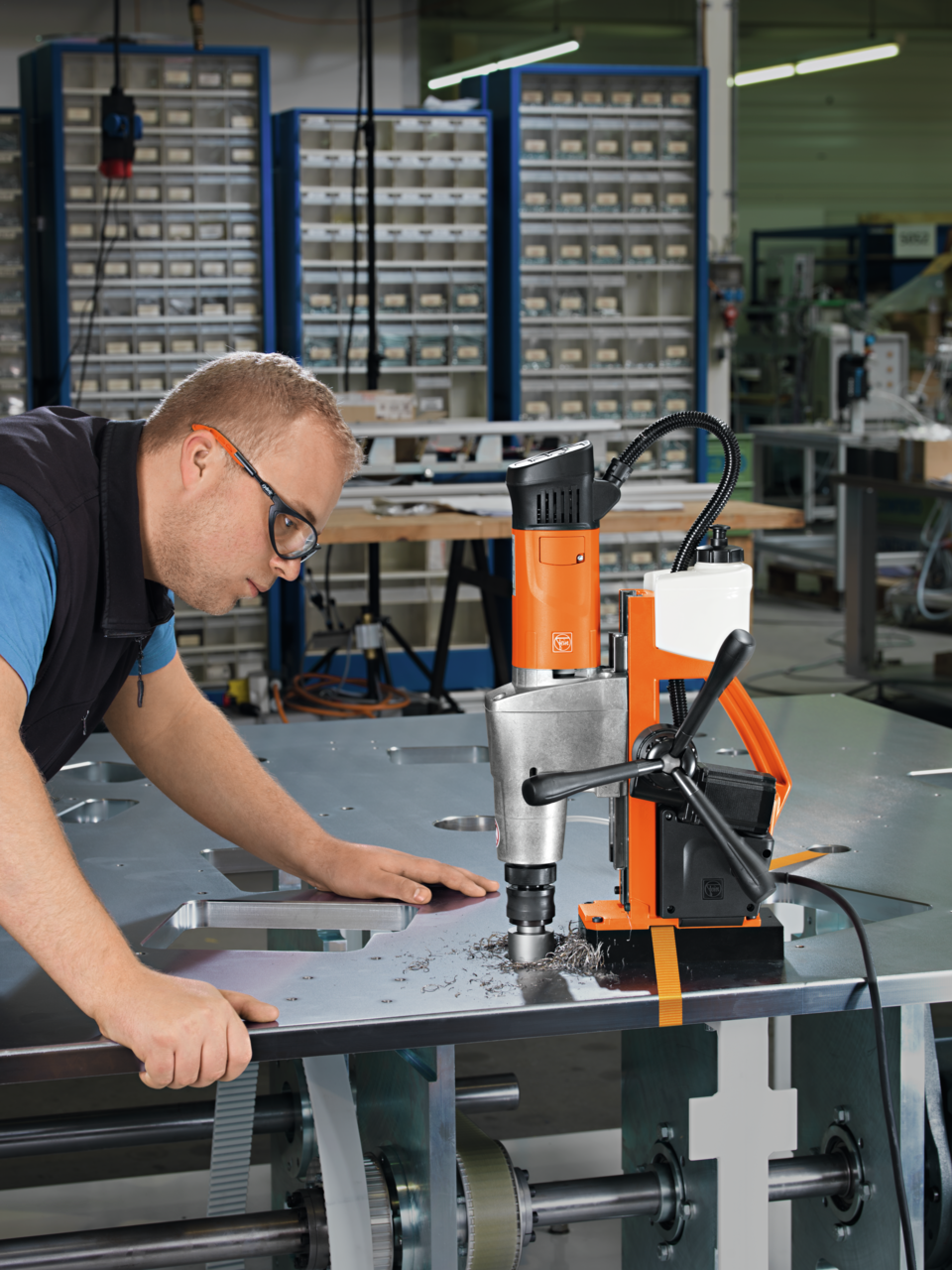

Lightweight, powerful and ingenious 2-speed auto magnetic core drill offering maximum efficiency and minimum physical strain for core drilling in the workshop and on the construction site.
Product number: 7 270 42 61 00 0
Details
- Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
- Saves time and money when producing a large number of holes thanks to the digitally controlled drill feed.
- With clockwise/anti-clockwise operation, electronic speed setting and a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
- Thanks to reproducible and timed drilling times, working hours for commissioned and serial work can be planned.
- MT3 tool mounting.
- FEIN high-power motor with stable speed.
- Simple operating concept avoids mix-ups and can be clearly seen by the user.
- High magnetic holding force.
- Convenient magnetic holding force display helps the user to reliably position the tool.
- Integrated coolant tank delivers long core drill bit lives.
- Tilt sensor.
- Speed saving "memory function".
- Personal safety switch.
- * Also available with accessories.
- ** In manual tool mode only
Technical data
Technical data
Input
1,200 W
Output
610 W
Speed, full load
rpm
Load speed in speed 1
130 - 260 rpm
Load speed in speed 2
260 - 520 rpm
Speed, no load
rpm
Tool Holder
MK 3
Carbide core drill bit max. Ø
50 mm
HSS core drill max. Ø
40 mm
Core drill, drilling depth max.
50(75)* mm mm
Twist drill max. Ø
18/23** mm mm
Tapping
M 16**
Countersinking max. Ø
50** mm mm
Reaming max. Ø
23** mm mm
Core drill holder
QuickIN
Changing the core bit
tool-free
Stroke
145 mm
Total stroke range
315 mm
Cable with plug
4 m
Weight according to EPTA
16.20 kg
Vibration and sound emission values
Sound pressure level LpA
82,1 dB
Uncertainty of measured value KpA
5 dB
Sound power level LWA
93,1 dB
Uncertainty of measured value KWA
5 dB
Sound peak value LpCpeak
96,2 dB
Uncertainty of measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
< 2,5 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads

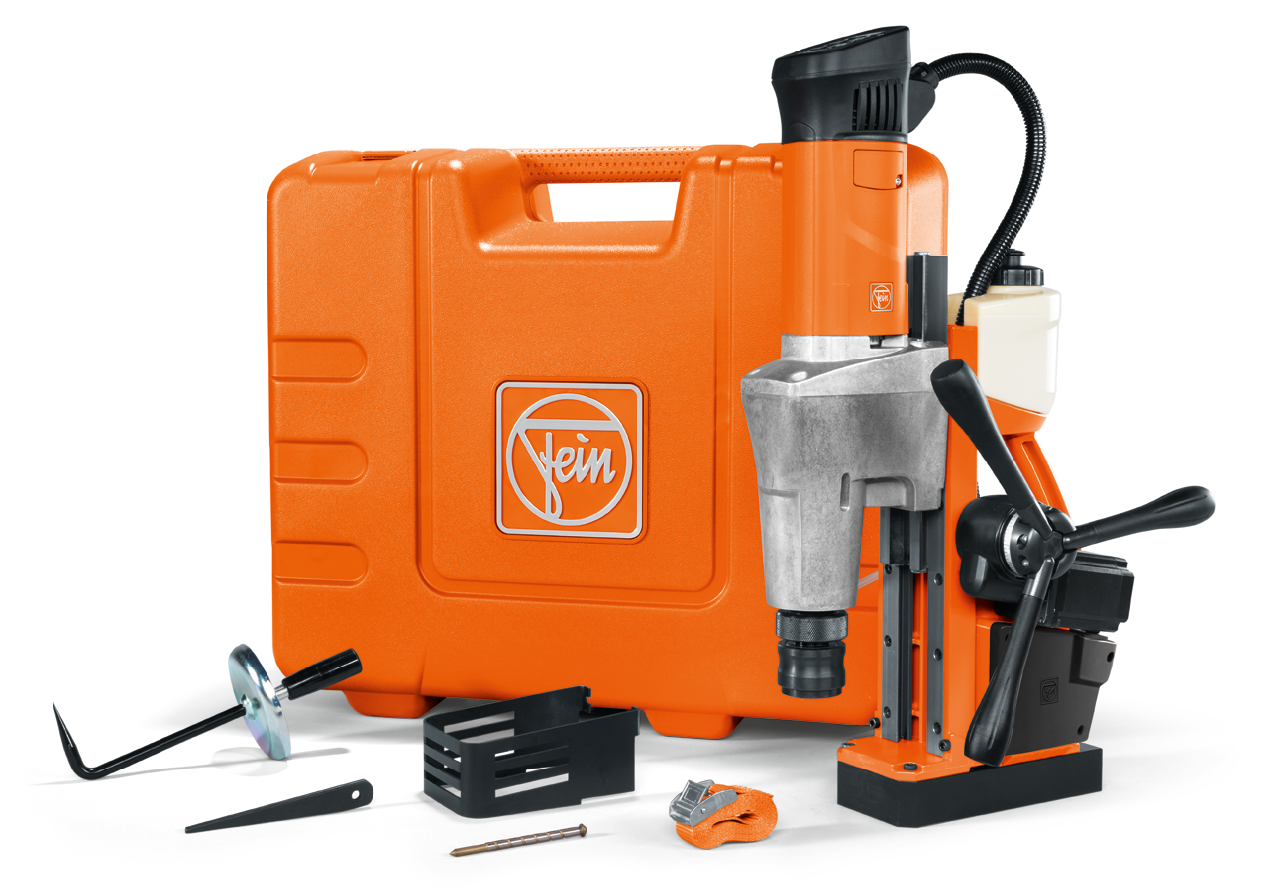

Price includes
- 1 coolant tank
- 1 lashing strap
- 1 swarf hook
- 1 centering pin
- 1 drift key
- 1 contact guard
- 1 case
Application
Product feature
- Electronic magnetic holding force
- Magnetic holding force display
- Automatic drill feed
- Reversible rotation
- Variable speed control
- Memory function
- Speed-controlled electronics (tacho)
- Tilt sensor
