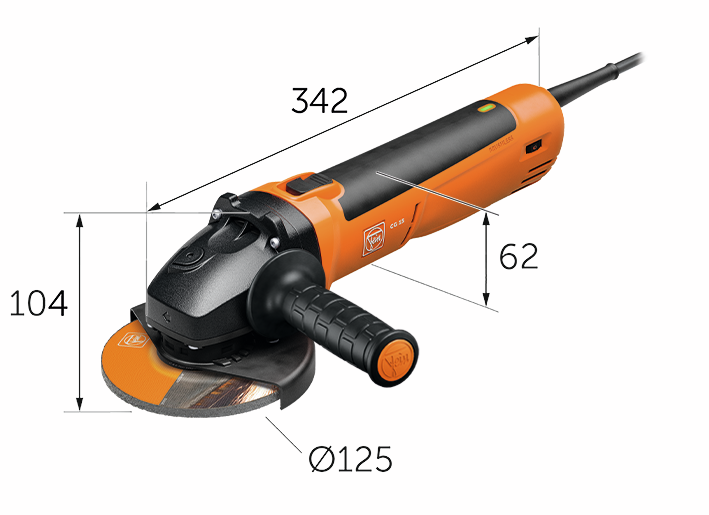

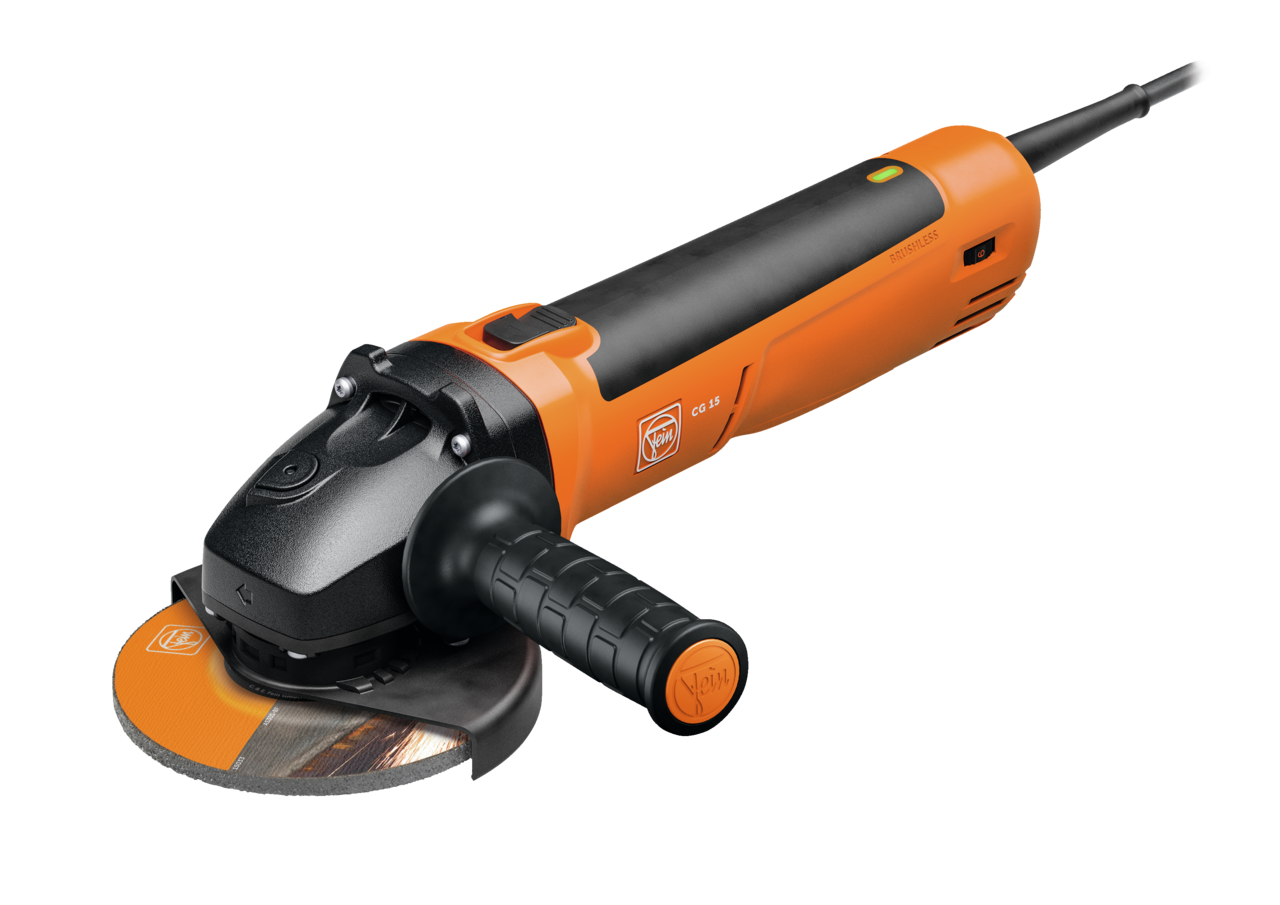

CG 15-125 BL
Compact angle grinders, Ø 125 mm
CG 15-125 BL
Compact angle grinders, Ø 125 mm
Dust-resistant, powerful, low-maintenance and long-life compact angle grinder with brushless FEIN PowerDrive motor for effective cutting, grinding and deburring work in tough working environments.
Product number: 7 225 06 60 00 0
Details
- Outstanding service life thanks to brushless FEIN PowerDrive motor with fully enclosed motor housing and motor electronics fitted separately.
- Optimum protection for the motor from aggressive ceramic and mineral dusts and therefore reduction in downtimes and maintenance costs.
- Comprehensive user protection provided by soft start, restart protection, blockage monitoring, electronic overload protection, speed preselection, kick-back monitoring, anti-vibration handle and brake.
- Optimum cooling and temperature monitoring.
- Weighs just 2.2 kg with an output power of 1050 W for an excellent power-to-weight ratio.
- Quick-clamping nut included in scope of supply for changing grinding materials in a matter of seconds and without the need for any tools.
- New anti-vibration handle improves the grip by up to 16% compared with standard handles. Any vibration is also minimised.
- Fatigue-free working thanks to narrow grip dimensions, compact design and a well-balanced low weight.
- Industrial cable H07, length 4m.
Technical data
Technical data
Input
1,500 W
Output
1,050 W
Speed, no load
3,800 - 9,000 rpm
Grinding disc Ø
125 mm
Elast. Backing pad Ø
125 mm
Flange
M 14
Cable with plug
4 m
Weight according to EPTA
2.30 kg
Vibration and sound emission values
Sound pressure level LpA
91,3 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
99,3 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
105,3 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
4,5 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
2,1 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 wheel guard
- 1 Tool-free quick-clamping nut
- 1 anti-vibration handle
- 1 key
- 1 x protective cover for cutting work
Application
Product feature
- Brake
- Soft start
- Restart protection
- Blockage monitoring
- Electronic overload protection
- Electronic speed preselection
- AutoStop dead man's switch: No
- Kick-back check: Yes
