MBS 16 X
Magnetic Drill Jigs
MBS 16 X
Magnetic Drill Jigs
Flexible magnetic drill jig for rotary drills with up to 16 mm drill capacity.
Product number: 9 03 21 223 00 0
Details
- Lightweight, compact magnetic drill jig for universal use, including drilling, tapping, reaming and countersinking.
- Double drill motor guide for use with very large drilling tools.
- High magnetic holding power and safety circuit guarantee safe working in any position.
- Integrated coolant tank with flexible jointed hose.
- Feed handwheel can be moved from one side to the other.
- Carriage height adjustable without tools.
Technical data
Input
100 W
Socket max.
16 A

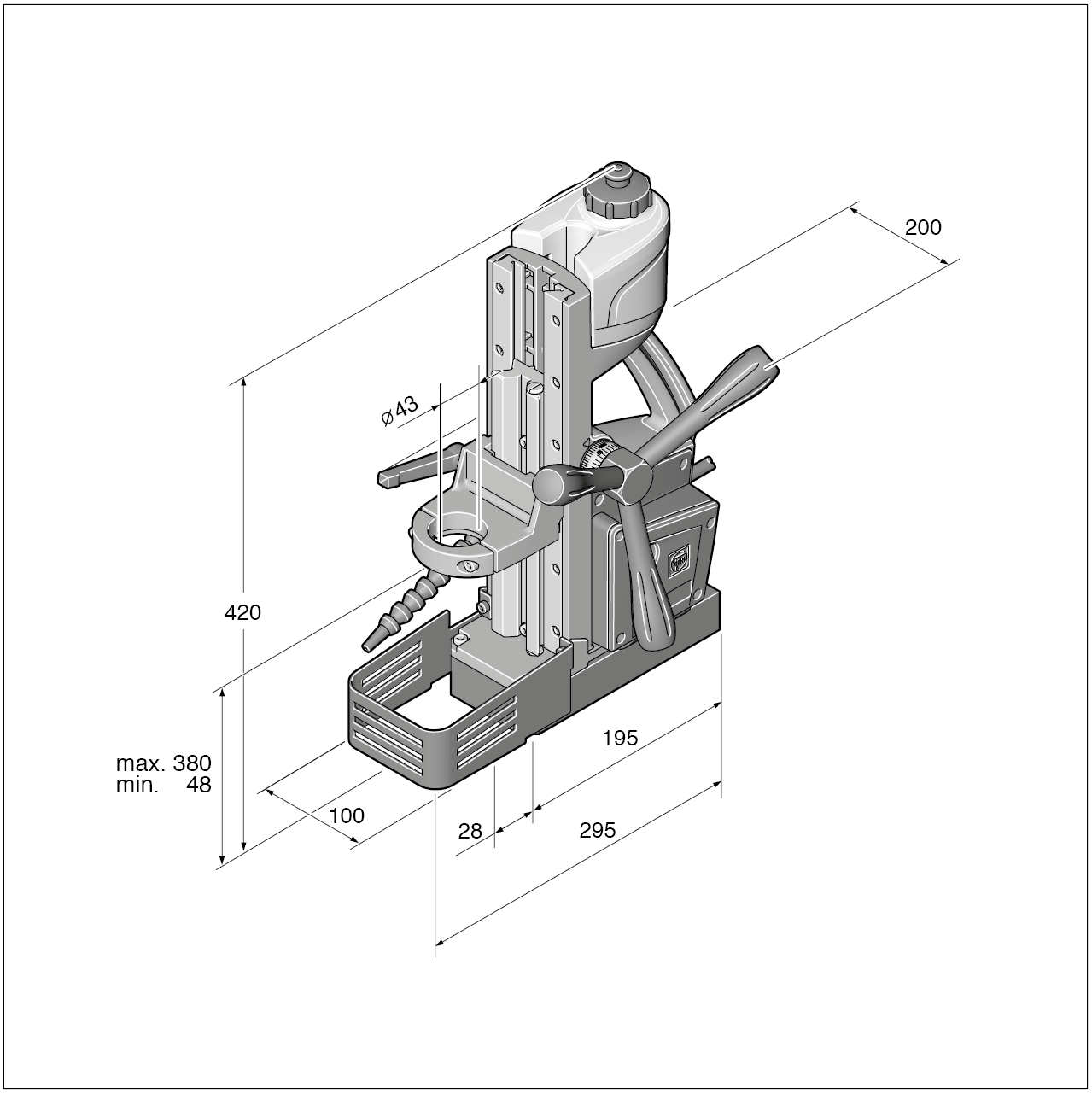

For collar Ø
43 mm
Twist drill max. Ø
16 mm
Tapping
M 12
Countersinking max. Ø
50 mm
Reaming max. Ø
16 mm
Stroke
145 mm
Total stroke range
325 mm
Magnetic holding power
12,500 N
Magnetic foot dimensions
195 x 90 mm
Cable with plug
4 m
Weight according to EPTA
9.00 kg
Downloads
Price includes
- 1 coolant tank
- 1 lashing strap
- 1 contact guard
