ASCD 18-300 W2 AS Set 5 Ah
Cordless impact wrench/driver
ASCD 18-300 W2 AS Set 5 Ah
Cordless impact wrench/driver
Up to max. 290 Nm with brushless motor and 6-stage torque setting. For metric screwdriving applications up to M18.
Product number: 7 115 10 66 00 0
Details
- For extreme precision work: The ASCD 18-300 W2 AS with electronic torque setting (6 levels) prevents screw heads from shearing off.
- VARIO 1/2" adapter, available as an extra and developed by FEIN, suitable for all VARIO accessories for simple and mechanical drilling, countersinking, tapping, recutting and cleaning of through holes up to a maximum of M18. Turns the impact wrench/driver into a tapper, thereby adding a whole new tool to the range of applications.
- Brushless FEIN PowerDrive motor with 30 % higher efficiency and long service life.
- 1/2" square for holding sockets.
- Metric screws up to M18 (8.8).
- 10% more torque in reverse running to loosen screws which are extremely tight.
- Robust solid metal impact gear.
- Contact guard on gearbox head.
- Up to 750 screw connections (M18) with one battery charge (GBA 18 V 5 Ah).
- Compact design.
- Bit and belt holder on the side for ergonomic and flexible handling.
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
- Ideally equipped for every form of use. Mobile working with the L-BOXX system.
Technical data
Technical data
Battery voltage
18 V
Battery capacity
5 Ah
Battery compatibility
Li-ion / ProCORE Li-ion
Battery interface
18 V AMPShare
Motor
brushless
Speed, no load
0 - 1700 rpm
Impacts
0 - 3400 rpm
Max. torque
290 Nm
Torque levels
6
Tool Holder
1/2" Outer square
Max. metric screw
M18 (8.8)
Wood screw Ø
8 x 300 mm
Weight without storage battery
1.20 kg
Vibration and sound emission values
Sound pressure level LpA
99,2 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
107,2 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
121,5 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh 15,0 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads

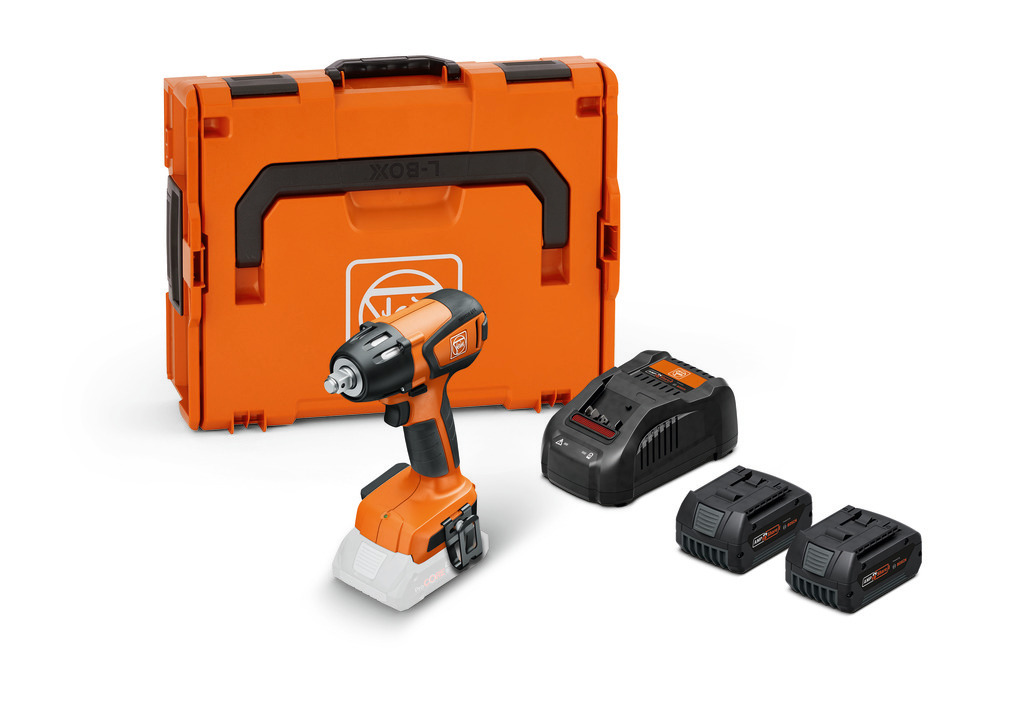

Price includes
- 1 belt clip
- 1 magnetic bit storage
- 1 tool case (L-Boxx 136)
- 2 Li-Ion storage battery GBA 18V 5.0 Ah AS
- 1 rapid charger GAL 1880 CV AS
