ASCD 18-300 W2 AS Impact-tapping Set
User set contains a cordless impact wrench/driver
ASCD 18-300 W2 AS Impact-tapping Set
User set contains a cordless impact wrench/driver
Cordless impact wrench/driver with 1/2" square head tool mounting. The user set includes 1/2" VARIO adapter, 5-part FEIN VARIO tapper set for through holes and circlip. Not including battery or charger.
Product number: 7 115 10 65 00 0
Details
- For extreme precision work: The ASCD 18-300 W2 AS with electronic torque setting (6 levels) prevents screw heads from shearing off.
- Impact wrench/driver-compatible VARIO adapter turns the impact wrench/driver into a tapper, thereby adding a whole new tool to the range of applications.
- The 5-part FEIN VARIO tapper set covers sizes M8, M10, M12, M14, M16.
- VARIO tapper for through holes. Long service life, thanks to high material strength (64 HRC), special cutting geometries suited to impact wrench/drivers and a TiAlN (titanium-aluminium-nitride) coating. The bits experience low levels of wear and friction as well as being heat-resistant to 800 °C. Thanks to the high speeds and number of blows, they can therefore be used in steel up to 900 N/mm².
- Brushless FEIN PowerDrive motor with 30 % higher efficiency and long service life.
- 1/2" square for holding sockets.
- Metric screws up to M18 (8.8).
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Maximum work progress with AMPShare 18V storage batteries: COOLPACK 1.0 technology ensures a longer storage battery life compared with batteries without COOLPACK technology and therefore makes longer operating periods possible. ECP protects the storage battery against overload, overheating and total discharge.
- Ideally equipped for every form of use. Mobile working with the L-BOXX system.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / ProCORE Li-ion
Battery interface
18 V AMPShare
Motor
brushless
Speed, no load
0 - 1700 rpm
Impacts
0 - 3400 rpm
Max. torque
290 Nm
Torque levels
6
Tool Holder
1/2" Outer square
Max. metric screw
M18 (8.8)
Wood screw Ø
8x300 mm
Weight without storage battery
1.20 kg
Vibration and sound emission values
Sound pressure level LpA
99,2 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
107,2 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
121,5 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh 15,0 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes

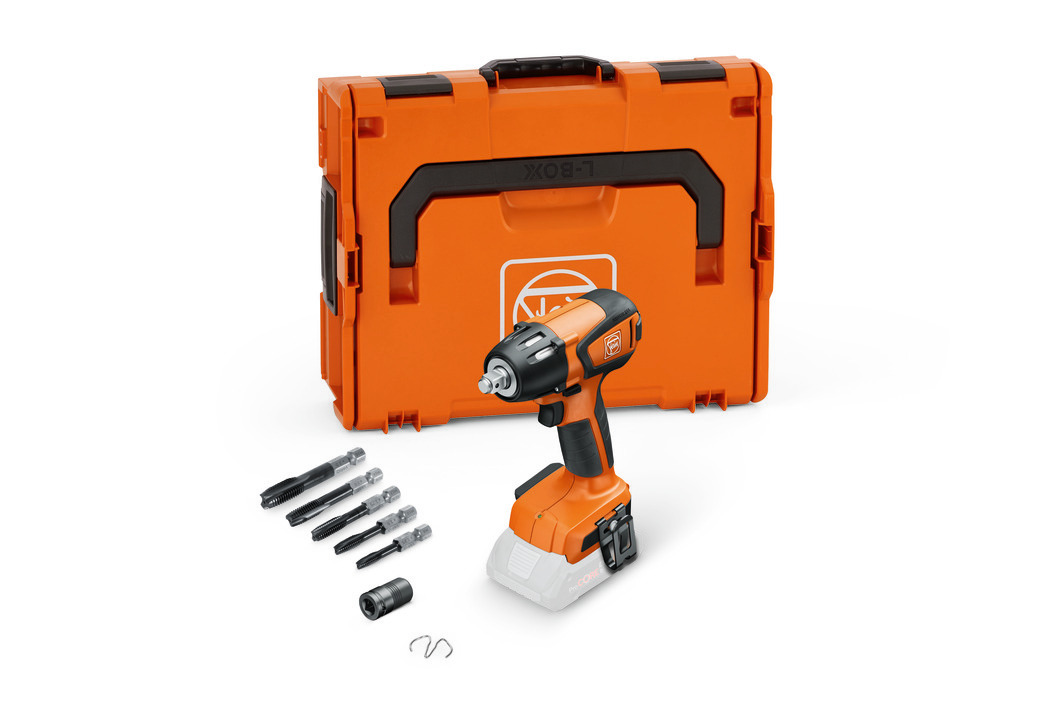

- 1 x ASCD 18-300 W2 AS (including belt clip, bit holder)
- 1 X 1/2" VARIO adapter
- 1 x 5-part VARIO tapper set (M8, M10, M12, M14, M16)
- 1 x locking spring
- 1 tool case (L-Boxx 136)
