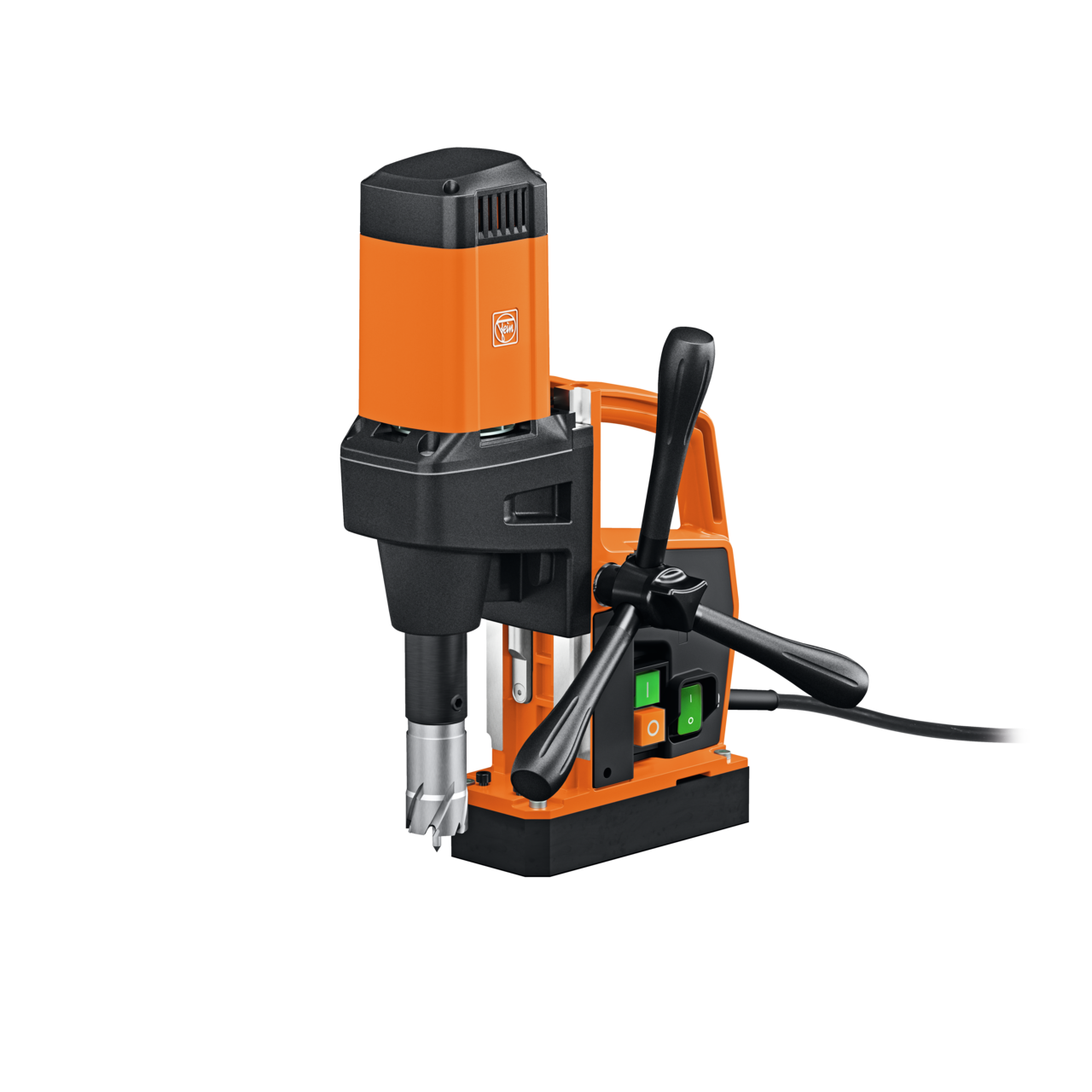

KBE 32
Eco magnetic core drill for up to 32 mm
KBE 32
Eco magnetic core drill for up to 32 mm
Compact and precise single-speed Endurance magnetic core drill with basic functionality for core drilling in the workshop and on the construction site.
Product number: 7 270 94 61 24 0
Details
- For tough use thanks to the outstanding quality of workmanship and the internal motor cable guide.
- Extremely durable gearbox design offering an operating time of up to 400 hours for an uncompromising service life.
- Lightweight with FEIN high-power motor and high torque for all core drilling tasks
- Excellent price / performance ratio.
- Internal cooling.
- High magnetic holding force.
- Feed handwheel can be moved from one side to the other.
- Good accessibility in cramped operating situations.
- Personal safety switch.
Technical data
Input
1,200 W
Output
770 W
Speed, full load
450 rpm
Speed, no load
700 rpm
Carbide core drill bit max. Ø
32 mm
HSS core drill max. Ø
32 mm
Core drill, drilling depth max.
50 mm
Core drill holder
3/4 in Weldon
Stroke
90 mm
Magnetic holding power
10,000 N
Cable with plug
3 m
Weight according to EPTA
10.80 kg
Downloads

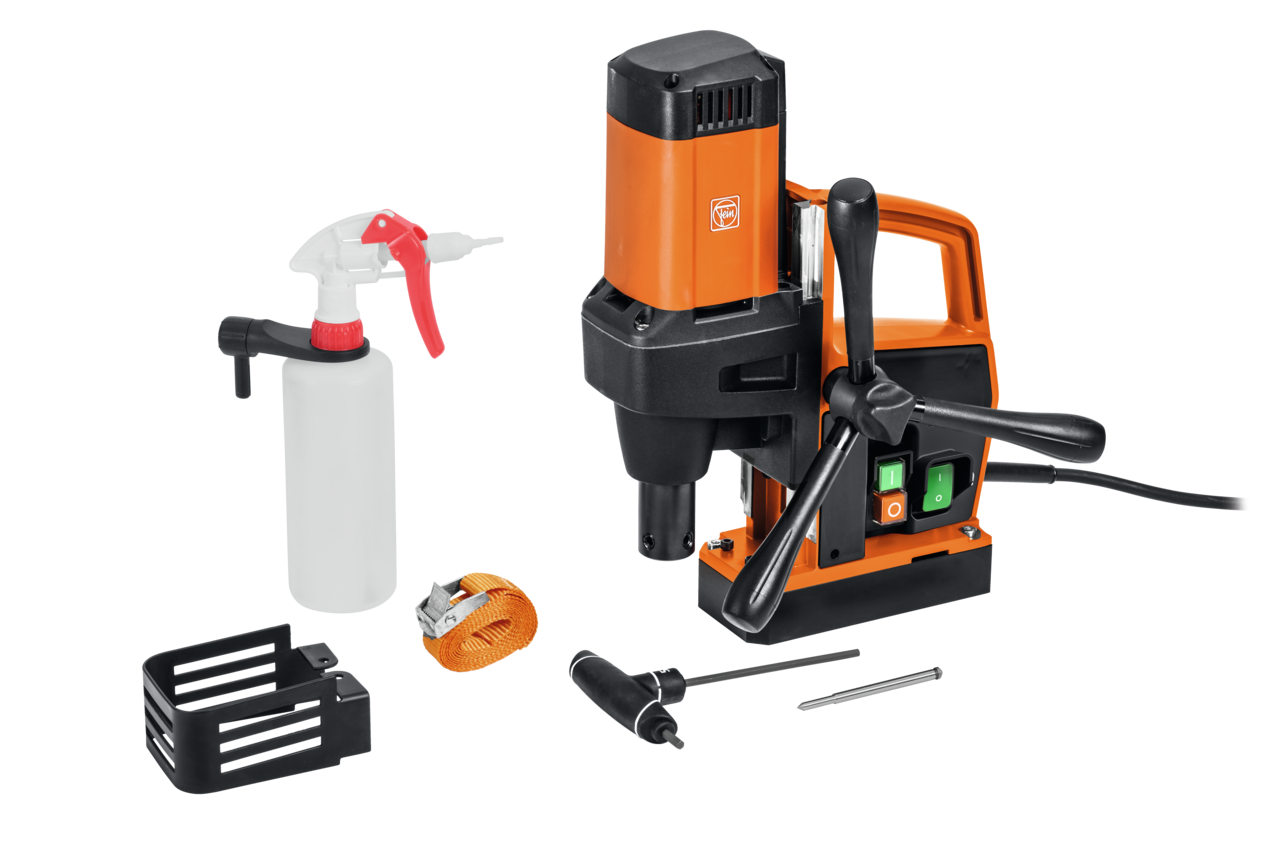

Price includes
- 1 hand pump
- 1 bottle holder
- 1 lashing strap
- 1 centring pin 100 mm
- 1 contact guard
- 1 socket head wrench 5 mm
- 1 case
Application
Product feature
- Feed handwheel can be moved from one side to the other
