KBC 36 MAGFORCE (230V)
Compact magnetic core drill up to 36 mm
KBC 36 MAGFORCE (230V)
Compact magnetic core drill up to 36 mm

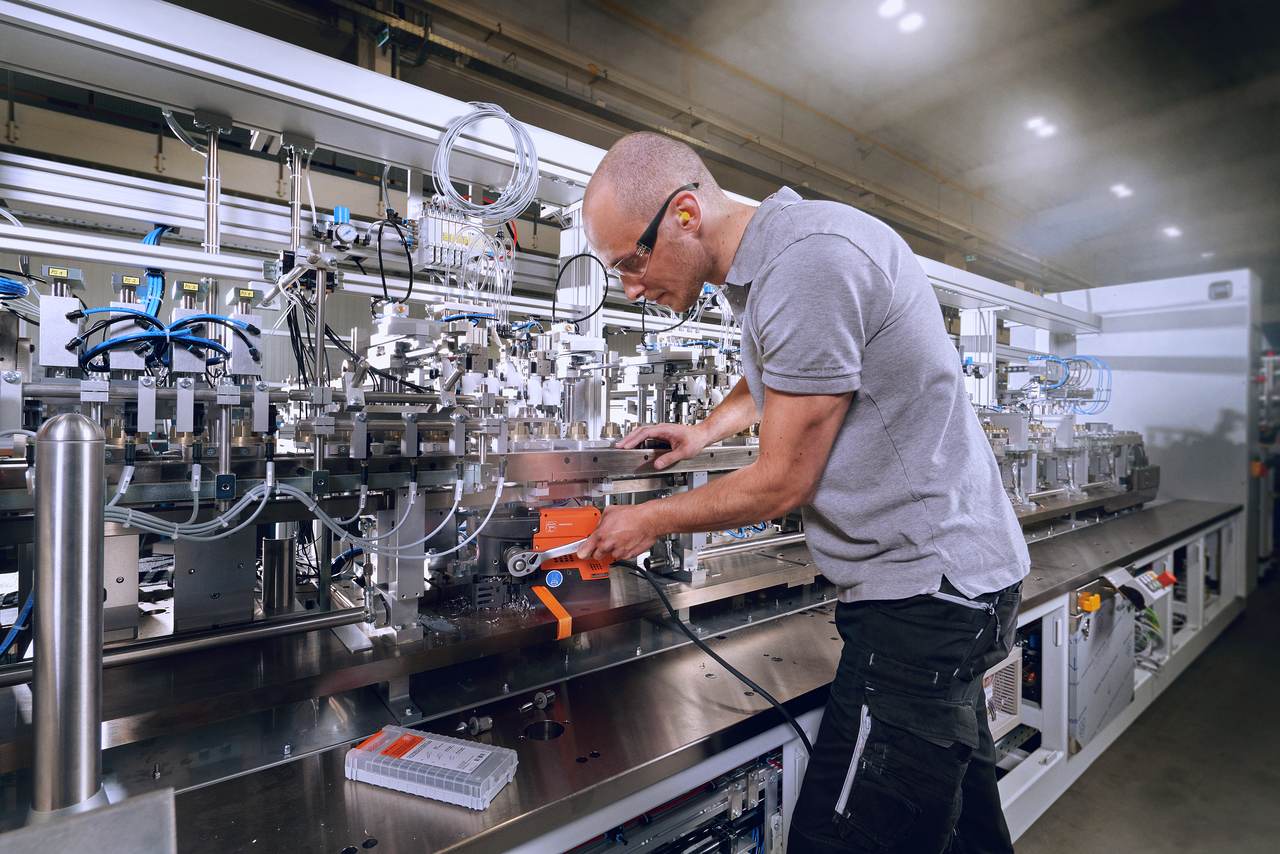

Extremely compact and lightweight single-speed compact magnetic core drill with minimal dimensions, ideal for use in confined spaces in the workshop and on site.
Product number: 7 273 23 62 24 0
Details

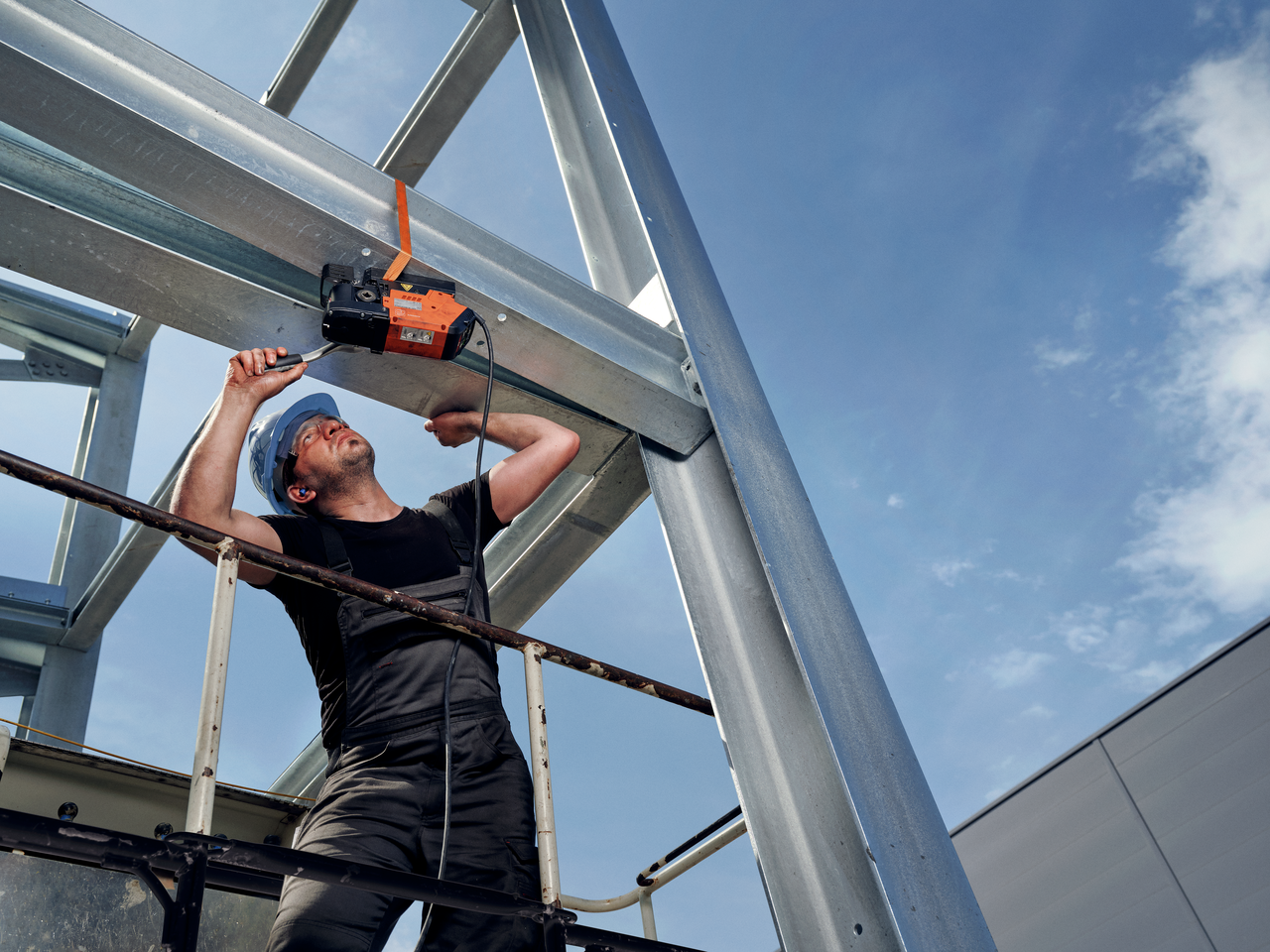

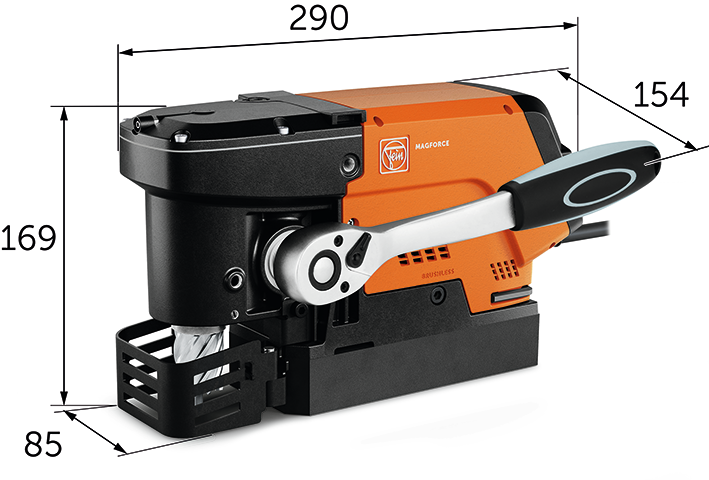

- Extremely compact and lightweight for working in confined and hard-to-reach areas – including vertically and overhead – thanks to a height of 169 mm, a length of 290 mm and a weight of 8.5 kg.
- Extremely low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results in tough use in industry and manual trades.
- Very powerful and maintenance-free 1,200 W high-performance brushless motor with high speed stability for consistently high work progress, as well as forward/reverse rotation and electronic speed control for all drilling applications such as core drilling, spiral drilling, thread cutting and countersinking.
- High gearbox positioning for optimum view of the drilling point.
- Ample installation space beneath the drill spindle with a stroke range of 46 mm.

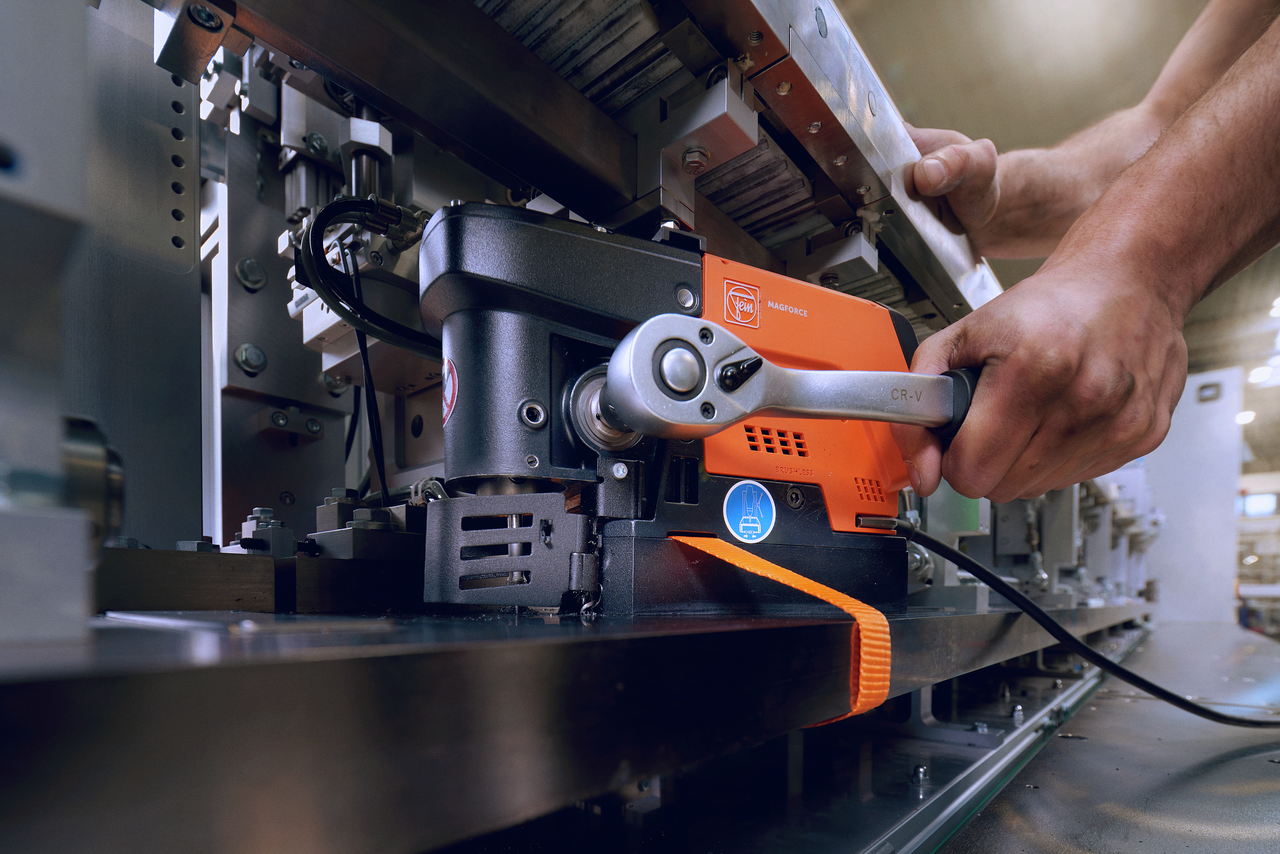

- Space-saving operation on both sides with ratchet.
- Drive shaft combines a 1/2-inch square drive and an 8 mm hex socket.
- Intuitive and foolproof operating concept within the user’s field of vision.
- Convenient magnetic holding force display helps the user to reliably position the tool.
- Tilt sensor stops the drill motor when the tool slips or tilts.
- Integrated carrying handle.
- Speed saving "memory function".
- Slot for a 5 mm Allen key directly on the machine.

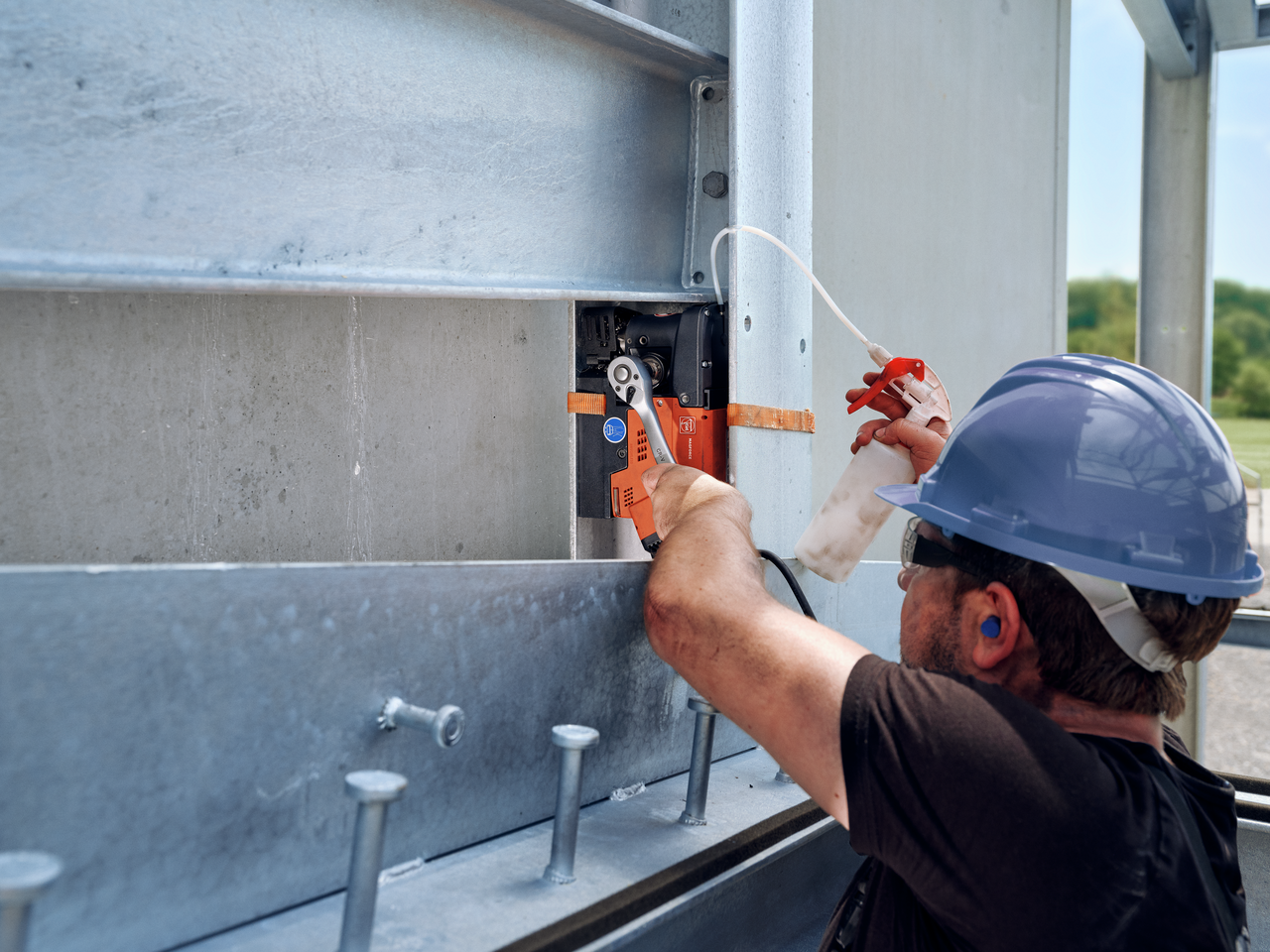

- Internal cooling lubrication by means of hand pump.
- Personal safety switch.
- Ideally equipped for every form of use. Mobile working with the L-BOXX system.
Technical data
Technical data
Input
1,200 W
Output
680 W
Core drill holder
3/4 in Weldon
Speed, full load
130 - 610 rpm
Speed, no load
130 - 660 rpm
Carbide cutter max. dia.
36 mm
HSS core drill max. Ø
36 mm
Core drill, drilling depth max.
35 mm
Twist drill max. Ø
16 mm
Tapping
M 12
Countersinking max. Ø
32 mm
Width across corners
40 mm
Height
169 mm
Stroke
46 mm
Magnetic holding power
10,000 N
Magnetic foot dimensions
175 x 80 mm
Cable with plug
3 m
Weight
8.50 kg
Vibration and sound emission values
Sound pressure level LpA
91,5 dB
Uncertainty of measured value KpA
5 dB
Sound power level LWA
104,5 dB
Uncertainty of measured value KWA
5 dB
Sound peak value LpCpeak
101,8 dB
Uncertainty of measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
ah,D = <2,5 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 magnetic core drill
- 1 coolant tank
- 1 lashing strap
- 1 chip hook
- 1 centring pin, diameter of 6.35 x 100 mm
- 1 contact guard
- 1 case
Application
Product feature
- Magnetic holding force display
- Reversible rotation
- Variable speed control
- Memory function
- Speed-controlled electronics (tacho)
- Tilt sensor
