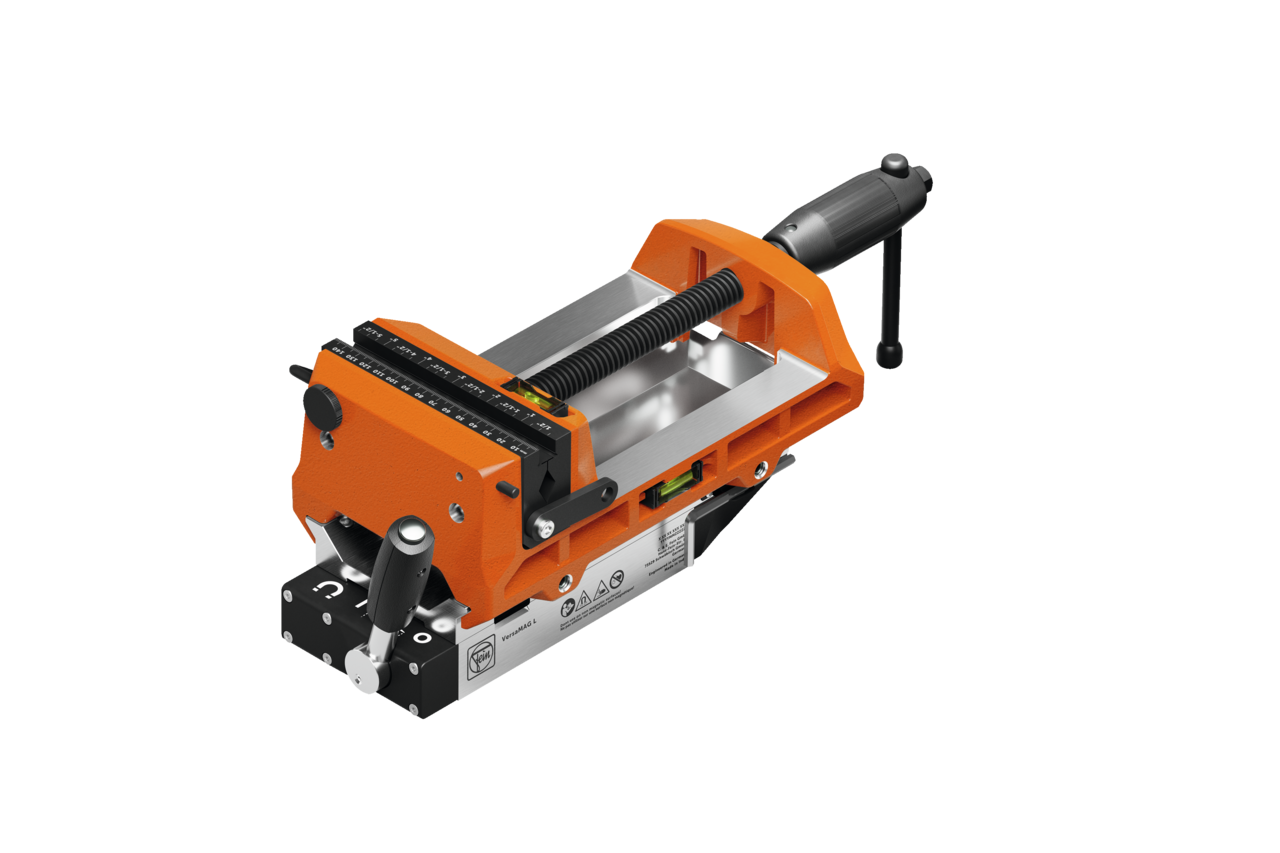

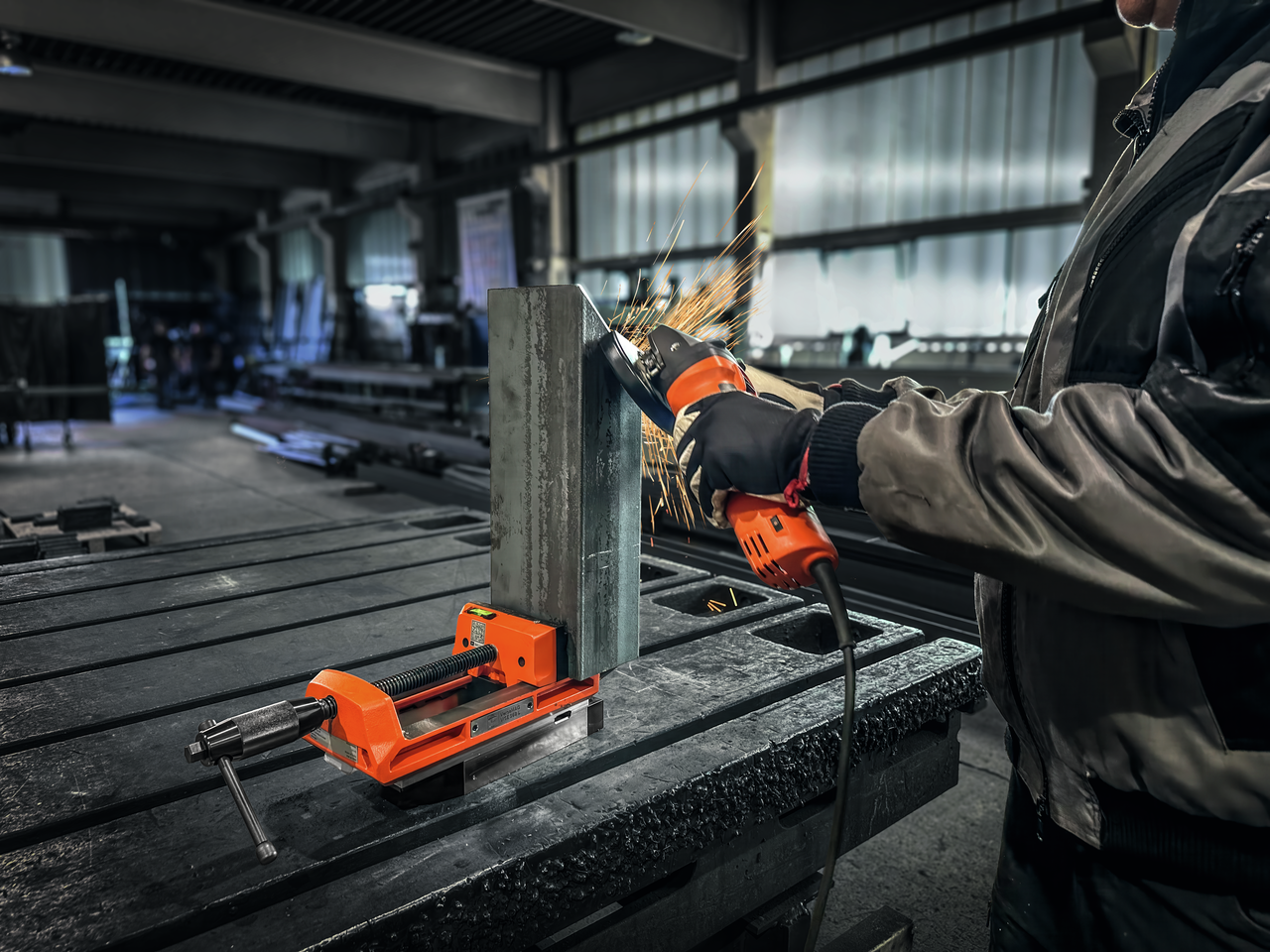

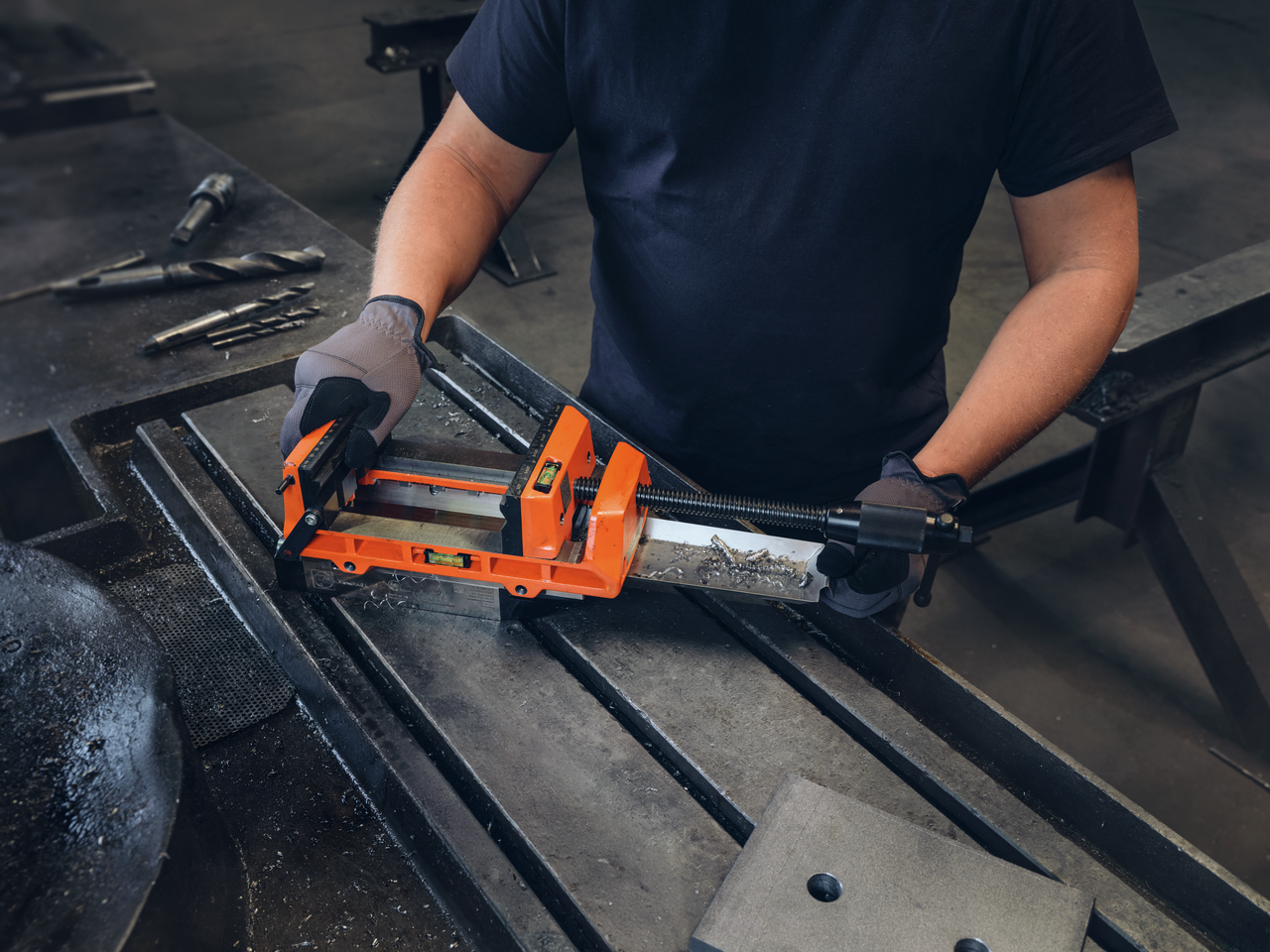

FEIN VersaMAG VISE 160 L SET magnetic vice
Magnetic vise with a clamping width of 160 mm and jaw width of 150 mm
FEIN VersaMAG VISE 160 L SET magnetic vice
Magnetic vise with a clamping width of 160 mm and jaw width of 150 mm
Mobile vice with permanent magnet – can be positioned quickly and flexibly on magnetisable surfaces. For secure clamping of various components.
Product number: 9 91 00 001 35 7
Details
- Flexibility: Precisely adjustable thanks to a finely adjustable permanent magnet, for exact work. Clamping range up to 160 mm – ideal for large components.
- Productivity: Ready for use up to 10 times faster than conventional systems – minimal set-up times, maximum efficiency.

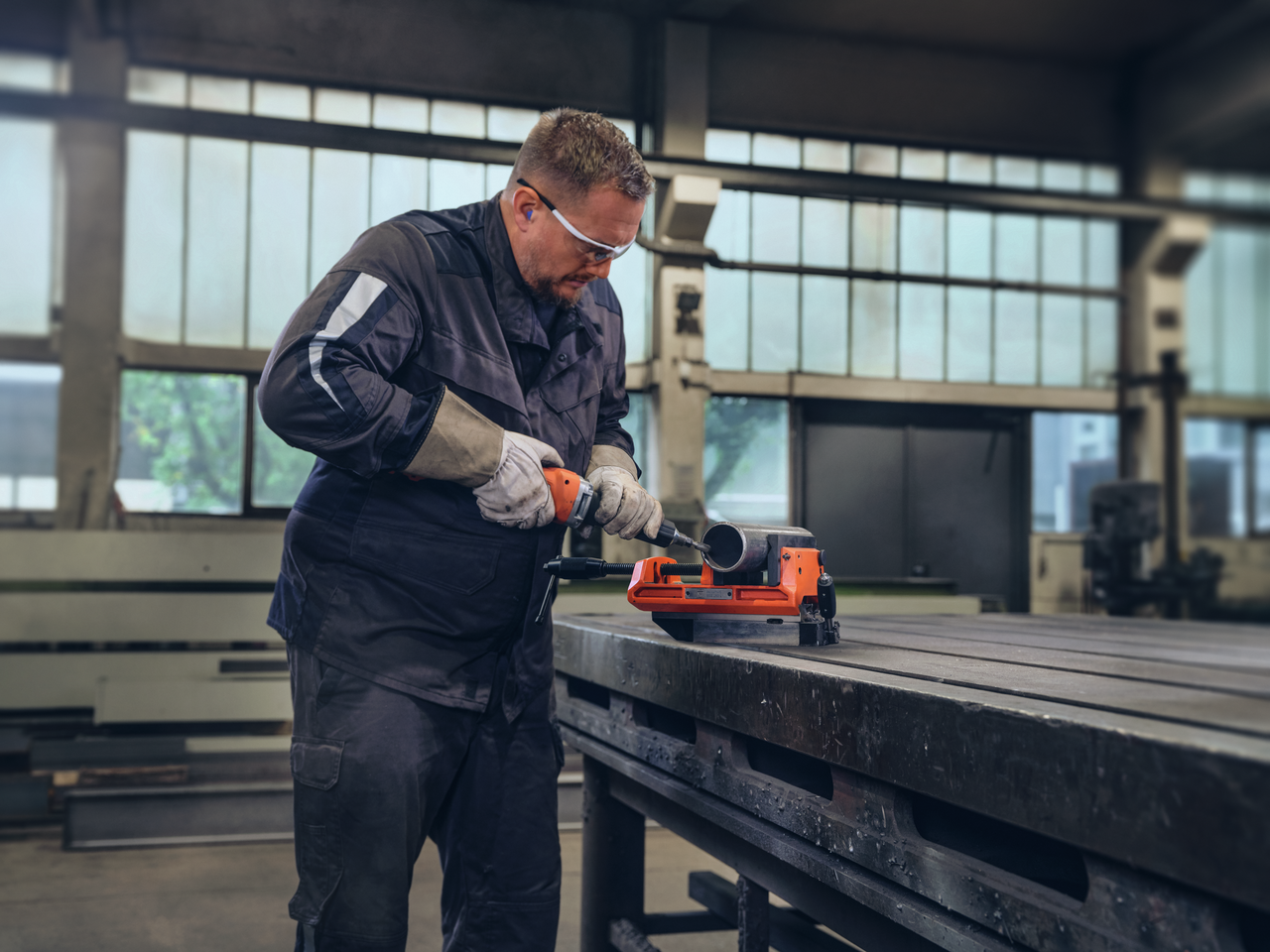

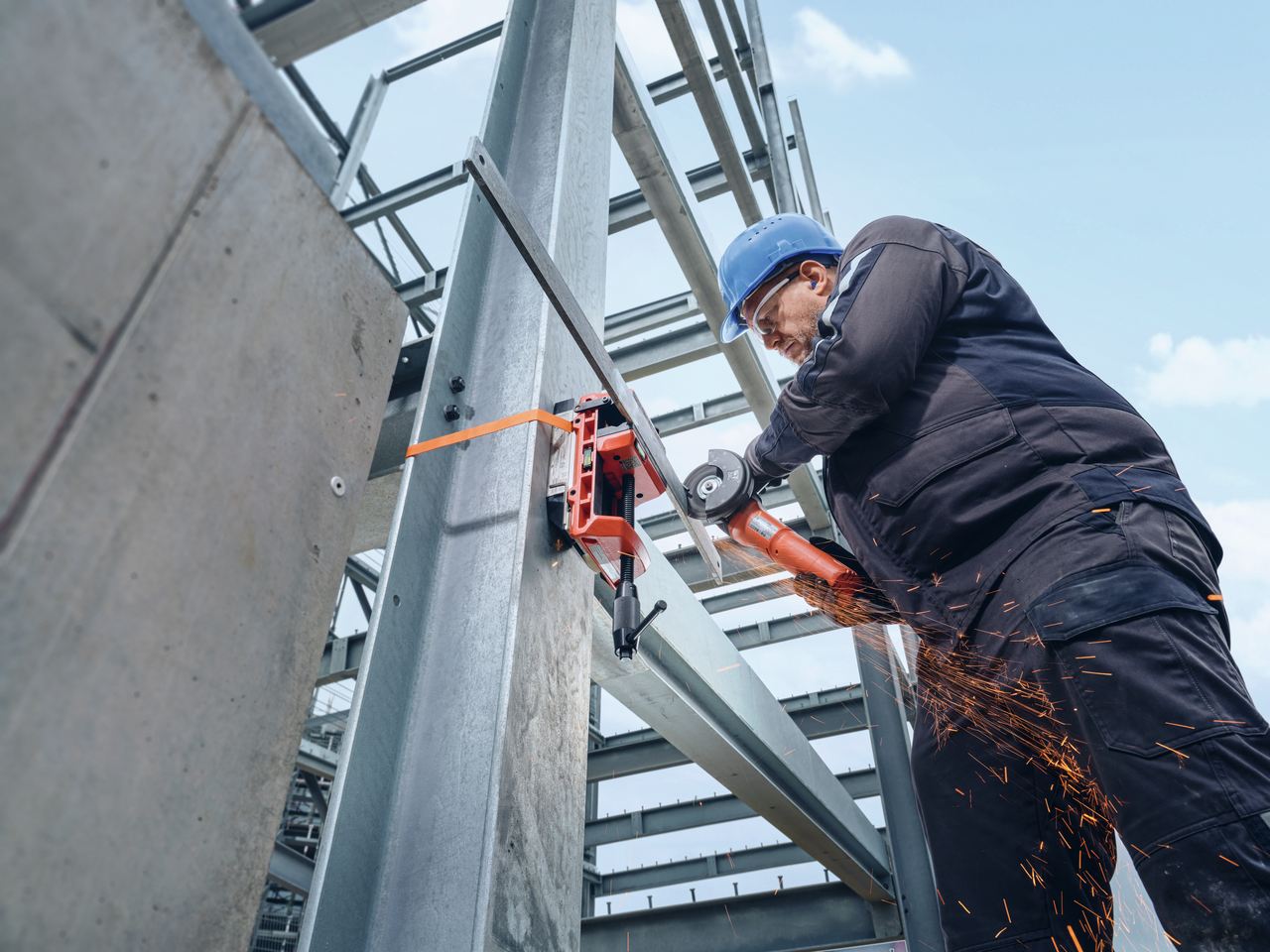

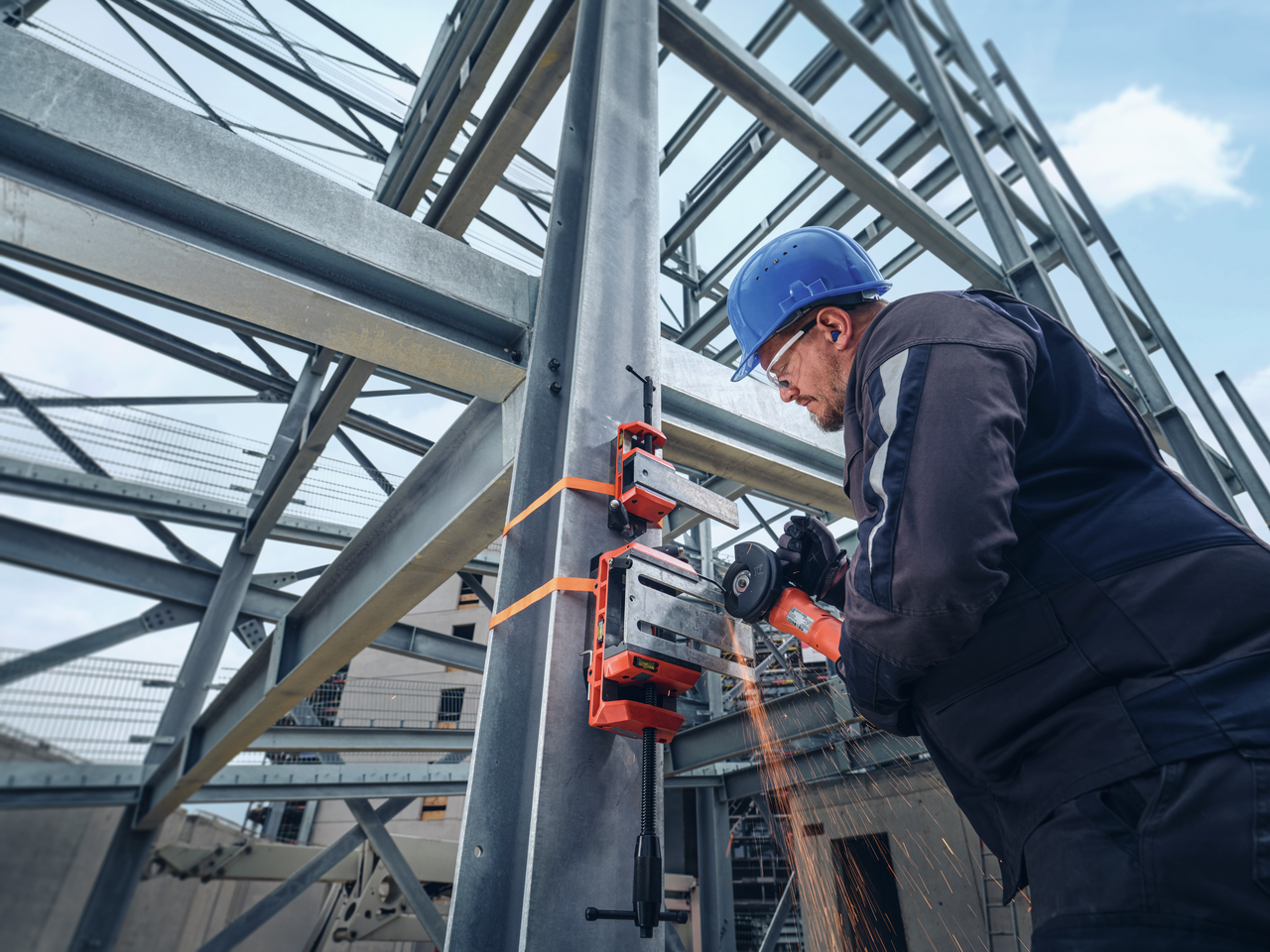

- Mobility: Full freedom of movement on all magnetisable surfaces – ideal for quick reworking, even directly on the construction site.

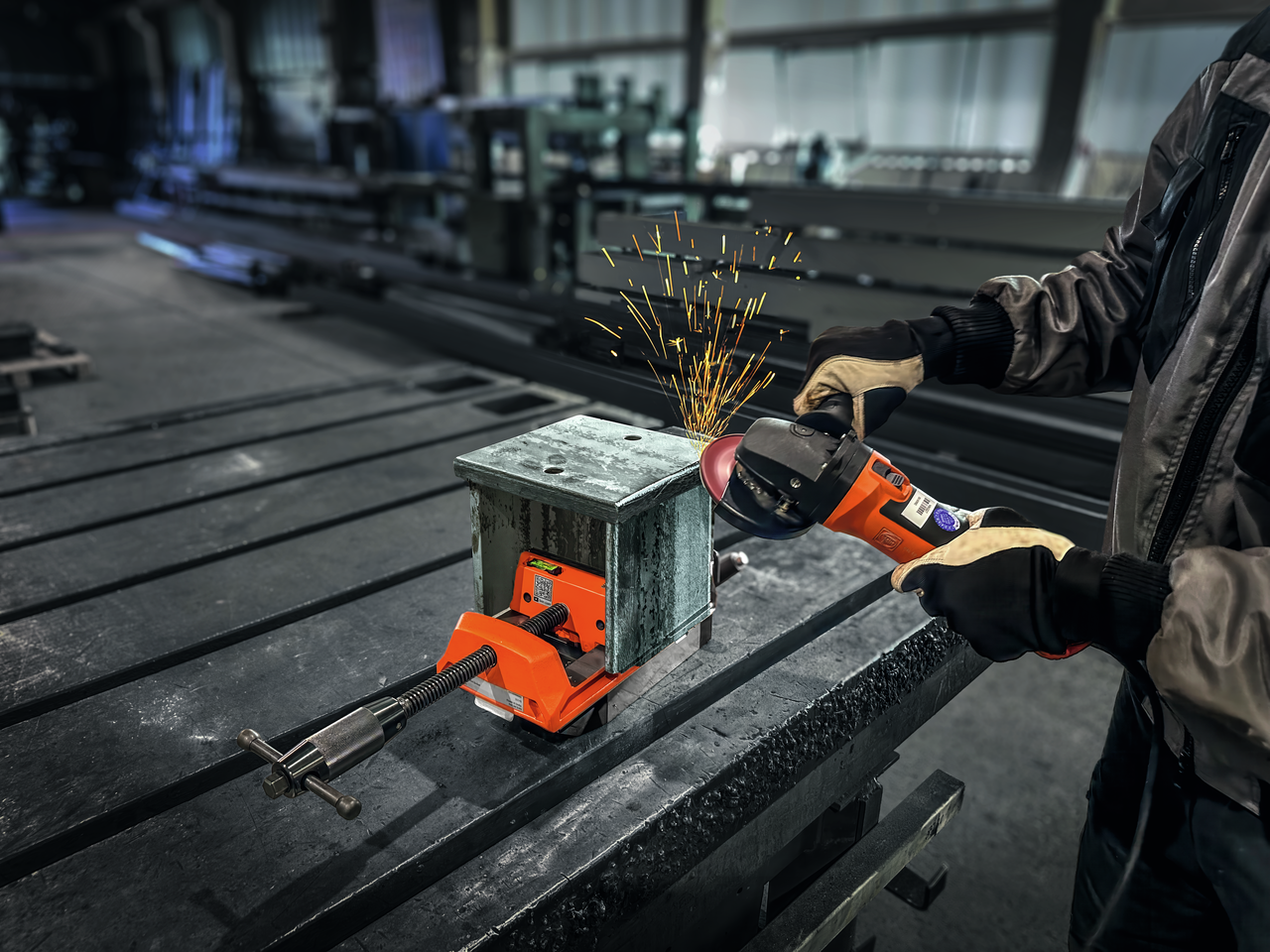

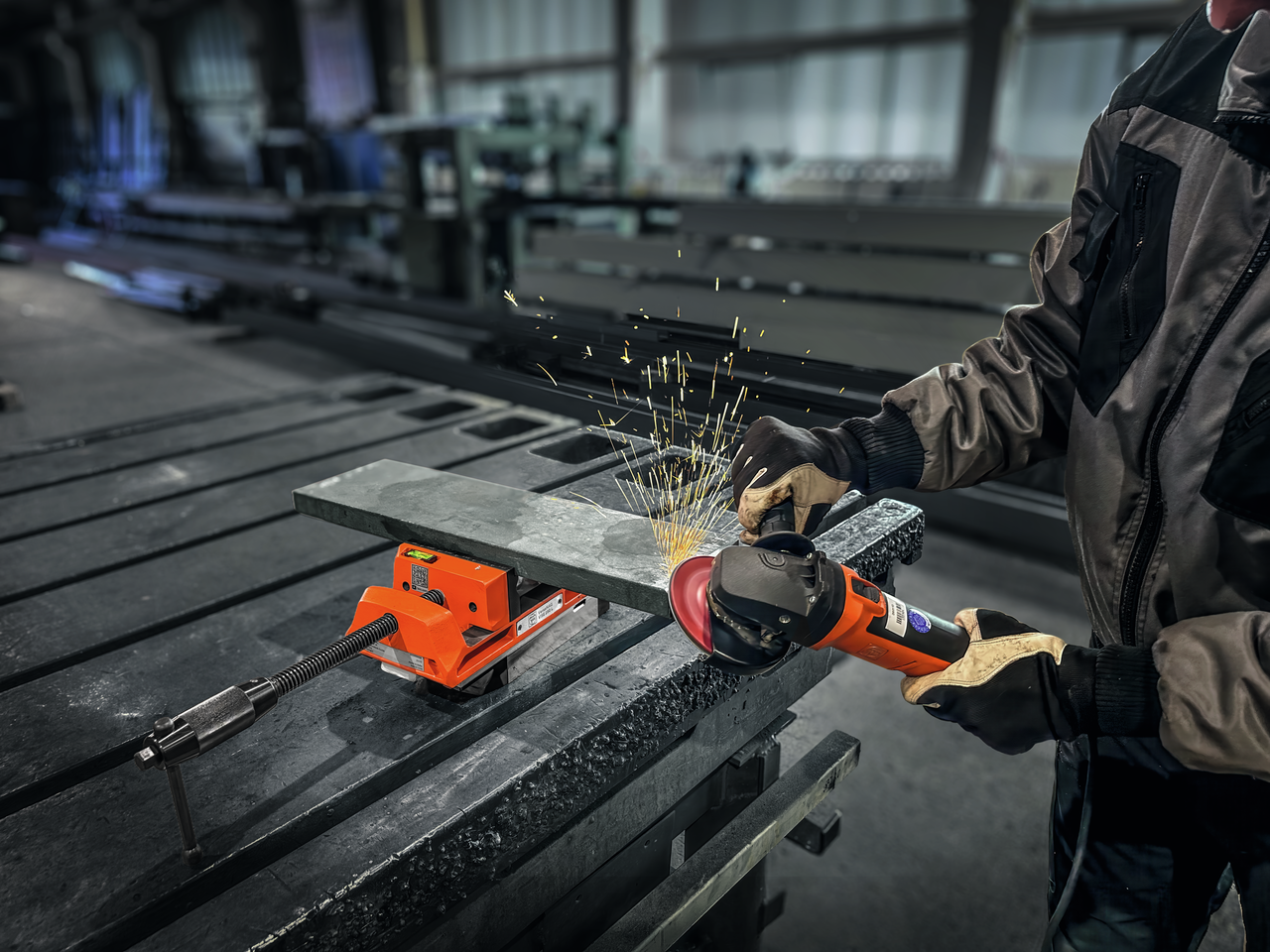

- Work safety: Secure clamping for hands-free working – for more control, less risk and maximum safety.
- 12,500 N thanks to innovative 3-rotor system (from 4 mm material thickness with reduced holding force)
- Series production: With component and depth stop for precise cutting to length.
- Accessories: Raising and protective jaws available.
- Modular: Can be converted into a mobile welding table.
- Cleaning: Chip tray for easy emptying.
- Comfort: Ergonomic spindle handle for high clamping force and easy operation.
Technical data
clamping width
160 mm

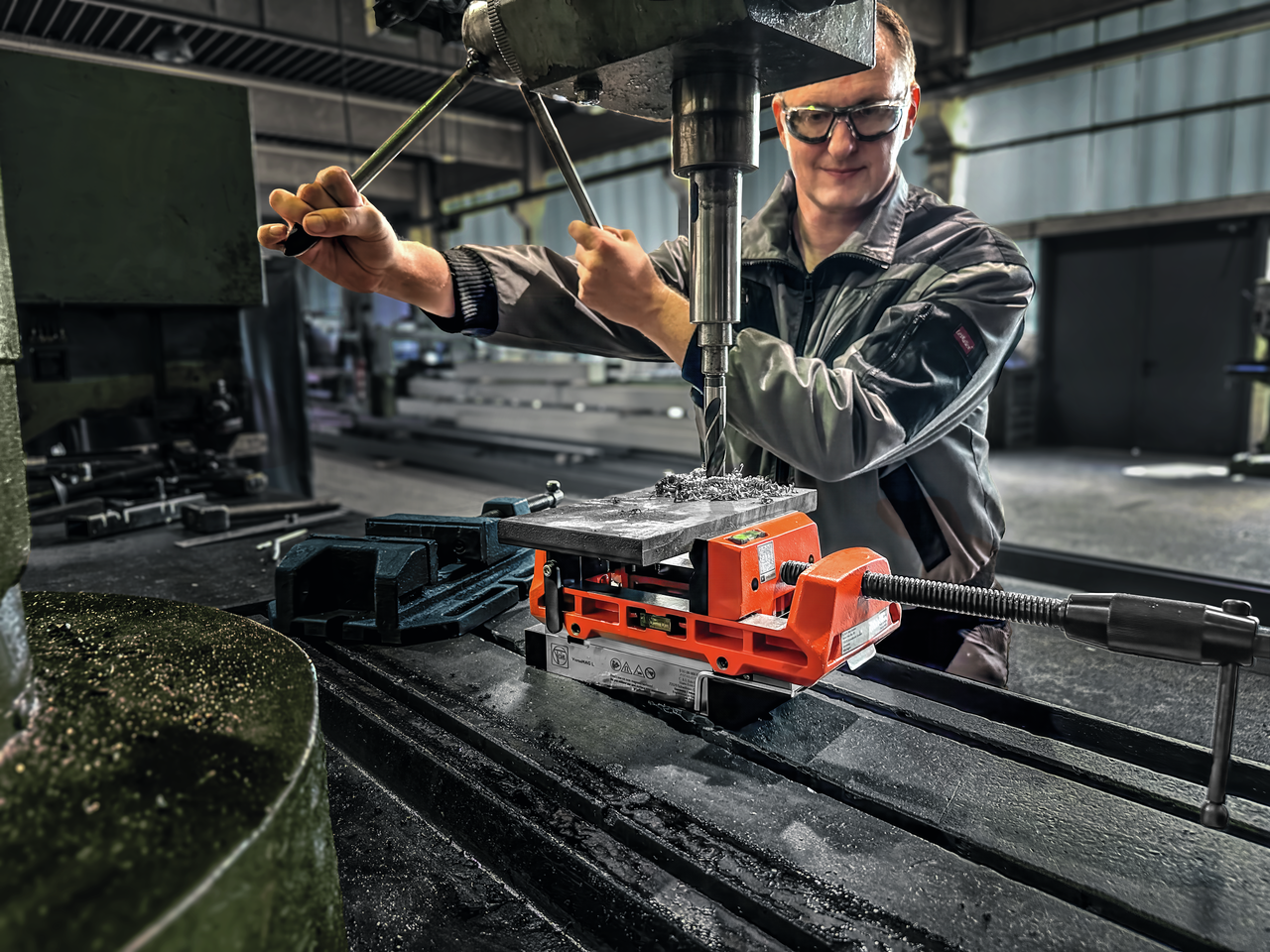

Cutter max. dia.
40 mm
drilling depth max.
100 mm
Projection length (at 1 kN feed force)
100 mm
Twist drill max. Ø
30 mm
Jaw height
60 mm
Jaw width
150 mm

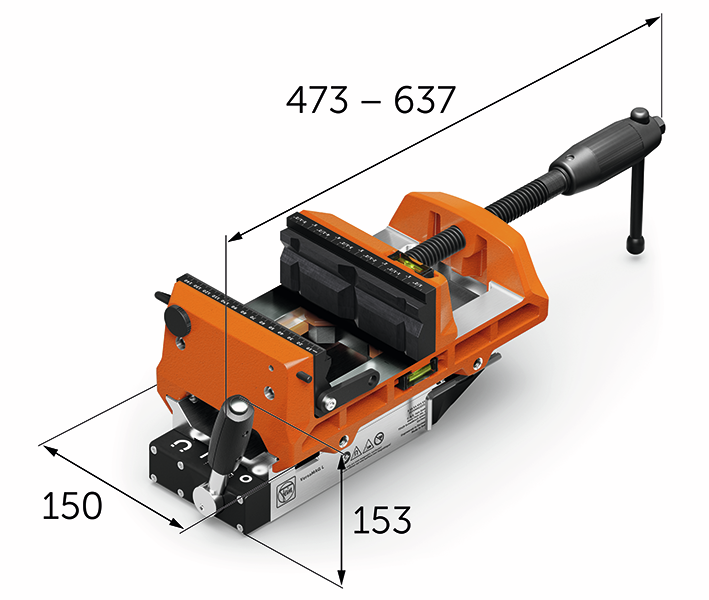

Height
153 mm
Travel
164 mm
Max. length (spindle extended)
637 mm
Min. length (spindle retracted)
473 mm
Magnetic holding power
12,500 N
clamping force
19,000 N
Magnetic foot dimensions
180 x 105 mm
Installation area
290 x 105 mm
Weight
16.70 kg
Accessory interface
VersaMAG L
Downloads
Price includes
- 1 permanent magnet incl. mounting plate VersaMAG L
- 1 x vice
- 1 chip tray
- 1 component stop
- 1 depth stop
- 2 spirit levels
- 1 socket head wrench 5 mm
- 1 lashing strap
