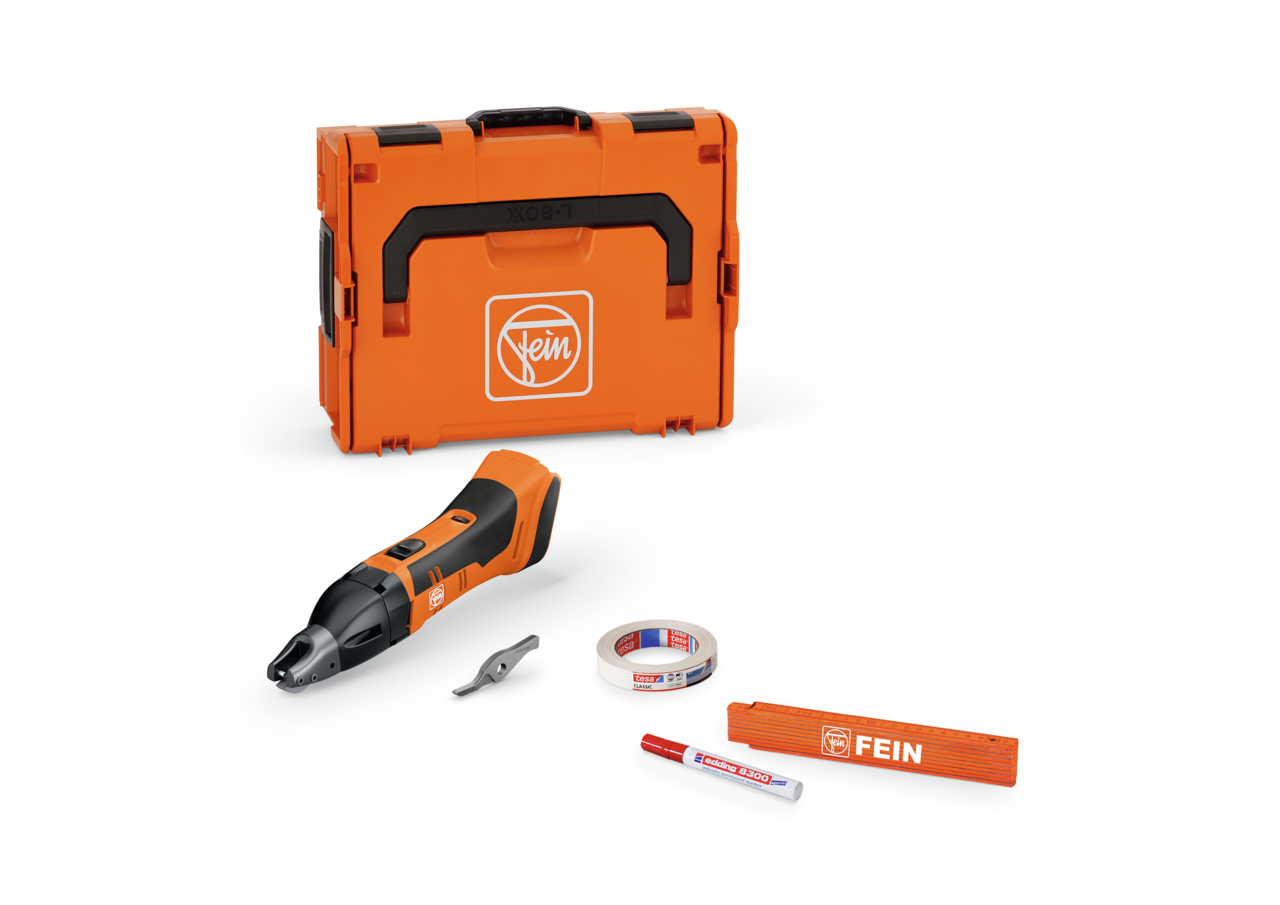

ABSS 18 1.6 E AS Set

Cordless slitting shears up to 1.6 mm


ABSS 18 1.6 E AS Set
Cordless slitting shears up to 1.6 mm

Handy, curve-compatible cordless slitting shears for distortion-free cutting off and cutting out of sheet metal up to 1.6 mm. Includes additional blade for curves, permanent marker, painter’s tape and metre rule.

Product number: 7 130 05 62 00 0

ABSS 18 1.6 E AS Set

Add to Shopping Cart

Details

  • 180 m cutting capacity (in 0.8 mm sheet metal) with one battery charge (5 Ah).
  • Rapid work progress due to excellent view of the cutting line through the open-fronted cutting head.
  • Left and right curve cuts and distortion-free cutting possible with just one continuous chip.
  • QuickIN for rapid toolfree blade changing, with no further adjustment required.
  • Excellent ergonomics and low weight.
  • Cutting blade with excellent tool life.
  • Proven MultiMaster motor with outstanding performance and stability.
  • Compatible with AMPShare/Bosch Professional 18 V batteries.
  • Maximum work progress with AMPShare 18V storage batteries: COOLPACK 1.0 technology ensures a longer storage battery life compared with batteries without COOLPACK technology and therefore makes longer operating periods possible. ECP protects the storage battery against overload, overheating and total discharge.
  • Ideally equipped for every form of use. Mobile working with the L-BOXX system.

Technical data

Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE Li-ions
Battery interface
18 V AMPShare
Strokes
2,200 - 3,500 rpm
Cutting speed
5 - 8 m/min
Steel up to 400 N/mm²
1.6 mm
Steel up to 600 N/mm²
1.2 mm
Steel up to 800 N/mm²
0.8 mm
Non-ferrous metals up to 250 N/mm²
2 mm
Cutting width
5 mm
Rad. of smallest curve
48 mm
Immersion Ø
15 mm
Weight without storage battery
1.24 kg
Vibration and sound emission values
Sound pressure level LpA
74,3 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
85,3 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
87,6 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
ah 4,6 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 30,25 MB

Download Manual instruction (30,25 MB)

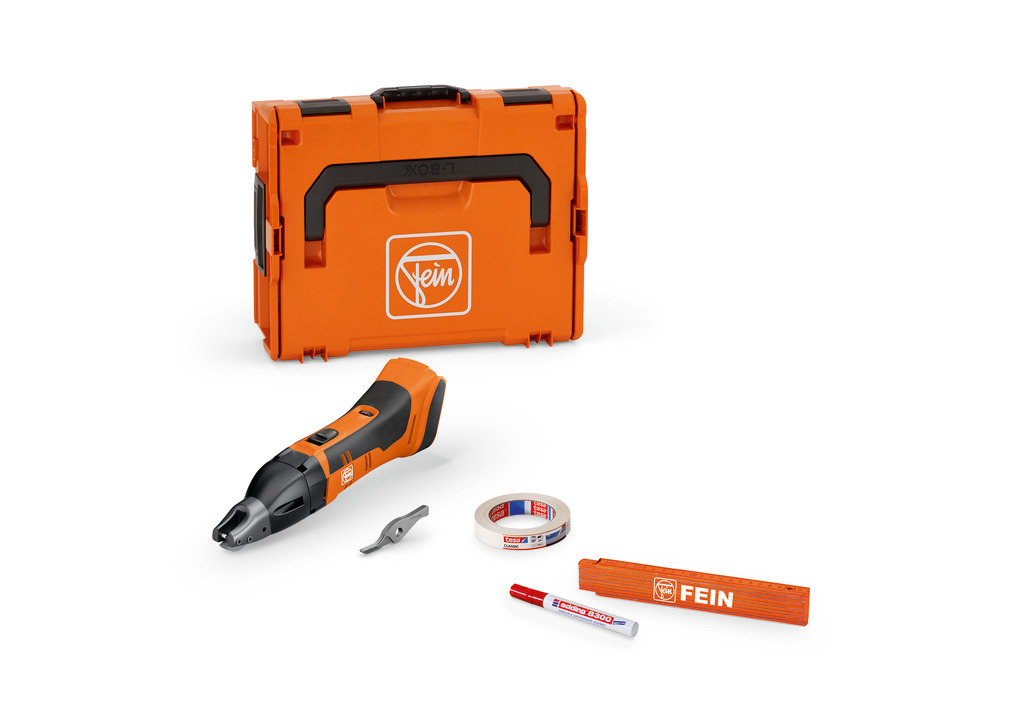

Price includes

  • 1 cutter blade (31308150009) fitted
  • 1 pair of cutting jaws (31308153014) fitted
  • 1 socket head wrench 2,5 mm
  • 1 blade for curves (31308151008)
  • 1 permanent marker (32133037000)
  • 1 painter's tape (32133038000)
  • 1 metre rule (18750283000)
  • 1 tool case (L-BOXX 136)

Application

Curve cuts
suitable
Coil sections
well suitable
Interior cut-outs
well suitable
Profile sections
suitable
Notches
well suitable
suitable
well suitable

Product feature

  • QuickIN
  • Adjustable stroke
  • Open cutting head
