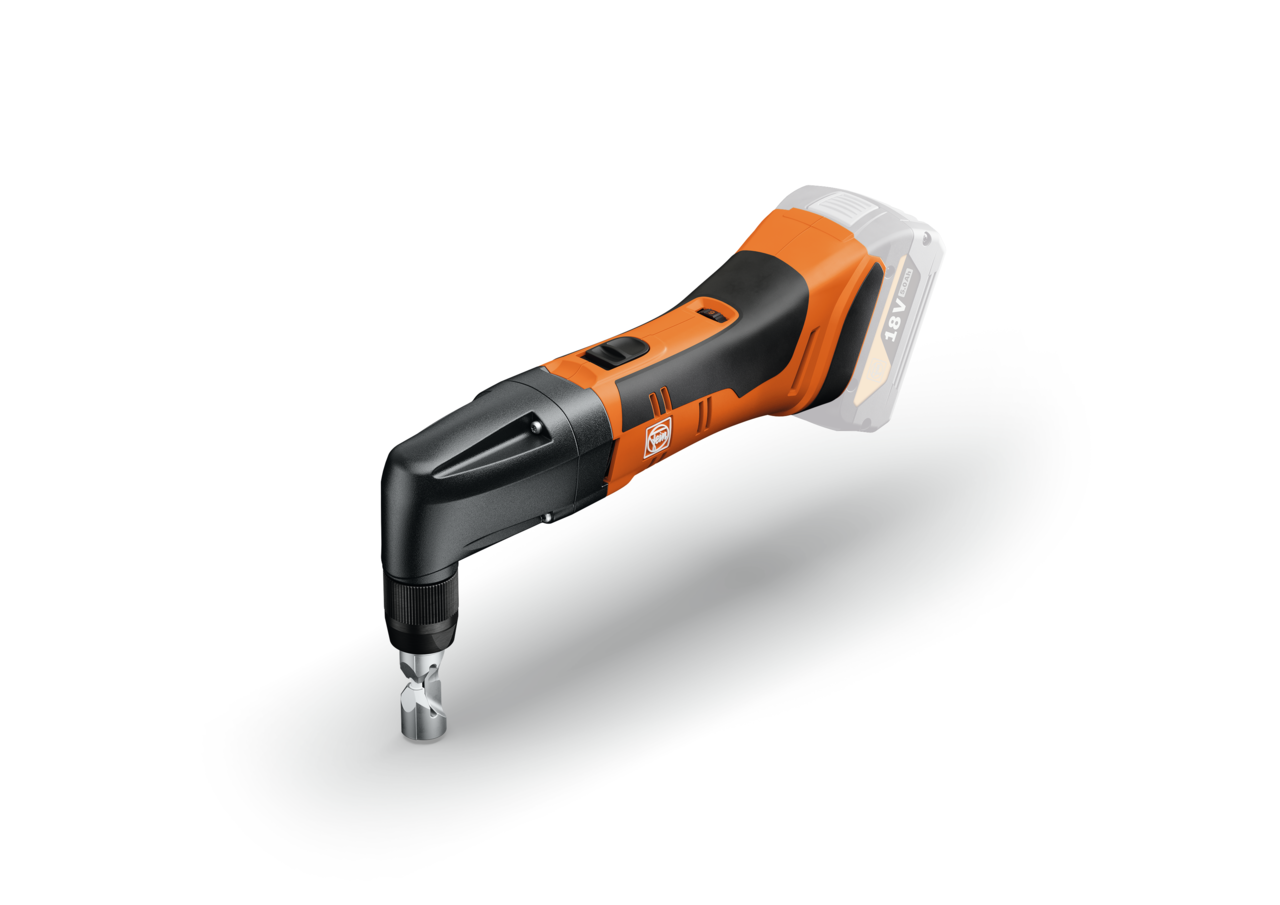

ABLK 18 1.6 E AS

Cordless nibbler up to 1.6 mm


ABLK 18 1.6 E AS
Cordless nibbler up to 1.6 mm

Compact and curve-compatible nibbler for roof and façade construction. Precise cuts in trapezoid and corrugated sheet metals and profiles.

Product number: 7 132 11 61 00 0

ABLK 18 1.6 E AS

Add to Shopping Cart

Details

  • 66 m cutting capacity (in 0.8 mm sheet metal) with one battery charge (5 Ah).
  • Cutting direction setting can be changed in 45° steps up to 360° using tool-free pivoting cutting head.
  • Optimum handling due to extremely slim gearbox head.
  • 1.5 m/min cutting speed for excellent work progress.
  • Variable cutting speed due to electronically adjustable speed control.
  • Brief overlapping area up to 2.6 mm.
  • Rotating punch for a service life which is now up to 30 % longer.
  • Proven MultiMaster motor with outstanding performance and stability.
  • Compatible with AMPShare/Bosch Professional 18 V batteries.
  • Maximum work progress with AMPShare 18V storage batteries: COOLPACK 1.0 technology ensures a longer storage battery life compared with batteries without COOLPACK technology and therefore makes longer operating periods possible. ECP protects the storage battery against overload, overheating and total discharge.
  • Low operating costs. Punch and die are replaced independently of one another.
  • QuickIN quick change system for die and punch.
  • Ideally equipped for every job. Mobile working with the L-BOXX system.

Technical data

Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / ProCORE Li-ion
Battery interface
18 V AMPShare
Strokes
850 - 1 350 rpm
Cutting speed
1.5 m/min
Steel up to 400 N/mm²
1.6 mm
Steel up to 600 N/mm²
1 mm
Steel up to 800 N/mm²
0.7 mm
Non-ferrous metals up to 250 N/mm²
2.5 mm
Cutting width
5 mm
Immersion Ø with die
22 mm
Rad. of smallest curve (inside/outside)
30 / 35 mm
Weight without storage battery
1.71 kg
Vibration and sound emission values
Sound pressure level LpA
87,8 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
98,8 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
109,6 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
ah 12,1 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 25,96 MB

Download Manual instruction (25,96 MB)

Price includes

  • 1 die (30109141003) fitted
  • 1 punch (63602048004) fitted
  • 1 cutting head (30109154007) mounted
  • 1 socket head wrench 6 mm
  • 1 tool case (L-Boxx 136)

Application

Curve cuts
well suitable
Coil sections
suitable
Interior cut-outs
well suitable
Profile sections
well suitable
Notches
well suitable
suitable
well suitable

Product feature

  • Rotating round punch
  • Cutting direction: 8 x 45°
  • QuickIN
  • Adjustable stroke
