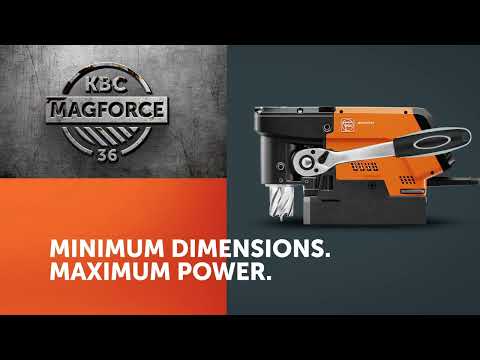

KBC 36 MAGFORCE (110V)
Compact magnetic core drill for up to 36 mm
KBC 36 MAGFORCE (110V)
Compact magnetic core drill for up to 36 mm
Extremely small and light single-speed compact magnetic core drill with minimum dimensions for use in tight spaces in the workshop and on the construction site.
Product number: 7 273 23 62 24 1
Details
- Extremely small and light for working in tight and difficult-to-reach spots – including vertically and overhead – thanks to height of 169 mm, a length of 290 mm and a weight of 8.5 kg.
- Extremely low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results in tough use in industry and manual trades.
- Very powerful and maintenance-free brushless 1200 W high-power motor with high speed stability for continuously fast work progress as well as forward / reverse running and electronic speed setting for all drilling applications, such as core drilling, twist drilling and tapping and countersinking.
- High gearbox positioning for optimum view of the drilling point.
- Large installation space under the drill spindle with a stroke range of 46 mm.
- Space-saving operation on both sides with ratchet.
- Combined drive shaft, 1/2” square and 8 mm hexagon socket.
- Intuitive operating concept avoids mix-ups and can be clearly seen by the user.
- Convenient magnetic holding force display helps the user to reliably position the tool.
- Tilt sensor stops the drill motor when the tool slips or tilts.
- Integrated handle.
- Speed saving "memory function".
- Slot for 5 mm hexagon socket wrench on the tool itself.
- Internal cooling lubrication by means of hand pump.
- Personal safety switch.
- Ideally equipped for every job. Mobile working with the L-BOXX system.
Technical data
Technical data
Input
1,200 W
Output
680 W
Speed, full load
130 - 610 rpm
Speed, no load
130 - 660 rpm
Carbide core drill bit max. Ø
36 mm
HSS core drill max. Ø
36 mm
Core drill, drilling depth max.
35 mm
Twist drill max. Ø
16 mm
Tapping
M 12
Countersinking max. Ø
32 mm
Core drill holder
3/4 in Weldon
Width across corners
40 mm
Height
169 mm
Stroke
46 mm
Height
169 mm
Magnetic holding power
10,000 N
Cable with plug
3 m
Weight according to EPTA
8.50 kg
Vibration and sound emission values
Sound pressure level LpA
95,3 dB
Uncertainty of measured value KpA
5 dB
Sound power level LWA
103,3 dB
Uncertainty of measured value KWA
5 dB
Sound peak value LpCpeak
106,3 dB
Uncertainty of measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
ah,D = <2,5 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 x 1/2” ratchet
- 1 x 1/2” socket wrench extension
- 1 x coolant pump
- 1 lashing strap
- 1 swarf hook
- 1 x 82 mm centring pin
- 1 contact guard
- 1 additional handle
- 1 x 5 mm hexagon socket wrench
- 1 x 5 mm hexagon socket wrench with T-handle
- 1 plastic tool case (L-BOXX 238)
Application
Product feature
- Magnetic holding force display
- Reversible rotation
- Variable speed control
- Memory function
- Speed-controlled electronics (tacho)
- Tilt sensor
