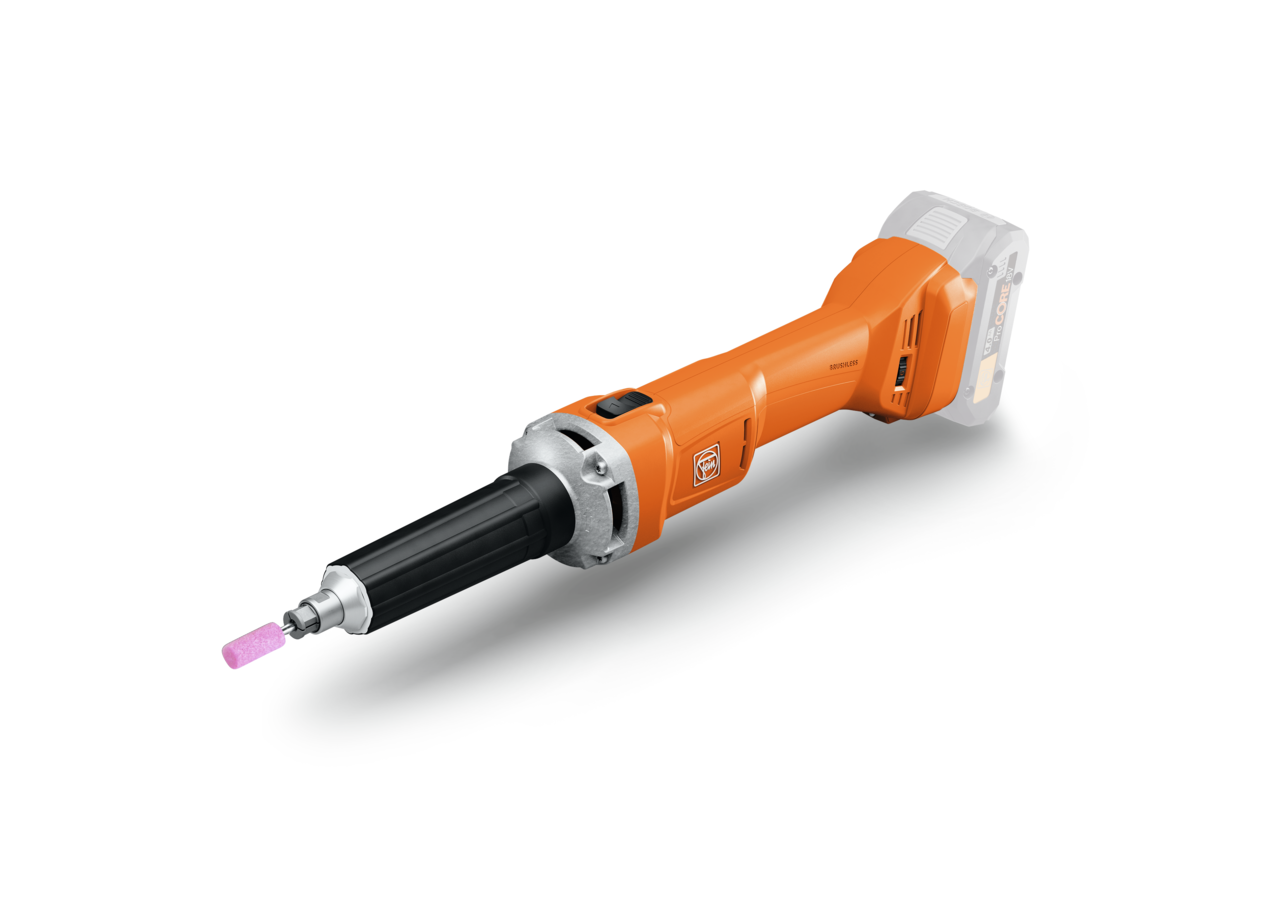

AGSZ 18-280 LBL AS
Cordless die grinder
AGSZ 18-280 LBL AS
Cordless die grinder
Dust-resistant and powerful, compact cordless die grinder with large plunge depth for effective cutting, grinding, deburring and milling work.
Product number: 7 123 05 61 00 0
Details
- Guarantees very long life with the next generation of brushless FEIN PowerDrive motors. Totally closed motor housing protects the motor from aggressive ceramic and mineral dusts.
- Ideal for every application. Optimum speeds, matched to a large number of abrasive materials and other materials using the infinitely variable, electronic speed preselection.
- Powerful. 30 % more efficiency than comparable universal motors with a rated output of 1 100 W.
- COOLPACK 2.0 technology delivers a 135% longer battery life and therefore makes longer operating times possible.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries.
- ProCORE Li-Ion battery with high-power cells, charge status indicator and “Electronic Cell Protection” (ECP). ECP protects against overload, overheating and total discharge.
- Very smooth running and low-vibration working thanks to motor being decoupled from the housing and mounted separately and four additional vibration dampers.
- Extensive user protection features include soft start, restart protection and electronic overload protection.
- Innovative collets with all-round flange to protect the workpiece and prevent the wrench sliding off during tool changes.
- Fatigue-free working thanks to narrow grip dimensions, compact design and a well-balanced low weight.
- Separate motor electronics with dust guard in handle area.
- Compatible with all 18 V AMPShare ProCORE batteries and chargers for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless devices.
- Bright working area thanks to integrated LED light.
- Ideally equipped for every job. Mobile working with the XL-BOXX system.
- Long, narrow neck allows tool to plunge a long way into workpieces (e.g. grinding inside pipes).
- Removable rubber collar bearing cover.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / ProCORE Li-ion
Battery interface
18 V AMPShare
Motor
brushless
Speed, no load
9,000 - 28,000 rpm
Grinding wheel for max. Ø
50 mm
Collet for max. Ø
8 mm
Max. cutter diameter
12 mm
Weight without storage battery
1.77 kg
Vibration and sound emission values
Sound pressure level LpA
82 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
93 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
96 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh,SG (Ø 50mm) 13,7 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
αh,SG (Ø 25mm) 6,2 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 collet Ø 6 mm
- Jaw spanner SW13
- Jaw spanner SW17
- 1 plastic tool case (L-BOXX 238)
Application
Product feature
- POWERtronic tacho electronics
- Soft start
- Restart protection
- Blockage monitoring
- Electronic overload protection
- Electronic speed preselection
- Long neck
