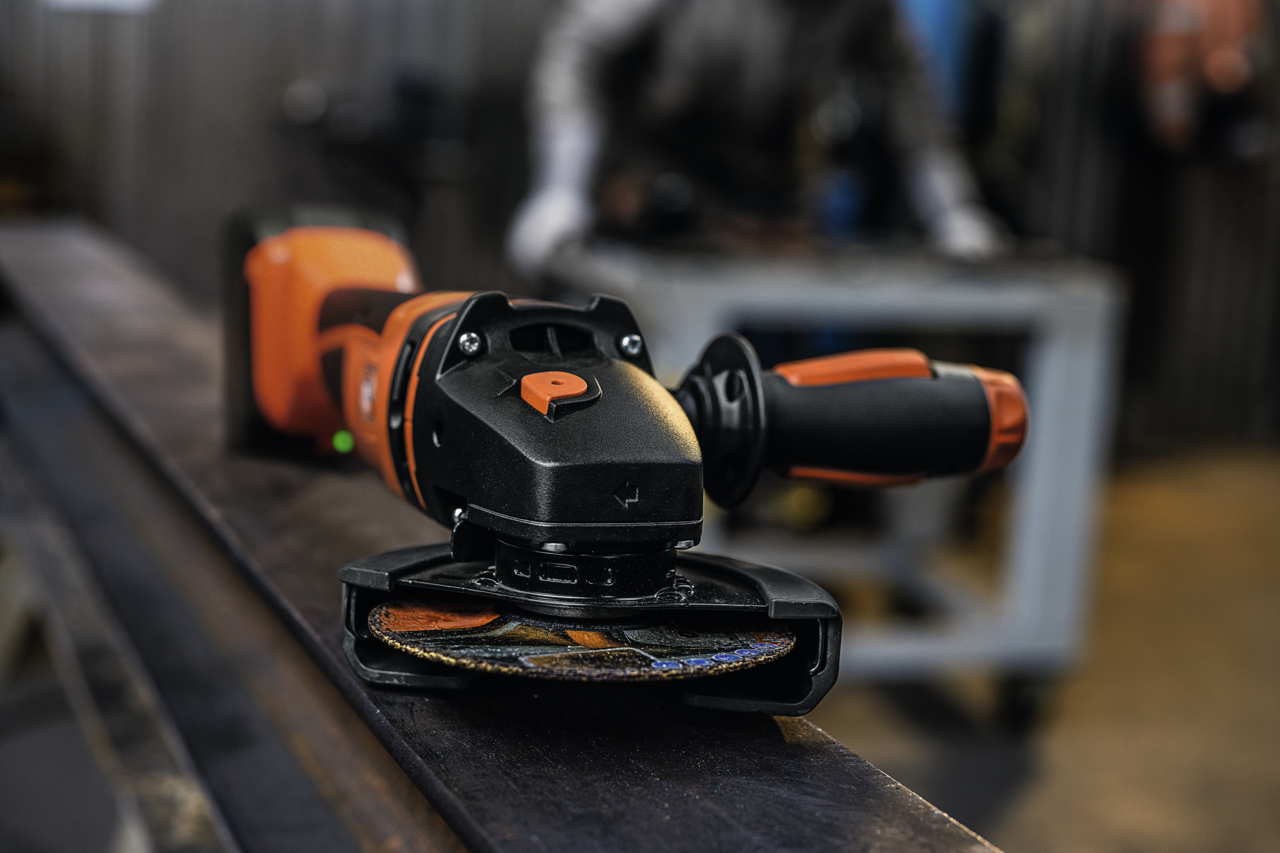

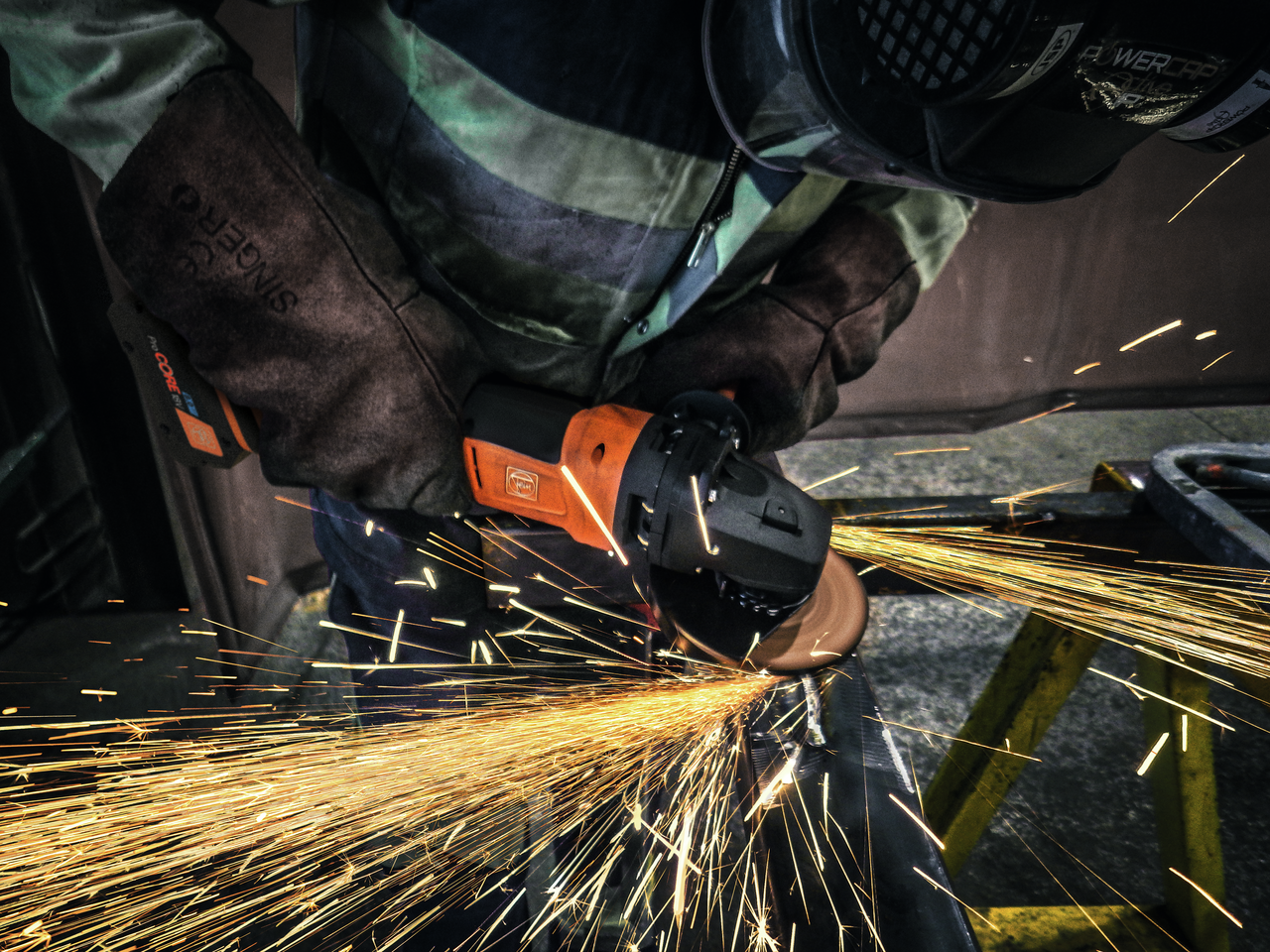

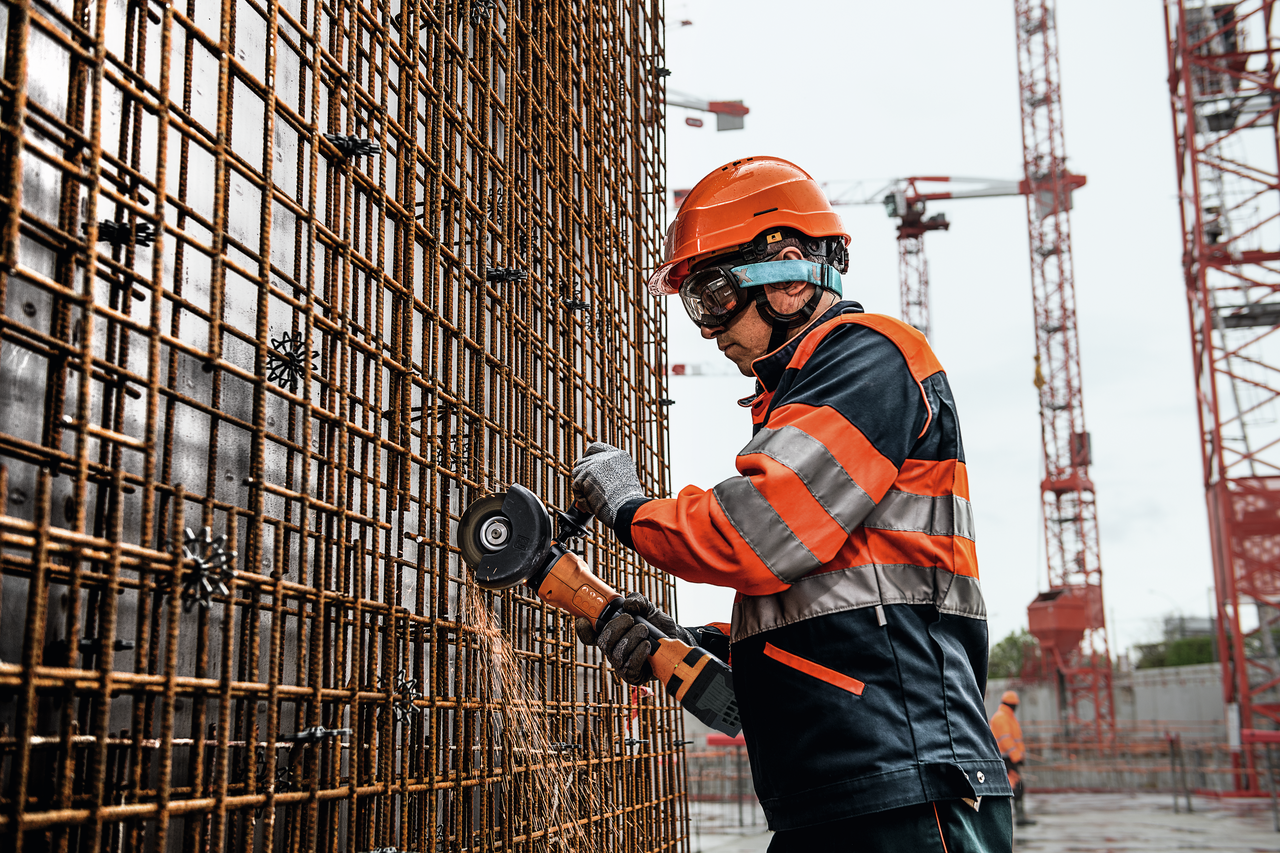

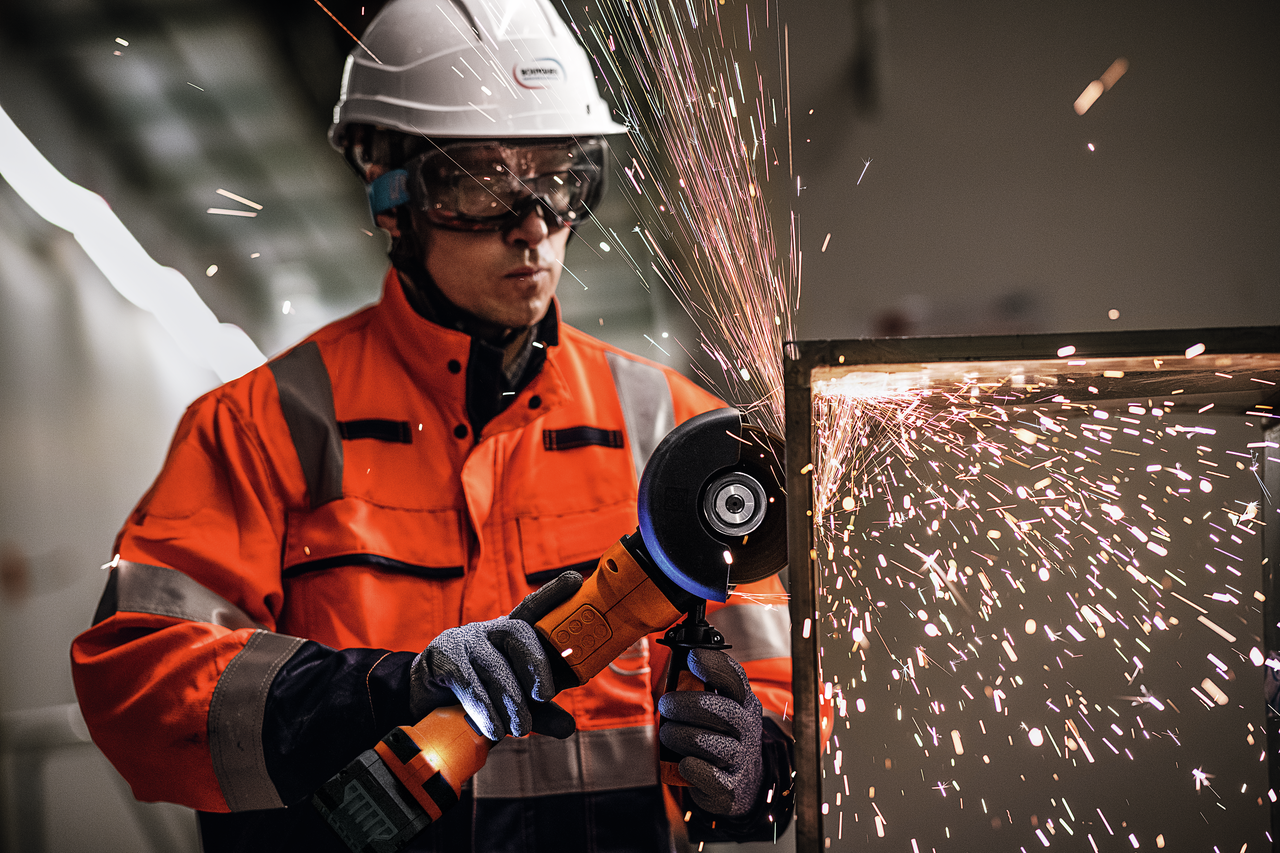

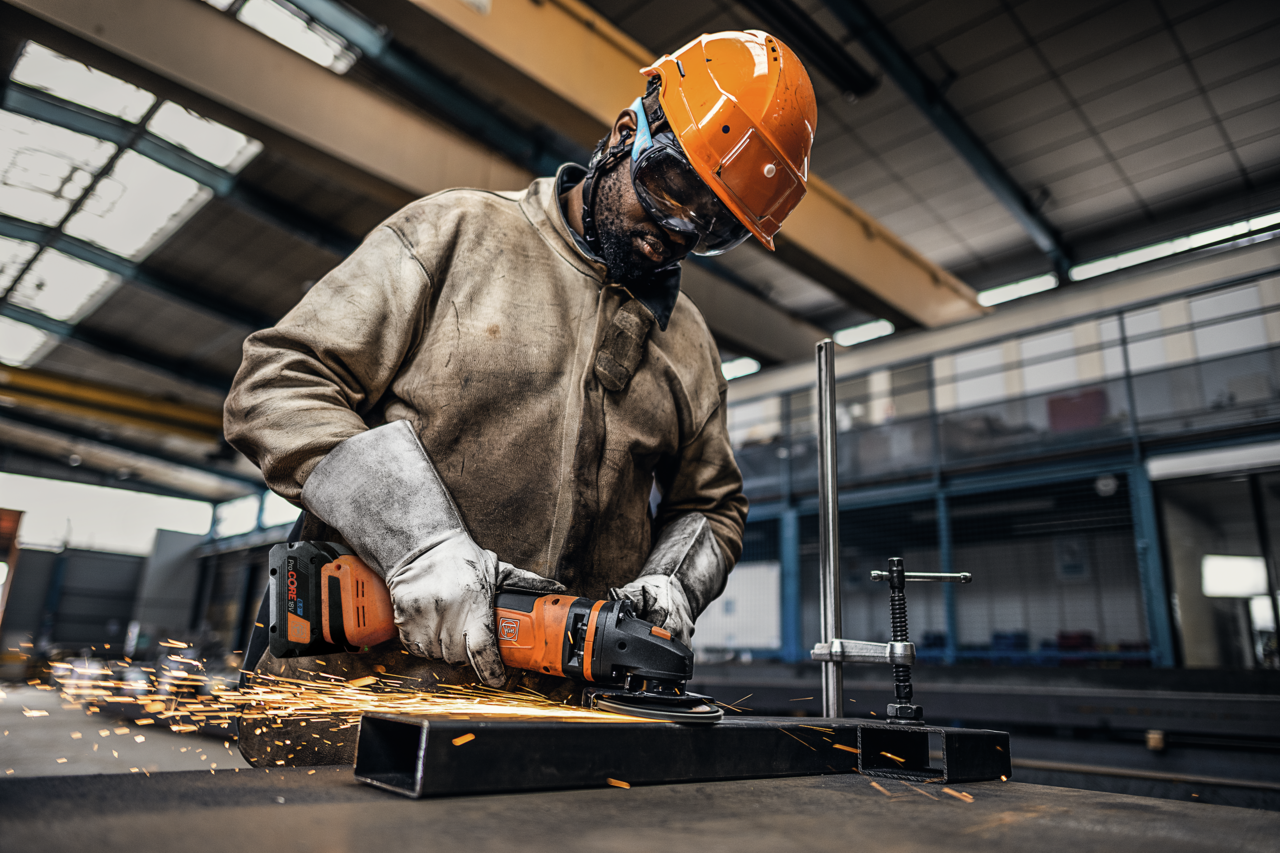

CCG 18-115-12 PD-SEC AS Set ProCore
PROTAGO cordless angle grinder, 115 mm in diameter
CCG 18-115-12 PD-SEC AS Set ProCore
PROTAGO cordless angle grinder, 115 mm in diameter
Powerful cordless angle grinder with unique operating concept for particularly safe working.
Product number: 7 122 19 62 24 0
Details
- Maximum user protection thanks to the combination of a number of safety features.
- Fewer accidents of the type frequently caused by improper use or negligence.
- Extensive user protection provided by two-handed operation with AutoStop (dead man's switch) and permanently fitted additional handle, non-removable safety hood as well as kick-back monitoring, soft start, restart protection, electronic overload protection and braking function.
- Low-maintenance FEIN Power Drive motor and AMPShare battery system delivers the same power as a corded 1,200 watt tool for maximum performance and robustness. Optimum speeds, matched to a huge number of different materials using the infinitely variable, electronic speed preselection.
- Long-life and robust thanks to the fully enclosed motor housing. This protects the motor from aggressive ceramic and mineral dusts. Innovative cooling ribs ensure optimum heat dissipation, including temperature monitoring.
- Up to 45% more cuts than with the previous system (CCG 18 SEC + FEIN High-Power batteries) thanks to the perfect combination of a powerful tool and the powerful ProCORE battery system. Cutting is up to 16% faster than with comparable competitor devices.
- Ideal ergonomics for cutting work thanks to narrow grip dimensions, compact design and a well-balanced low weight.
- Optimum performance, safe handling, perfect ergonomics and simple operation in all work situations.
- Safe guidance in all work situations thanks to the additional handle, which can be adjusted into 6 positions.
- Short setup times thanks to the options of tool-free installation and setting, such as those for setting the safety hood, installing the protective cover for cutting work or changing consumables using quick-clamping nuts.
- Fatigue-free working thanks to narrow grip dimensions, compact design and a well-balanced low weight.
- The tried and tested, highly reliable brushless FEIN PowerDrive motors guarantee a very long service life.
- Totally closed motor housing protects the motor from aggressive ceramic and mineral dusts. Separate motor electronics with dust guard in handle area.
- Very smooth running and low-vibration working thanks to motor being decoupled from the housing and mounted separately and four additional vibration dampers.
- Compatible with all 18 V AMPShare ProCORE batteries and chargers for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless devices.
- COOLPACK 2.0 technology delivers a 135% longer battery life and therefore makes longer operating times possible.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries.
- ProCORE Li-Ion battery with high-power cells, charge status indicator and “Electronic Cell Protection” (ECP). ECP protects against overload, overheating and total discharge.
- Ideally equipped for every form of use. Mobile working with the L-BOXX system.

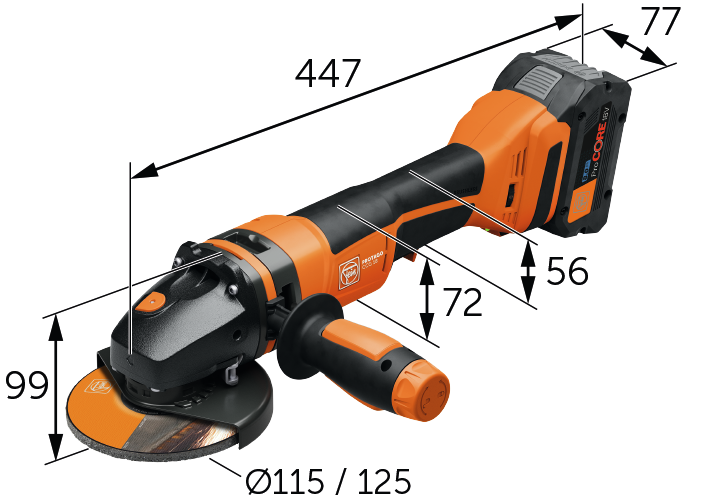

Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / ProCORE Li-ion
Battery interface
18 V AMPShare
Motor
brushless
Speed, no load
2,500 - 8,500 rpm
Grinding disc Ø
115 mm
Elast. Backing pad Ø
115 mm
Flange
M 14
Weight with battery
3.30 kg
Weight without storage battery
2.40 kg
Vibration and sound emission values
Sound pressure level LpA
85,7 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
93,7 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
100,3 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
7,7 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
1,8 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads

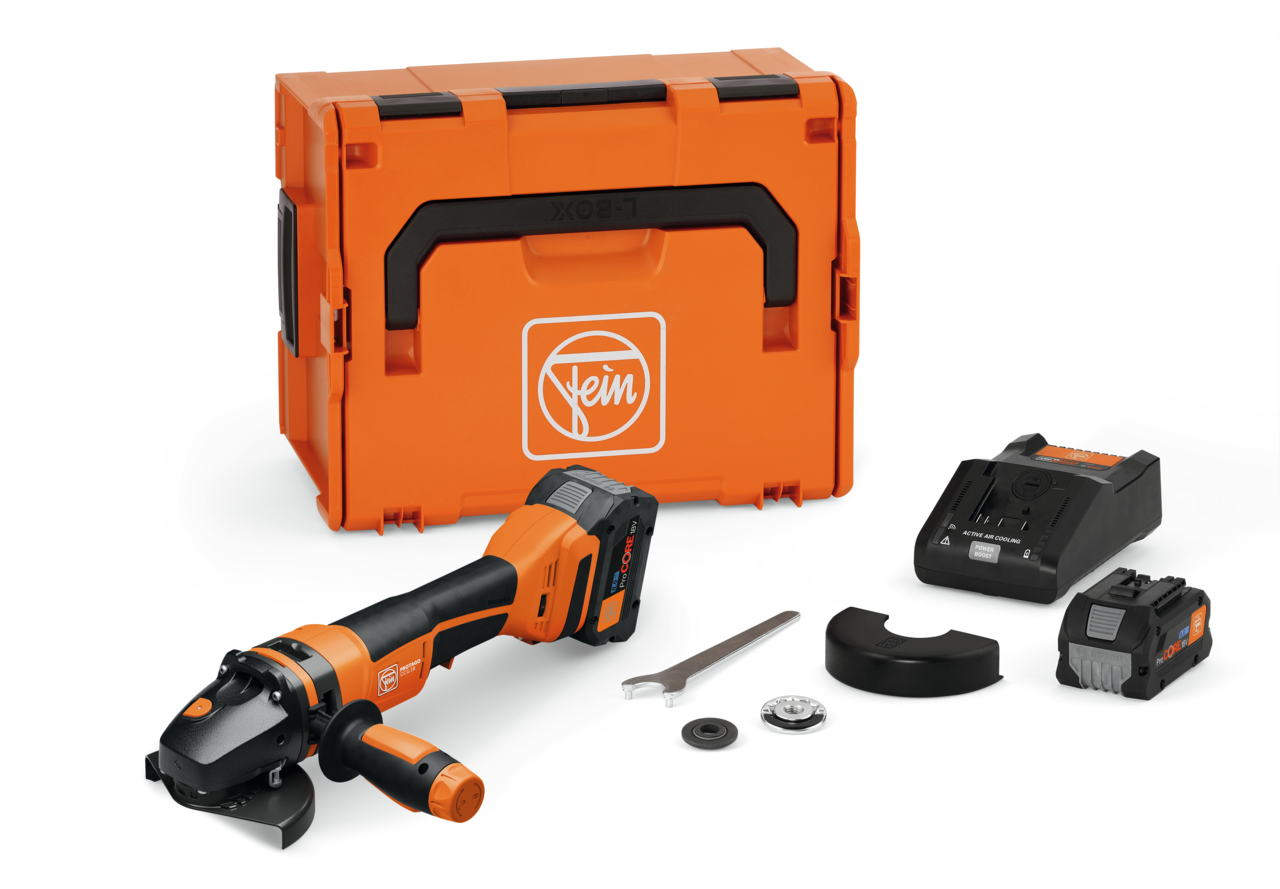

Price includes
- 1 x protective cover for cutting work
- 1 Tool-free quick-clamping nut
- 1 key
- 2 ProCORE 18 V 8.0 Ah battery pack
- 1 x GAL18 V-160 AS rapid charger
- 1 plastic tool case (L-BOXX 238)
Application
Product feature
- Brake
- POWERtronic tacho electronics
- Soft start
- Restart protection
- Blockage monitoring
- Electronic overload protection
- Electronic speed preselection
- AutoStop dead man's switch: Yes
