ASCM18-4 QM AS QuickIN Set
Cordless drill/driver in user set.
ASCM18-4 QM AS QuickIN Set
Cordless drill/driver in user set.

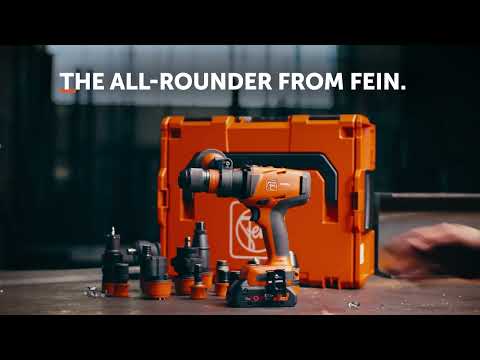

The all-rounder ASCM 18-4 QM AS with 7 QuickIN quick-change attachments for maximum efficiency and versatility in drilling, tapping, and screwing. Everything neatly, tidily, and securely stored in the i-BOXX.
Product number: 7 116 15 66 00 0
Details
- 4-speed solid metal gearbox. With speeds of up to 4000 rpm for optimum cutting speeds in metal for any holes between 1.5 and 80 mm.
- Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs.
- The QuickIN headers can be changed in a matter of seconds and without the need for tools when users switch between applications in metal and timber and have just one tool.
- Very safe working. Kickback monitoring stops the tool.
- Extendible extra handle for more control.
- The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible.
- High torques up to a maximum of 130 Nm.
- QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
- Electronic torque setting (15+1).
- Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material.
- Bit and belt holder on the side for ergonomic and flexible handling.
- QuickIN accessory set in the i-BOXX consisting of 7 QuickIN accessories: 1 bit holder 1/4", 1 socket adapter 1/2", 1 tapping attachment, tapping collets 1 x 4.5 mm, 1 x 6 mm, 1 eccentric attachment, 1 angle head. The case inlay of the i-BOXX offers additional space for further QuickIN accessories.
- Fixes 10 x 400 mm screws without pre-drilling.
- AMPShare interface makes 1400 screw connections (5 x 40 mm in timber) possible per battery charge (ProCORE 4 Ah).
- Extensive user protection features include restart protection, electronic overload protection and brake.
- The innovative adjustment function enables screw connections to be made in timber at a reduced speed for perfect results.
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
- Ideally equipped for every job. Mobile working with the L-BOXX system.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / ProCORE Li-ion
Battery interface
18 V AMPShare
Motor
brushless
Gearbox
4-speed
Accessory interface
QuickIN
Speed, no load
430 / 850 / 2 000 / 4 000 rpm
Max. torque (hard/soft)
130 (70 / 50) Nm
Torque levels
15 + 1
Drill chuck clamping width
1.5 - 13 mm
Fastening
10 x 400 mm
Drill Ø steel twist drill
13 mm
Drilling diameter in steel, core drill bit
30 mm
Drilling diameter in steel, hole saws
80 mm
Capacity in wood Ø
60 mm
Tapping
M 14
Weight without storage battery
1.30 kg
Vibration and sound emission values
Sound pressure level LpA
75,9 dB
Uncertainty of measured value KpA
5 dB
Sound power level LWA
83,9 dB
Uncertainty of measured value KWA
5 dB
Sound peak value LpCpeak
90,6 dB
Uncertainty of measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
ah,D 0,9 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
ah 0,6 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 ASCM 18-4 QM AS (incl. handle, belt clip, bit holder)
- 1 QuickIN Accessory Set 7 pieces
- 1 tool case (L-BOXX 136)
- 1 iBOXX 72
- 1 iBOXX Rack
Product feature
- Removable drill chuck
- Electronic torque shut-off
- 4-speed gearbox
- QuickIN accessory interface
- Dimmable LED
- Drilling and over screw function
