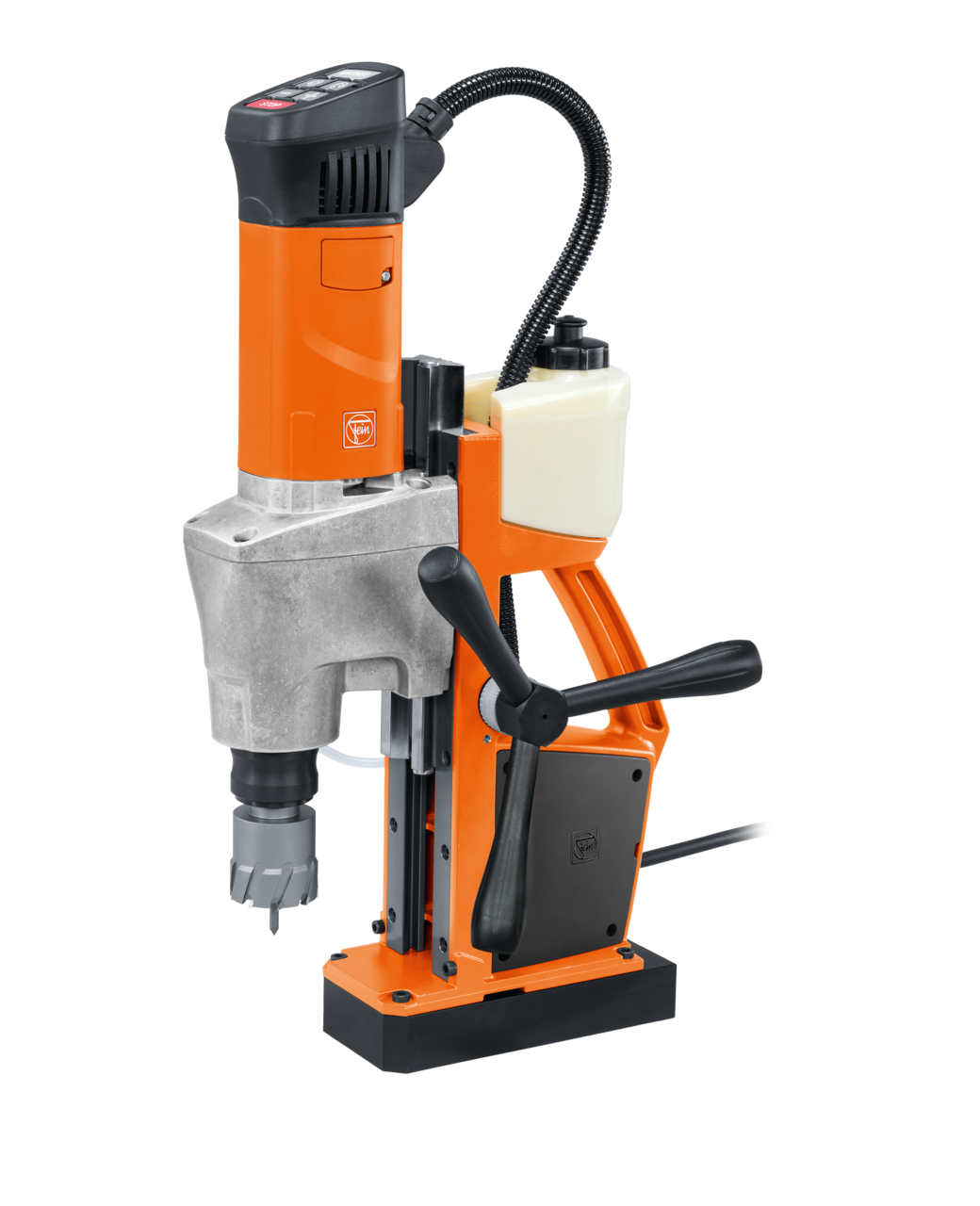

KBM 50 Q
Metal core drilling unit up to 50 mm
KBM 50 Q
Metal core drilling unit up to 50 mm
Lightweight and powerful 2-speed universal magnetic core drill with clockwise/anti-clockwise operation and maximum functionality for flexible working in the workshop and on the construction site.
Product number: 7 270 41 61 00 0
Details
- Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
- Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1,200 W high-power motor with tacho electronics for high speed stability for reliable and economical working.
- With clockwise/anti-clockwise operation, electronic speed setting and a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
- Simple operating concept avoids mix-ups and can be clearly seen by the user.
- Convenient magnetic holding force display helps the user to reliably position the tool.
- High magnetic holding force.
- Integrated coolant tank delivers long core drill bit lives.
- Feed handwheel can be moved from one side to the other.
- Speed saving "memory function".
- Personal safety switch.
Technical data
Technical data
Input
1,200 W
Output
640 W
Load speed in speed 1
130 - 260 rpm
Load speed in speed 2
260 - 520 rpm
Carbide core drill bit max. Ø
50 mm
HSS core drill max. Ø
40 mm
Core drill, drilling depth max.
50 mm
Twist drill max. Ø
16 mm
Tapping
M 16
Countersinking max. Ø
31 mm
Reaming max. Ø
16 mm
Core drill holder
QuickIN
Changing the core bit
tool-free
Stroke
145 mm
Total stroke range
315 mm
Cable with plug
4 m
Weight according to EPTA
14.00 kg
Vibration and sound emission values
Sound pressure level LpA
82,1 dB
Uncertainty of measured value KpA
5 dB
Sound power level LWA
93,1 dB
Uncertainty of measured value KWA
5 dB
Sound peak value LpCpeak
96,2 dB
Uncertainty of measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
< 2,5 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads

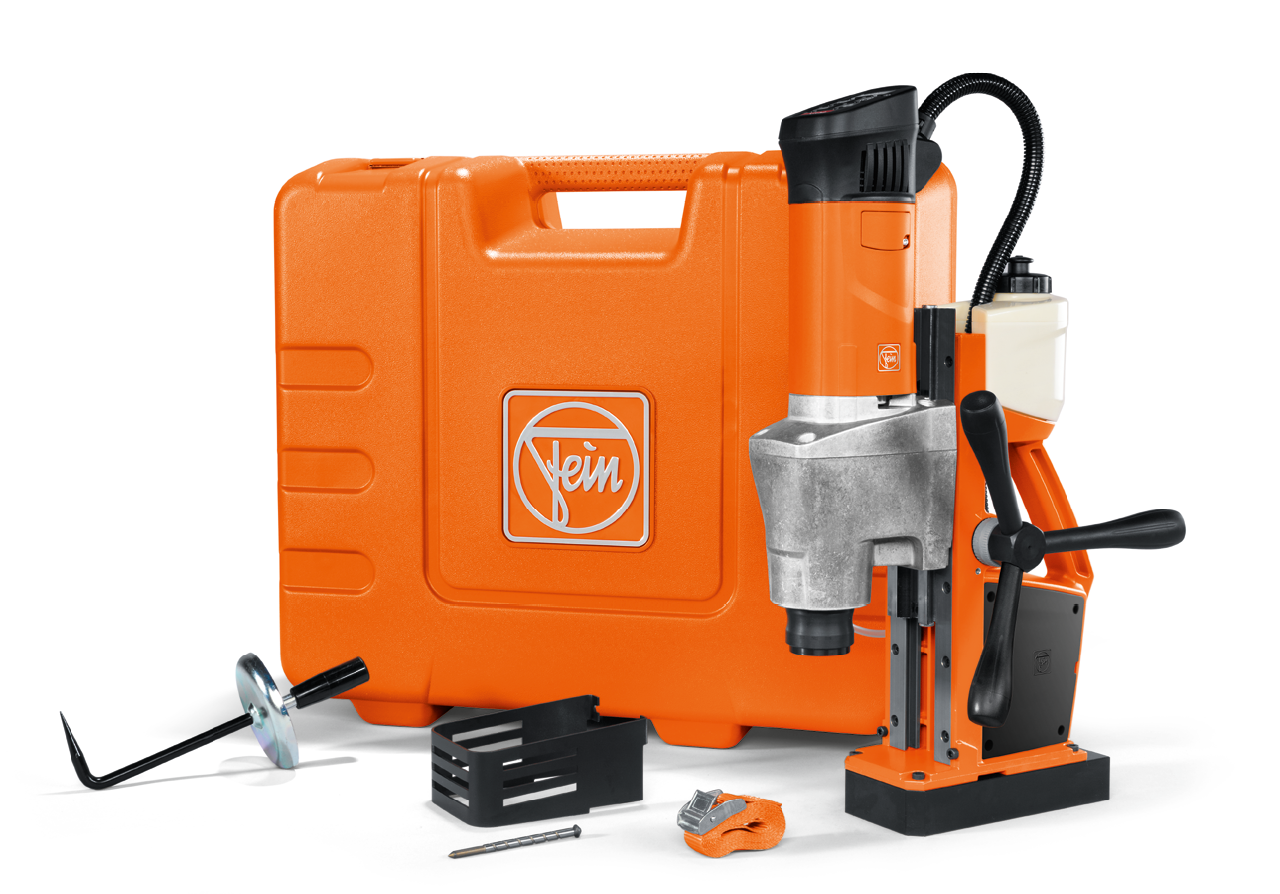

Price includes
- 1 coolant tank
- 1 lashing strap
- 1 swarf hook
- 1 centering pin
- 1 contact guard
- 1 case
Application
Product feature
- Electronic magnetic holding force
- Magnetic holding force display
- Reversible rotation
- Variable speed control
- Memory function
- Speed-controlled electronics (tacho)
