Pipe sander

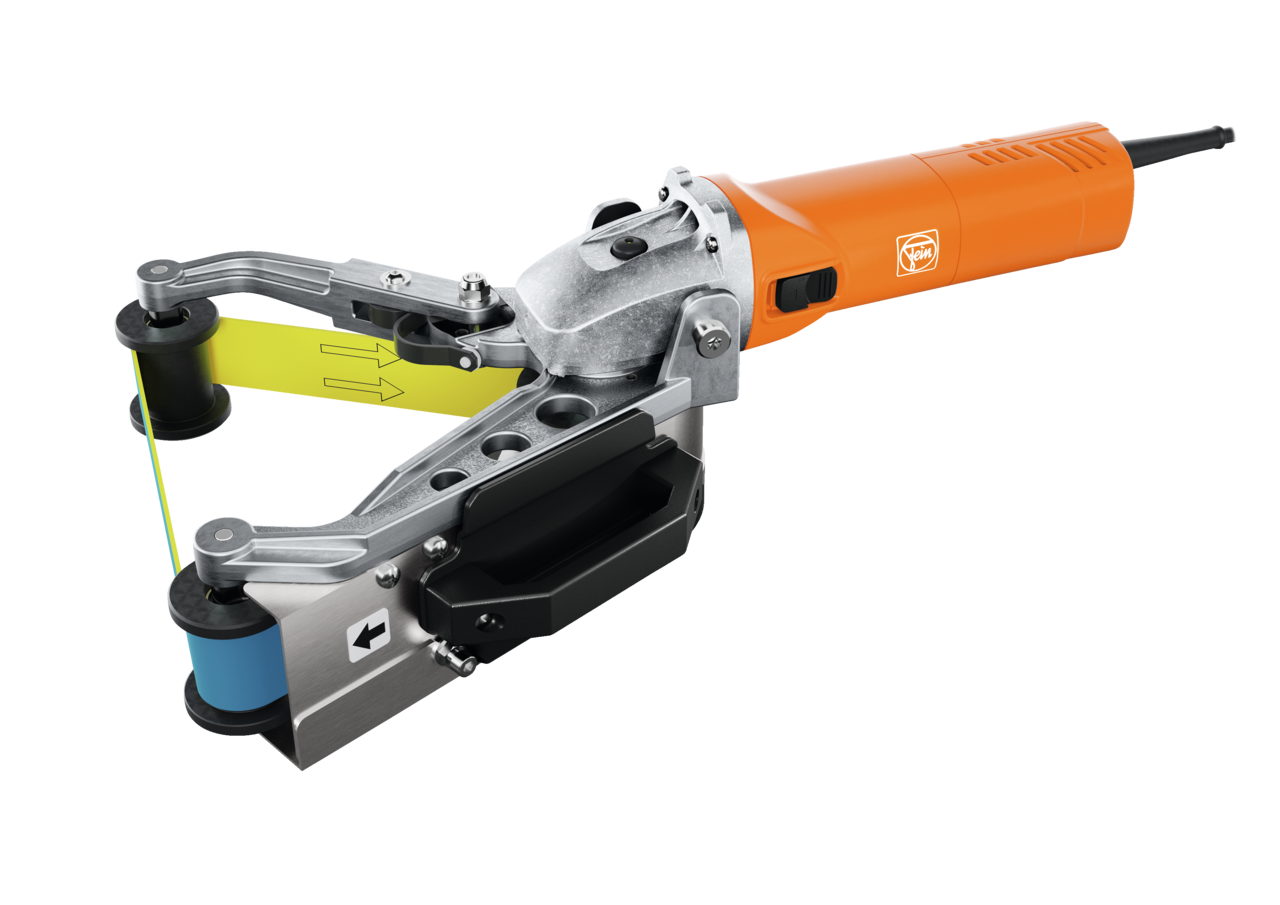

Pipe sander with extremely high sanding capacity for stainless steel pipes and pipe bends up to 80 mm in diameter.

Product number: 7 222 75 60 00 0

RS 17-70 E

Add to Shopping Cart

Details

  • Effective sanding of welded seams thanks to optimum cutting speeds of the sanding belts.
  • Infinitely variable speed, ideal for sanding, satin finishing, brushing and high-gloss polishing of stainless steel.
  • Flexible sanding belts optimally adapt to even narrow pipe bends, creating surfaces without awkward transitions.
  • 360° peripheral sanding in just 2 steps.
  • Optional guide pulleys for narrow distances from the wall.
  • Restart lock.
  • Dustproof ball bearing.
  • Wide range of accessories.

Technical data

Technical data
Input
1,700 W
Output
1,000 W
Speed, no load
2,700 - 8,500 rpm
Minimum wall clearance
50 mm
Belt speed
9 - 27 m/sec
Pipes up to Ø
8 - 80 mm
Belt size
20/40 x 815 mm
Cable with plug
4 m
Weight according to EPTA
4.30 kg
Vibration and sound emission values
Sound pressure level LpA
94,1 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
102,3 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
107,9 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
5,9 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 15,38 MB

Download Manual instruction (15,38 MB)

Application

Polishing
suitable
Rough sanding
well suitable
Dry sanding
well suitable
suitable
well suitable

Product feature

  • Soft start
  • Restart protection
