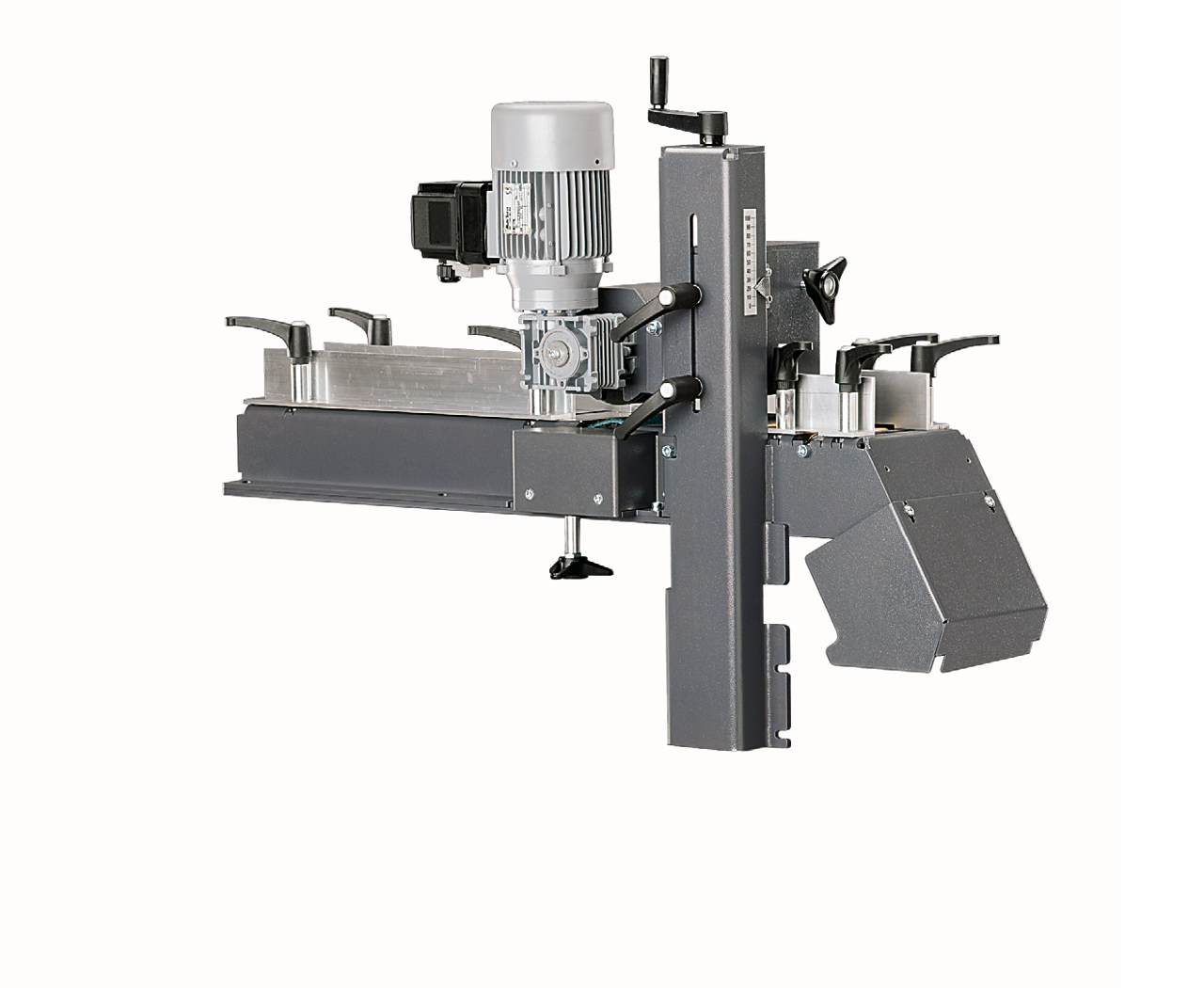

GRIT GIL
Linisher modul
GRIT GIL
Linisher modul
Plane grinding module for perfect longitudinal grinding of square pipes, profiles and flat materials.
Product number: 7 902 48 00 40 3
Details
- High operating speed because of automatic feed
- Perfect finishing results up to the finish
- Flat material can also be ground "upright".
- Consistent belt dimensions 150 x 2 000 mm.
- Belt grinder can be used for contact grinding even though module is mounted.
- For angled workpieces
- Combination possibility with belt grinder GI 150 (2H)
- Space-saving employment because of optional swivel plate possible.
Technical data
Input
0.18 kW
Current/Voltages
3 x 400/440V 50/60Hz
Belt size
150 x 2,000 mm
Dimension profiles / flat material max.
100 x 100 mm
Weight
64 kg
