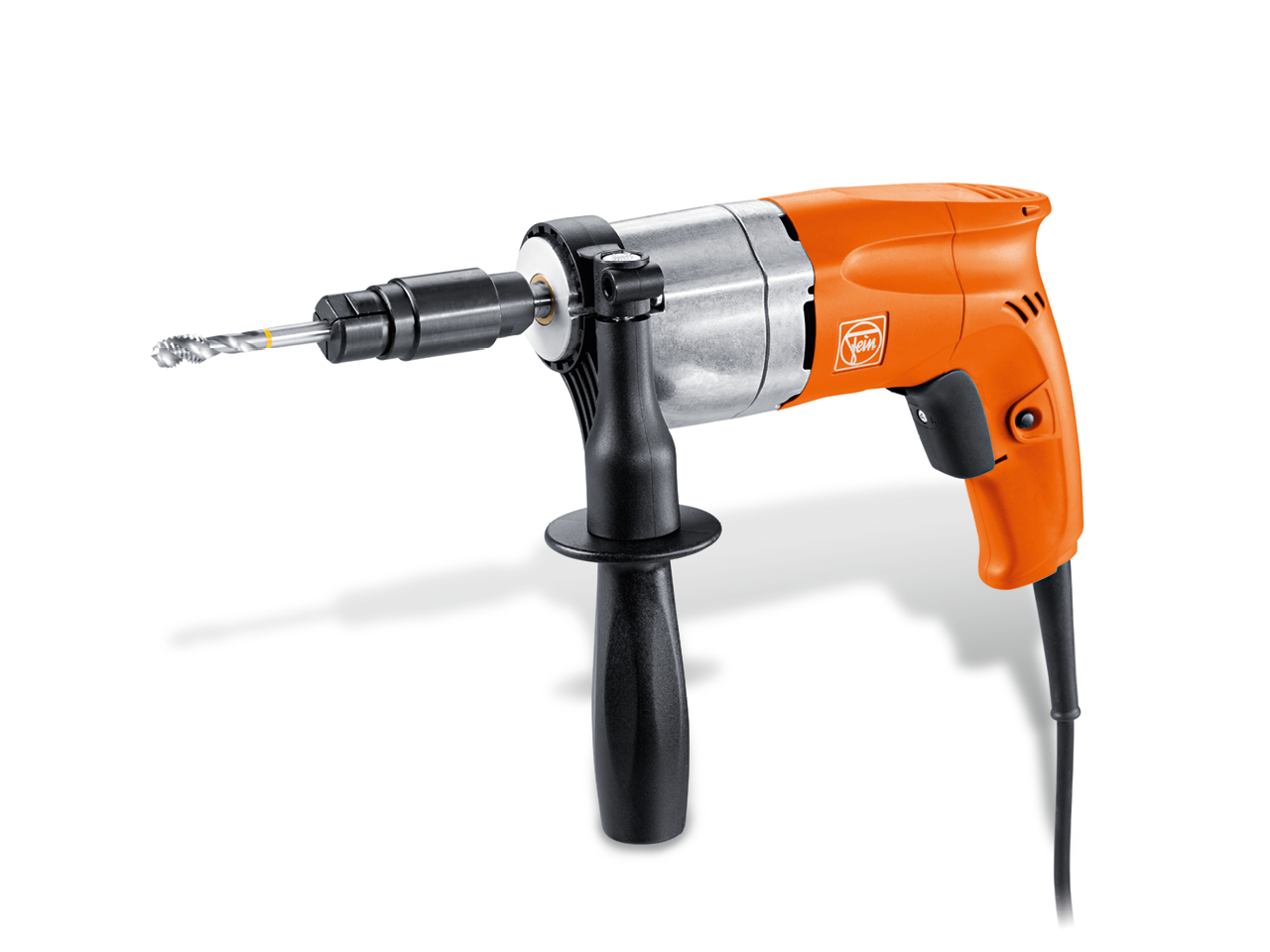

Thread drill up to M 10

Fast, accurate thread drill with reversing gear for shorter working times.

Product number: 7 209 38 60 00 0

GWP 10

Add to Shopping Cart

Details

  • Unique speed thanks to reversing gear for automatic reversal of rotation direction when retracting drill spindle from threaded hole. Rapid return action at 680 rpm for shorter cycle times.
  • Outstanding precision due to clearance-free connection of drill shaft and threaded chuck with B12 taper mounting for high concentricity. Positive fit of thread drill in chuck for the best results.
  • FEIN sensitive handle for applying feed force in the direct drilling axis while ensuring an ideal position in the guiding hand.
  • FEIN high-power motor with stable speed.
  • Small width across corners of 23 mm.
  • Metal gear head.
  • Distortion-free barrel-type motor housing.

Technical data

Technical data
Input
450 W
Output
250 W
Idling speed in reverse running
0 - 1,000 rpm
Load speed when cutting
0 - 450 rpm
Load speed in reverse running
0 - 680 rpm
Torque at max. output power
21 Nm
Stall torque
53 Nm
Thread in steel up to
M 10
Thread in stainless steel
M 10
Cone at drill shaft
B 12
Collar Ø
43 mm
Width across corners
23 mm
Width across corners
23 mm
Cable with plug
5 m
Weight according to EPTA
1.60 kg
Vibration and sound emission values
Sound pressure level LpA
82 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
93 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
96 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
3,0 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 7,46 MB

Download Manual instruction (7,46 MB)

Price includes

  • 1 additional handle
  • Threaded chuck not included
