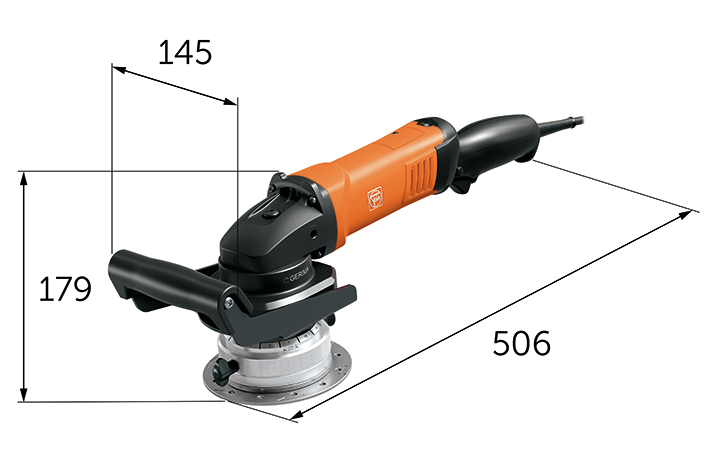

KFH 17-15 R
Beveller up to 15 mm
KFH 17-15 R
Beveller up to 15 mm
Universal beveller with booster and spring technology for perfectly preparing welded seams.
Product number: 7 238 18 61 00 0
Details
- Milling performance improved by 30 - 80 % and vastly reduced vibrations thanks to new booster technology.
- Spring technology: absorption of rotational forces and therefore improved operational safety from low-vibration working.
- FEIN ErgoGrip: unique, ergonomic concept of two-handed operation for fatigue-free working (patent pending).
- Extensive user protection features include soft start, restart protection, jam monitoring and electronic overload protection.
- Efficient quick-change cutter system for minimal interruptions.
- Effective material removal requiring little force.
Technical data
Technical data
Input
1,700 W
Output
1,000 W
Speed, no load
2,300 - 7,500 rpm
Max. bevel length at 45°
15 mm
Max. bevel height at 45°
10.6 mm
Bevel angle
30° / 37.5° / 45° / 60°
Radius
2 / 3 / 4 mm
Milling head configuration
3x2 KX tip
Support plate diameter
137 mm
Cable with plug
4 m
Weight according to EPTA
6.40 kg
Vibration and sound emission values
Sound pressure level LpA
90 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
101 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
104 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh, 3,7 m/s²
Vibration value 2 αhv 3-way
αh, 4,3 m/s²
Uncertainty of measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 tool (without milling head, without guide roller, without indexable tips)
- 6 x clamping screws
- 1 x copper paste
- 1 socket head wrench 5 mm
- 1 x TX 15 Torx screwdriver
- 1 plastic carrying case
Application
Product feature
- Soft start
- Restart protection
- Blockage monitoring
- Electronic overload protection
- Speed preselection
- Booster technology
- Spring technology
- Quick-change cutter system
