CCG 18-125-10 PD-SEC Set 8Ah CORE AS

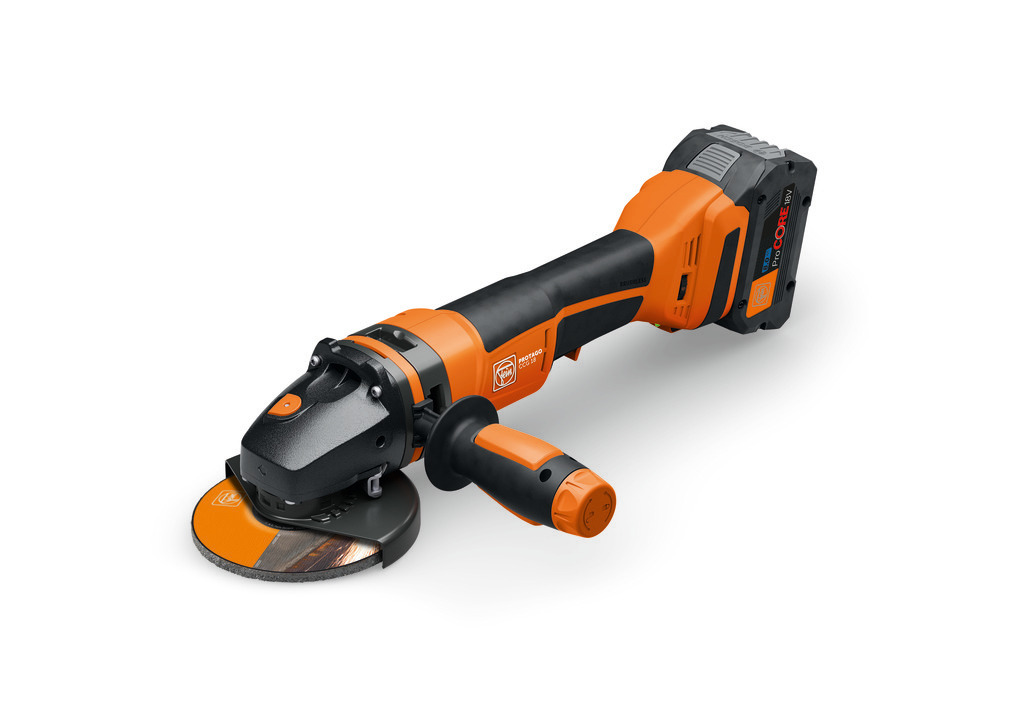

PROTAGO cordless angle grinder Ø 5 [125] in [mm]
CCG 18-125-10 PD-SEC Set 8Ah CORE AS
PROTAGO cordless angle grinder Ø 5 [125] in [mm]
Put safety at the forefront with PROTAGO - a powerful cordless angle grinder featuring multiple safety features that reduce workplace accidents.
Product number: 7 122 05 62 09 0
Details
- Maximum protection of workers by combining numerous safety measures.
- Reduces accidents that are often caused by improper operation or negligence.
- Optimal performance, safe handling, perfect ergonomics and easy operation in any work situation.
- Delivers the same power as an equivalent 1,080-watt corded angle grinder.
- Safe guidance in any work situation with auxiliary handle adjustable in 6 positions.
- Comprehensive protection with two-hand operation with AutoStop (dead man's switch) and permanently mounted auxiliary handle, non-removable safety guard and kickback, as well soft start, restart protection, electronic overload protection and brake function.
- Short setup times with tool-free assembly and setting options like setting the safety guard, assembling the cover for cutting work or changing over the consumable materials with the rapid-clamping nut.
- The proven, fully reliable brushless FEIN PowerDrive motors ensure the longest possible service life.
- A completely closed motor housing protects the motor against aggressive ceramic and mineral dusts. Dust-protected, separate motor electronics in the grip area.
- Ideal for any application. Optimal speeds, matched to many grinding materials. Variable speed to match grinding wheel RPM requirements.
- High-performance. 30% more efficient than comparable universal motors with 1,080 watts of input power.
- Maintenance-free motor with innovative cooling fins for optimal heat dissipation including temperature monitoring.
- Smooth running and vibration-free operation through the standalone motor—decoupled from the housing—and four additional vibration dampers.
- Low-fatigue working with its slim grip, compact design and low weight with good balance.
- Perfectly equipped for any application. Mobile work with the L-BOXX system.
- Compatible with all CORE 18 V AMPShare batteries and chargers, for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless tools.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
- CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Motor
brushless
No load speed
2,500 - 8,500 rpm
Grinding wheel Ø
5 [125] in[mm]
Elastic backing pad Ø
5 [125] in[mm]
Mounting thread
5/8-11 in
Weight incl. battery
7.28 [3.30] lbs[kg]
Weight without battery
5.07 [2.30] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
80 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
91 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
94 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
8,8 m/s²
Vibration value 2 αhv 3-way
2,1 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 tool-free quick-action clamping nut
- 1 wrench
- 1 protective cover for cutting work
- 2 CORE 18 V 8.0 Ah battery pack
- 1 GAL18 V-160 AS rapid charger
- 1 plastic carrying case (L-BOXX 238)
Application
Product feature
- Brake
- Soft-start
- Jam monitoring
- Electronic overload protection
- Electronic speed selection
- AutoStop dead man's switch
